6.2.1 IR Local Control and Pass-through, Example One
The configuration is shown in

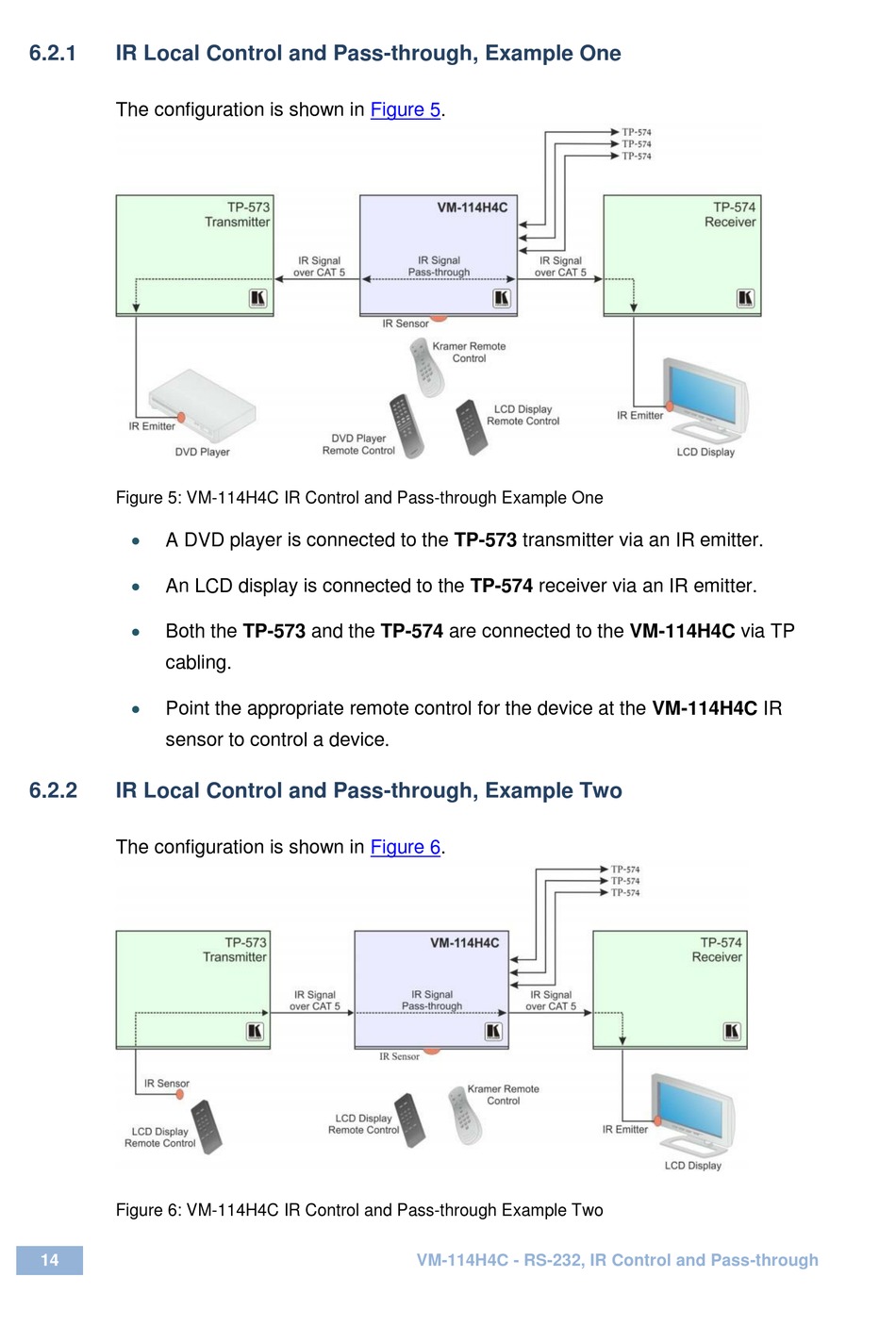

Figure 5: VM-114H4C IR Control and Pass-through Example One


A DVD player is connected to the TP-573 transmitter via an IR emitter.

An LCD display is connected to the TP-574 receiver via an IR emitter.

Both the TP-573 and the TP-574 are connected to the VM-114H4C via TP
cabling.

Point the appropriate remote control for the device at the VM-114H4C IR
sensor to control a device.
6.2.2 IR Local Control and Pass-through, Example Two
The configuration is shown in

Figure 6: VM-114H4C IR Control and Pass-through Example Two

14
Figure 5.
Figure 6.
VM-114H4C - RS-232, IR Control and Pass-through
