6.3
Wiring the TP LINE IN / LINE OUT RJ-45 Connectors
This section defines the TP pinout, using a straight pin-to-pin cable with RJ-45
connectors.
EIA /TIA 568B
PIN
1
2
3
4
5
6
7
8
16
Note, that the cable ground shielding must be connected / soldered to
the connector shield.
Wire Color
Orange / White
Orange
Green / White
Blue
Blue / White
Green
Brown / White
Brown

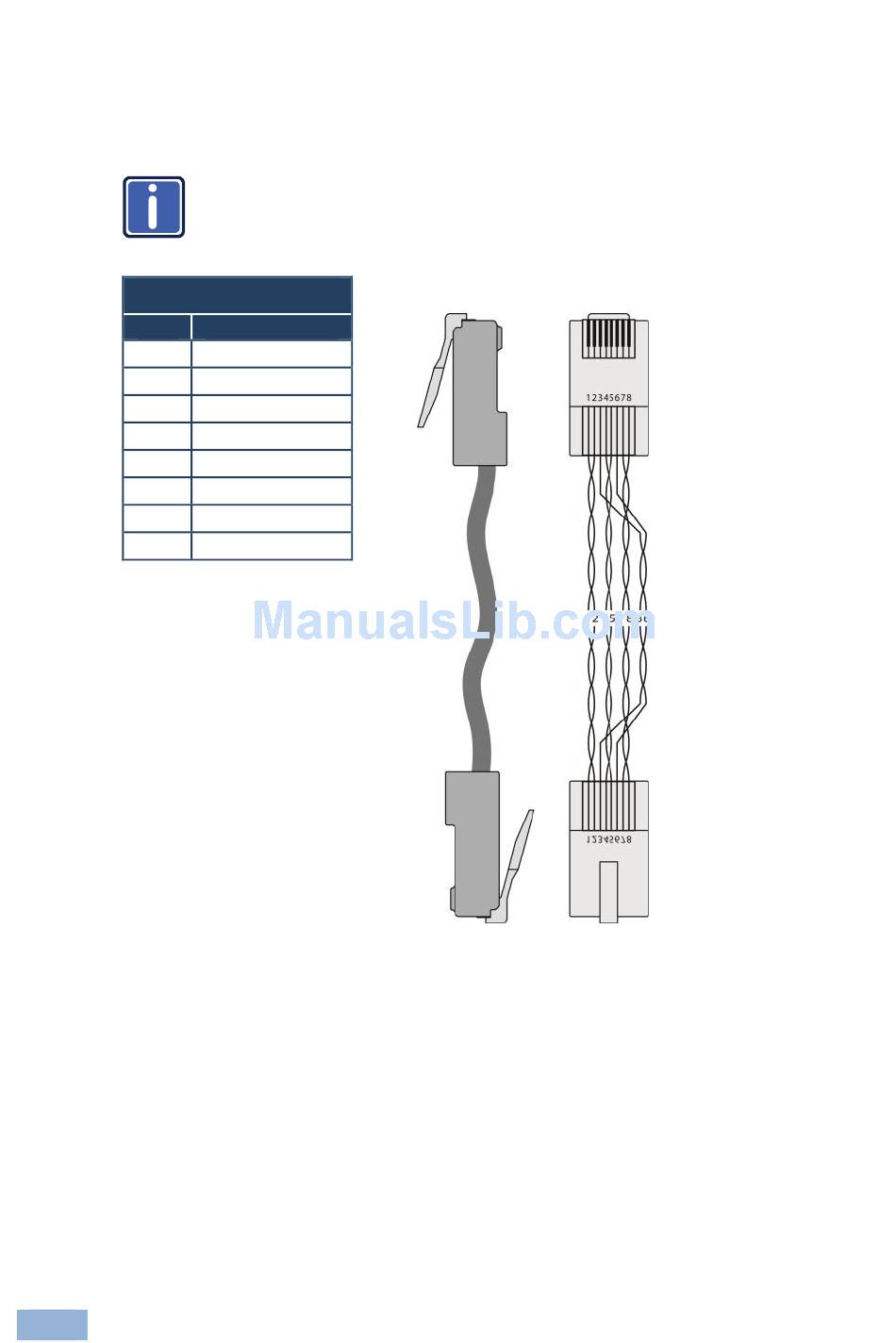

Figure 8: TP PINOUT
VM-114H4C - RS-232, IR Control and Pass-through
