Summary of Contents for Kramer VM-5ARII
-
Page 1: User Manual

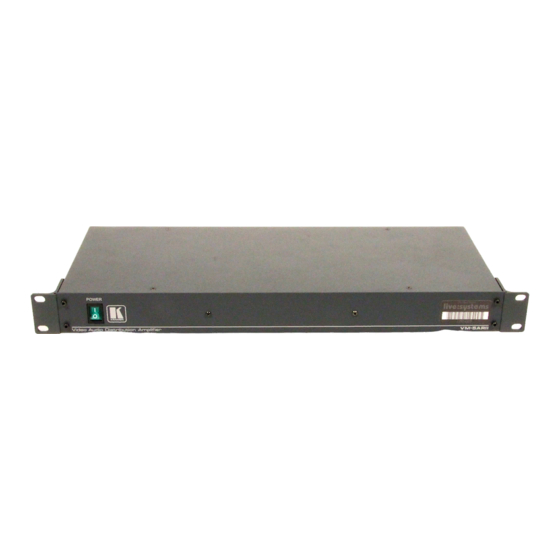

Kramer Electronics, Ltd. Preliminary USER MANUAL Models: VM-5ARII, Video Audio Distribution Amplifier VM-20ARII, 1:20 Programmable Video Audio Distributor VM-1411, 1:10 Video/Audio Distributor... -
Page 2: Table Of Contents
Your VM-20ARII 1:20 Programmable Video Audio Distributor Your VM-1411 1:10 Video/Audio Distributor Installing the VM-20ARII in a Rack Connecting the Distribution Amplifiers Connecting the VM-5ARII Video Audio Distribution Amplifier Connecting the VM-20ARII Video Audio Distributor Connecting the VM-1411 1:10 Video/Audio Distributor Technical Specifications... -
Page 3: Introduction
2 We recommend that you use only the power cord supplied with this device 3 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com 4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... - Page 4 Avoid interference from neighboring electrical appliances that may adversely influence signal quality and position your Kramer product away from moisture, excessive sunlight and dust 1 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com KRAMER: SIMPLE CREATIVE TECHNOLOGY...
-
Page 5: Quick Start
Getting Started Quick Start This quick start chart summarizes the basic setup and operation steps. - Page 6 Getting Started KRAMER: SIMPLE CREATIVE TECHNOLOGY...
-
Page 7: Overview
Overview Overview This section gives an overview of the: VM-5ARII Video Audio Distribution Amplifier, see section 3 .1 VM-20ARII 1:20 Programmable Video Audio Distributor, see section 3 .2 VM-1411 1:10 Video/Audio Distributor, see section 3 .3... -
Page 8: The Vm-1411 1:10 Video/Audio Distributor
Standard 19” 1U rack mount size Your Distributors This section defines your: VM-5ARII Video Audio Distribution Amplifier, see section 4 .1 VM-20ARII 1:20 Programmable Video Audio Distributor, see section 4 .2 VM-1411 1:10 Video/Audio Distributor, see section 4 .3... -
Page 10: Your Vm-20Arii 1:20 Programmable Video Audio Distributor
Your Distributors Table 1: VM-5ARII Video Audio Distribution Amplifier Features Feature Function Illuminated Power Switch Illuminated switch for turning the unit ON or OFF VIDEO IN BNC Connector Connects to the video source 75/Hi-Z Pushbutton Press in for input 75 termination, release for no... -
Page 12: Your Vm-1411 1:10 Video/Audio Distributor
HI-Z for looping (down) AC/DC Switches Select DC (up) or AC (down) (IN1-IN4) coupling Table 3: VM-20ARII Underside Features Figure 3: VM-20ARII Underside Your VM-1411 1:10 Video/Audio Distributor Figure 4 and Table 4 define the VM-1411. KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 14: Table 4: Vm-1411 Functions
Your Distributors Table 4: VM-1411 Features Feature Function Illuminated Power Switch Illuminated switch for turning the unit ON or OFF L AUDIO Trimmer (B) Controls audio level of left channel B R AUDIO Trimmer (B) Controls audio level of right channel B AUDIO MODE (2 x 1:5, 1:10) Selects either 1:10 or 2 x 1:5 audio operation: Pushbutton... -
Page 15: Installing The Vm-20Arii In A Rack
5. The machine is earthed (grounded) in a reliable way power and is connected only to an electricity socket with If you are using a Kramer rack grounding. Pay particular attention to situations where adapter kit (for a machine that is not electricity is supplied indirectly (when the power cord 19"), see the Rack Adapters user... -
Page 16: Connecting The Distribution Amplifiers
7. If needed, adjust the VIDEO GAIN or EQ controls or the AUDIO GAIN on the front panel. 1 Switch OFF the power on each device before connecting it to your VM-5ARII. After connecting, switch on the VM-5ARII power and then switch on the power on each device... -
Page 17: Figure 5: Connecting The Vm-5Arii
Connecting the Distribution Amplifiers Figure 5: Connecting the VM-5ARII... -
Page 18: Connecting The Vm-20Arii Video Audio Distributor
Connecting the Distribution Amplifiers Connecting the VM-20ARII Video Audio Distributor To connect the VM-20ARII, as shown in the example in Figure 6, do the following 1. Connect up to 4 input video sources (for example, composite video players) to the VIDEO INPUTS 1 to 4 BNC connectors. 2. -
Page 19: Figure 6: Connecting The Vm-20Arii
Connecting the Distribution Amplifiers Figure 6: Connecting the VM-20ARII... -
Page 20: Connecting The Vm-1411 1:10 Video/Audio Distributor
Connecting the Distribution Amplifiers Connecting the VM-1411 1:10 Video/Audio Distributor To connect the VM-1411, as shown in the example in Figure 7, do the following 1. Connect up to 2 input video sources (for example, composite video players) to the VIDEO IN A and VIDEO IN B BNC connectors. 2. -
Page 21: Figure 7: Connecting The Vm-1411
Connecting the Distribution Amplifiers Figure 7: Connecting the VM-1411... -
Page 22: Technical Specifications
Technical Specifications The technical specifications of the distribution amplifiers are shown in Table 5, Table 6, and Table 7: Table 5: VM-5ARII Technical Specifications INPUT: 1 video, composite or single component, looping, 1Vpp/75 on BNC connectors with termination switch; 1 audio stereo looping, +4dBu/50k on RCA connectors OUTPUT: 5 video, composite or single component, 1 Vpp/75... -
Page 23: Table 6: Vm-20Arii Technical Specifications
19” x 7” x 1U W, D, H, rack mountable WEIGHT: 2.9kg (6.4lbs) approx ACCESORIES: Power cord OPTIONS : Kramer 3.5mm to IR Emitter Control Cable (C-A35/IRE-10); Kramer 3.5mm to Dual IR Emitter Control Cable (C-A35/2IRE- 10); 15 meter and 20 meter IR emitter extension cables... - Page 25 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
