Summary of Contents for Kramer VM-10HD
-
Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL VM-10HD 1:10 HD/SD – SDI Distribution Amplifier... -
Page 2: Table Of Contents
Technical Specifications Figures Figure 1: VM-10HD HD/SD - SDI Distribution Amplifier Figure 2: Connecting the VM-10HD 1:10 HD/SD - SDI Distribution Amplifier Tables Table 1: VM-10HD 1:10 HD/SD - SDI Distribution Amplifier Features Table 2: Technical Specifications of the VM-10HD... -
Page 3: Introduction
3 Standard Definition (SD) means an NTSC or PAL compatible video format, consisting of 480 (for NTSC) or 576 (for PAL) lines of interlaced video 4 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com 5 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com Introduction , which are clearly defined... - Page 4 Getting Started HD/SD SDI Camera HD/SD SDI Display 1 HD/SD SDI Display 10 KRAMER: SIMPLE CREATIVE TECHNOLOGY...
-
Page 5: Overview

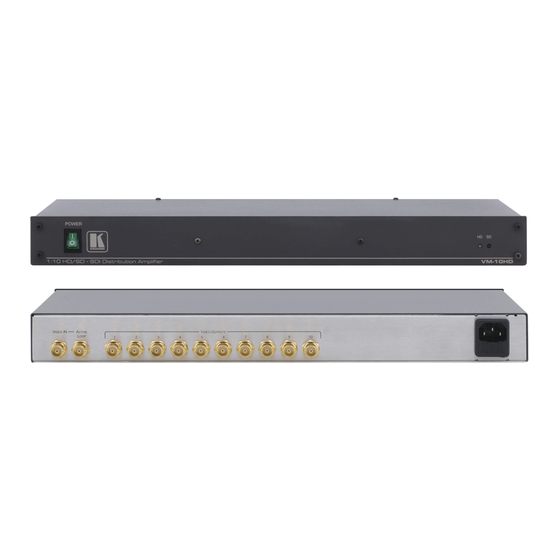

Avoid interference from neighboring electrical appliances and position your Kramer VM-10HD away from moisture, excessive sunlight and dust Your VM-10HD 1:10 HD/SD - SDI Distribution Amplifier Figure 1 and Table 1 define the VM-10HD 1:10 HD/SD - SDI Distribution Amplifier: Overview... -
Page 7: Table 1: Vm-10Hd 1:10 Hd/Sd - Sdi Distribution Amplifier Features
Your VM-10HD 1:10 HD/SD - SDI Distribution Amplifier Table 1: VM-10HD 1:10 HD/SD - SDI Distribution Amplifier Features Feature POWER Switch VIDEO IN BNC connector ACTIVE LOOP BNC connector VIDEO OUTPUTS BNC connectors Connects to the SDI acceptors (from 1 to 10) -
Page 8: Installing The Vm-10Hd On A Rack
Always mount the machine in the rack before you attach any cables or connect the machine to the power If you are using a Kramer rack adapter kit (for a machine that is not 19"), see the Rack Adapters user manual for... -
Page 9: Connecting The Vm-10Hd 1:10 Hd/Sd - Sdi Distribution Amplifier
Connecting the VM-10HD 1:10 HD/SD - SDI Distribution Amplifier Connecting the VM-10HD 1:10 HD/SD - SDI Distribution Amplifier To connect the VM-10HD, as the example in Figure 2 illustrates, do the following: Connect an HD-SDI/SD-SDI video source (for example, an SDI camera) to the VIDEO IN BNC connector. -
Page 10: Technical Specifications
WEIGHT: ACCESSORIES: 1 Specifications are subject to change without notice Technical Specifications of the VM-10HD 1 SMPTE-259M, 292M, 344M serial video, 75 ohms on a BNC connector 11 equalized and reclocked SMPTE-259M, 292M, 344M outputs, 75 ohms on BNC connectors 800mVpp /75 ohms 1.485Gbps... - Page 11 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 12 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
