An IR sensor is connected to the TP-573 transmitter.

An LCD display is connected to the TP-574 receiver via an IR emitter.

Both the TP-573 and the TP-574 are connected to the VM-114H4C via TP
cabling.

Point the LCD display remote control either at the TP-573 IR sensor or at the
VM-114H4C IR sensor to control the LCD display. Point the Kramer remote
control at the VM-114H4C IR sensor to control the VM-114H4C.
6.2.3 IR Local Control and Pass-through, Example Three

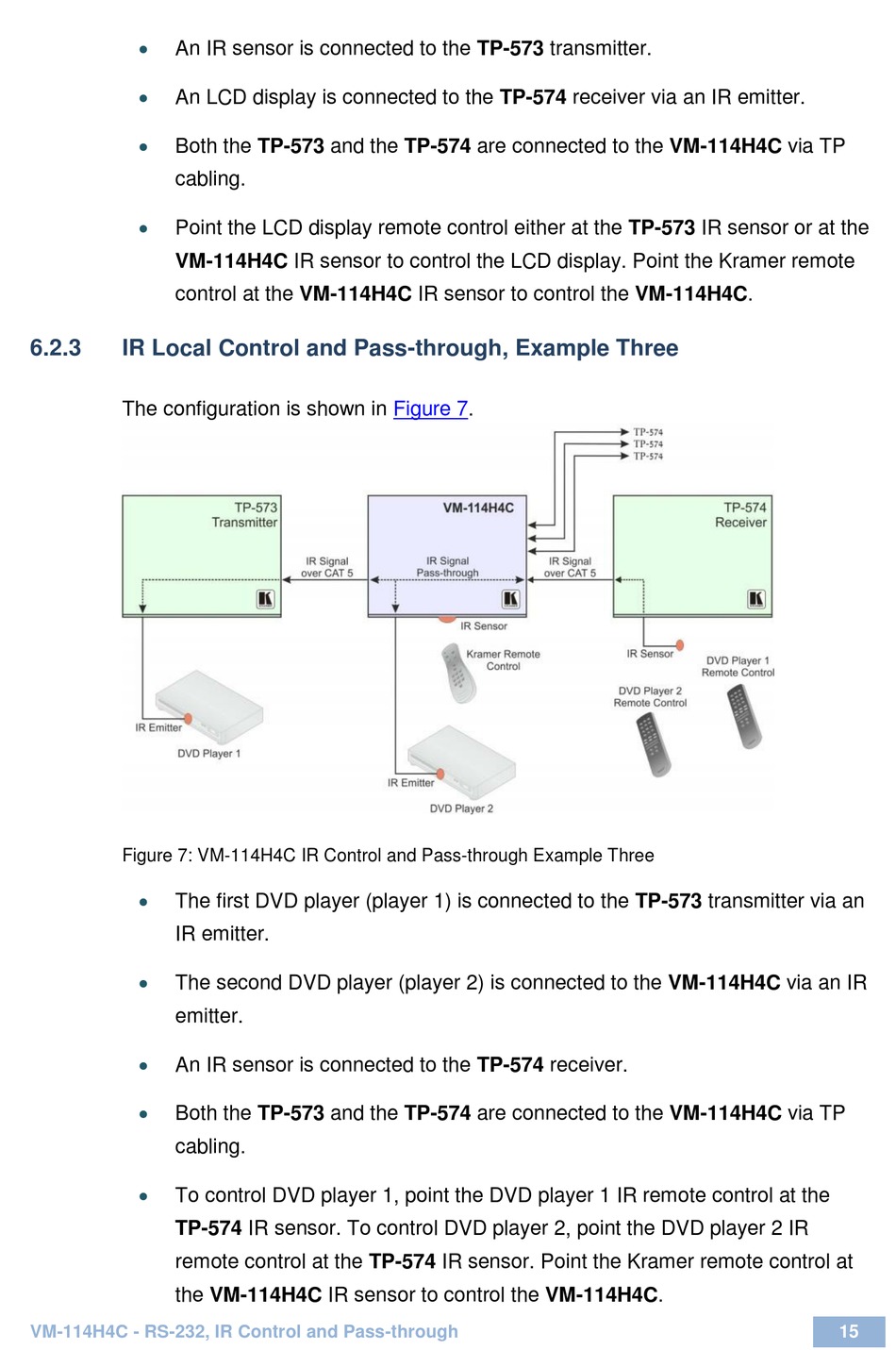

The configuration is shown in

Figure 7: VM-114H4C IR Control and Pass-through Example Three


The first DVD player (player 1) is connected to the TP-573 transmitter via an
IR emitter.

The second DVD player (player 2) is connected to the VM-114H4C via an IR
emitter.

An IR sensor is connected to the TP-574 receiver.

Both the TP-573 and the TP-574 are connected to the VM-114H4C via TP
cabling.

To control DVD player 1, point the DVD player 1 IR remote control at the
TP-574 IR sensor. To control DVD player 2, point the DVD player 2 IR
remote control at the TP-574 IR sensor. Point the Kramer remote control at
the VM-114H4C IR sensor to control the VM-114H4C.
