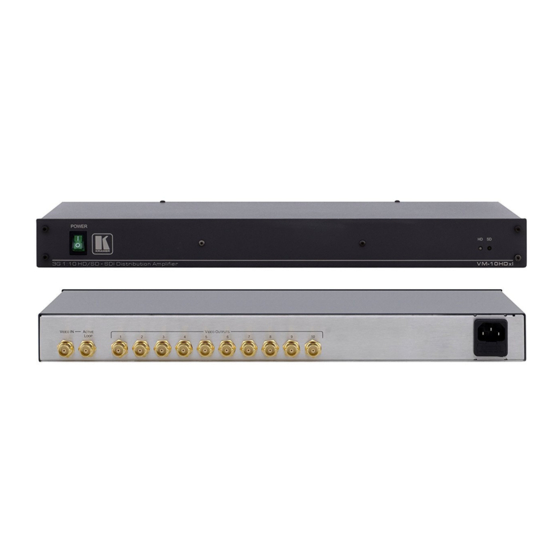

3g 1:10 hd/sd – sdi distribution amplifier
Hide thumbs Also See for VM-10HDxl:

Advertisement

Quick Links

K R A ME R E LE CT R O N IC S L TD .

USER MANUAL

MODEL:
VM-10HDxl
3G 1:10 HD/SD – SDI
Distribution Amplifier
P/N: 2900-000380 Rev 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VM-10HDxl and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kramer VM-10HDxl

  • Page 1: User Manual

    K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: VM-10HDxl 3G 1:10 HD/SD – SDI Distribution Amplifier P/N: 2900-000380 Rev 2...
  • Page 3: Table Of Contents

    Connecting the VM-10HDxl Technical Specifications Figures Figure 1: VM-10HDxl 3G 1:10 HD/SD – SDI Distribution Amplifier Front Panel Figure 2: VM-10HDxl 3G 1:10 HD/SD – SDI Distribution Amplifier Rear Panel Figure 3: Connecting the VM-10HDxl 3G 1:10 HD/SD – SDI Distribution Amplifier...
  • Page 4: Introduction

    Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products. Congratulations on purchasing your Kramer VM-10HDxl 3G 1:10 HD/SD – SDI Distribution Amplifier, which is ideal for the following typical applications: ...
  • Page 5: Getting Started

    Achieving the Best Performance To achieve the best performance:  Use only good quality connection cables (we recommend Kramer high- performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables) ...
  • Page 6: Safety Instructions

    Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.
  • Page 7: Overview

    Overview The VM-10HDxl 3G 1:10 HD/SD - SDI Distribution Amplifier is a high performance 1:10 distributor for all SDI video signals. In particular, the VM-10HDxl features:  One input and 10 identical outputs on BNC connectors  A maximum data rate of up to 3Gbps – enabling it to be used for standard...
  • Page 8: Figure 1: Vm-10Hdxl 3G 1:10 Hd/Sd - Sdi Distribution Amplifier Front Panel

    Figure 1: VM-10HDxl 3G 1:10 HD/SD – SDI Distribution Amplifier Front Panel Feature Function POWER Switch Illuminated switch for turning the unit ON or OFF HD LED Blue LED illuminates when the SDI signal is HD High Definition (HD) means a video format, consisting of either 720 active lines of progressive video or 1080...
  • Page 9: Figure 2: Vm-10Hdxl 3G 1:10 Hd/Sd - Sdi Distribution Amplifier Rear Panel

    Figure 2: VM-10HDxl 3G 1:10 HD/SD – SDI Distribution Amplifier Rear Panel Feature Function VIDEO IN BNC connector Connects to the SDI source ACTIVE LOOP BNC connector Connects to an additional unit VIDEO OUTPUTS BNC connectors Connects to the SDI acceptors (from 1 to 10)
  • Page 10: Installing In A Rack

    Installing in a Rack This section provides instructions for rack mounting the unit. VM-10HDxl - Installing in a Rack...
  • Page 11: Connecting The Vm-10Hdxl

    HD-SDI/SD-SDI video acceptors (for example, displays). You do not have to connect all the outputs. 3. Connect the power cord (not illustrated in Figure Figure 3: Connecting the VM-10HDxl 3G 1:10 HD/SD – SDI Distribution Amplifier VM-10HDxl - Connecting the VM-10HDxl...
  • Page 12: Technical Specifications

    -40° to +70°C (-40° to 158°F) HUMIDITY: 10% to 90%, RHL non-condensing 19” x 7” x 1U (W, D, H) DIMENSIONS: WEIGHT: 1.5kg (3.3lbs) approx. ACCESSORIES: Power cord, rack "ears" Specifications are subject to change without notice at http://www.kramerelectronics.com VM-10HDxl - Technical Specifications...
  • Page 14 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
