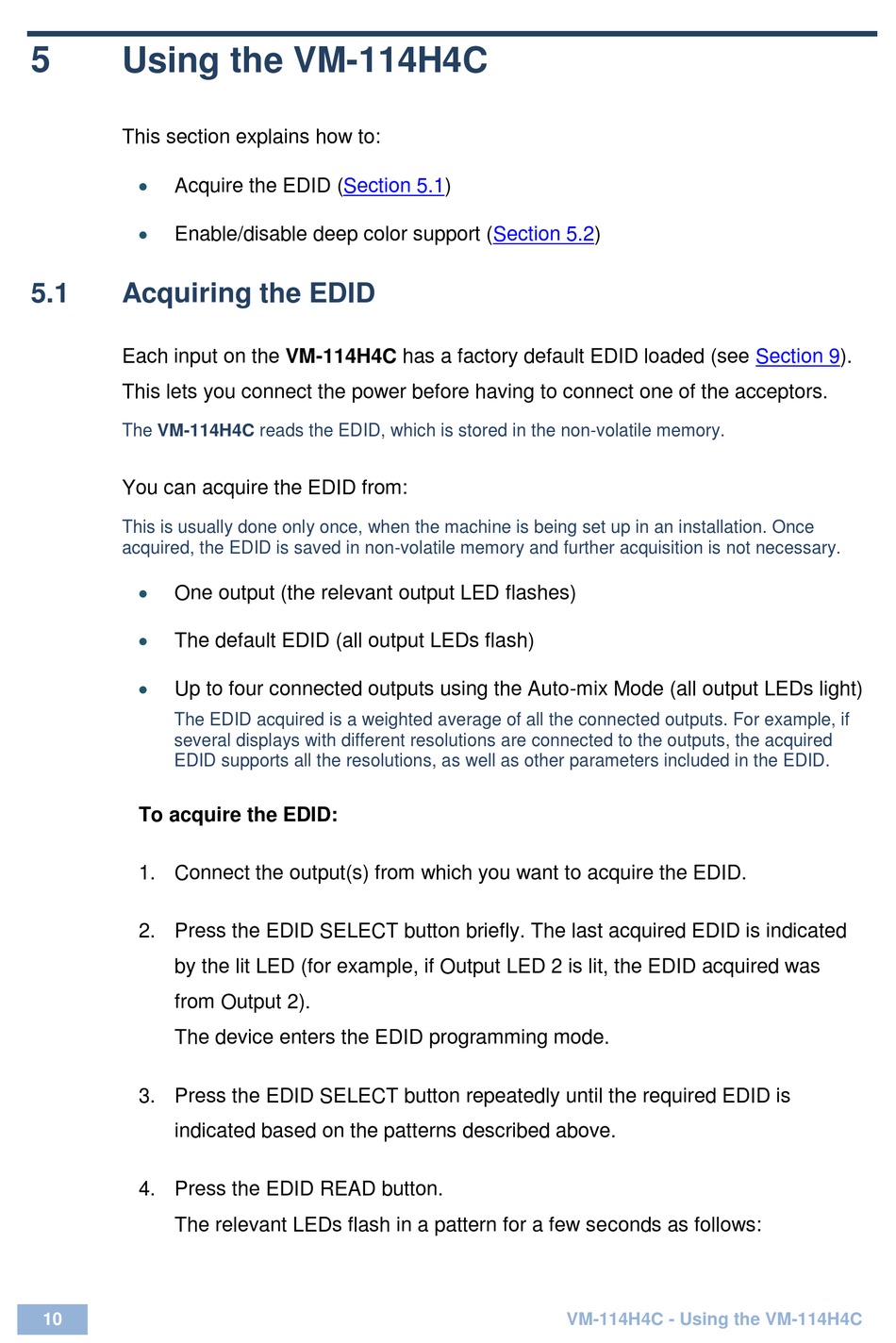

Using the VM-114H4C

This section explains how to:

Acquire the EDID

Enable/disable deep color support
5.1

Acquiring the EDID

Each input on the VM-114H4C has a factory default EDID loaded (see
This lets you connect the power before having to connect one of the acceptors.
The VM-114H4C reads the EDID, which is stored in the non-volatile memory.
You can acquire the EDID from:
This is usually done only once, when the machine is being set up in an installation. Once
acquired, the EDID is saved in non-volatile memory and further acquisition is not necessary.

One output (the relevant output LED flashes)

The default EDID (all output LEDs flash)

Up to four connected outputs using the Auto-mix Mode (all output LEDs light)
The EDID acquired is a weighted average of all the connected outputs. For example, if
several displays with different resolutions are connected to the outputs, the acquired
EDID supports all the resolutions, as well as other parameters included in the EDID.
To acquire the EDID:
1. Connect the output(s) from which you want to acquire the EDID.
2. Press the EDID SELECT button briefly. The last acquired EDID is indicated
by the lit LED (for example, if Output LED 2 is lit, the EDID acquired was
from Output 2).
The device enters the EDID programming mode.
3. Press the EDID SELECT button repeatedly until the required EDID is
indicated based on the patterns described above.
4. Press the EDID READ button.
The relevant LEDs flash in a pattern for a few seconds as follows:
10
(Section 5.1)
(Section 5.2)
VM-114H4C - Using the VM-114H4C
Section 9).
