HD MEMORY CARD CAMERA RECORDER
GY-HM790U
GY-HM790CHU
GY-HM790E
GY-HM790CHE
For Customer Use:
Enter below the Serial No. which is located on the body.
Retain this information for future reference.
Model No.
Serial No.
Downloaded From VideoCamera-Manual.com Manuals

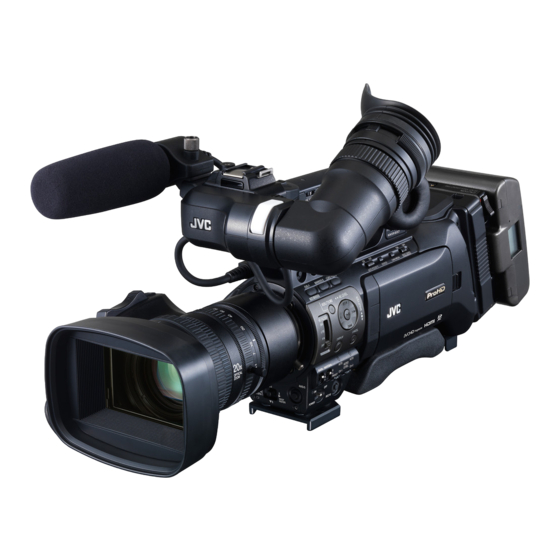

* The illustration shows the GY-HM790E with the supplied viewfinder, microphone and lens attached.
* GY-HM790CHU/GY-HM790CHE does not come with a lens.
GY-HM790U/GY-HM790CHU
INSTRUCTIONS
Please read the following before getting started:
Thank you for purchasing this JVC product.
Before operating this unit, please read the instructions
carefully to ensure the best possible performance.
In this manual, each model number is described without the last letter
(U/E) which means the shipping destination. (U: for USA and Canada,
E: for Europe)
Only "U"models (GY-HM790CHU/GY-HM790U) have been evaluated by
UL.
LST1108-001A
