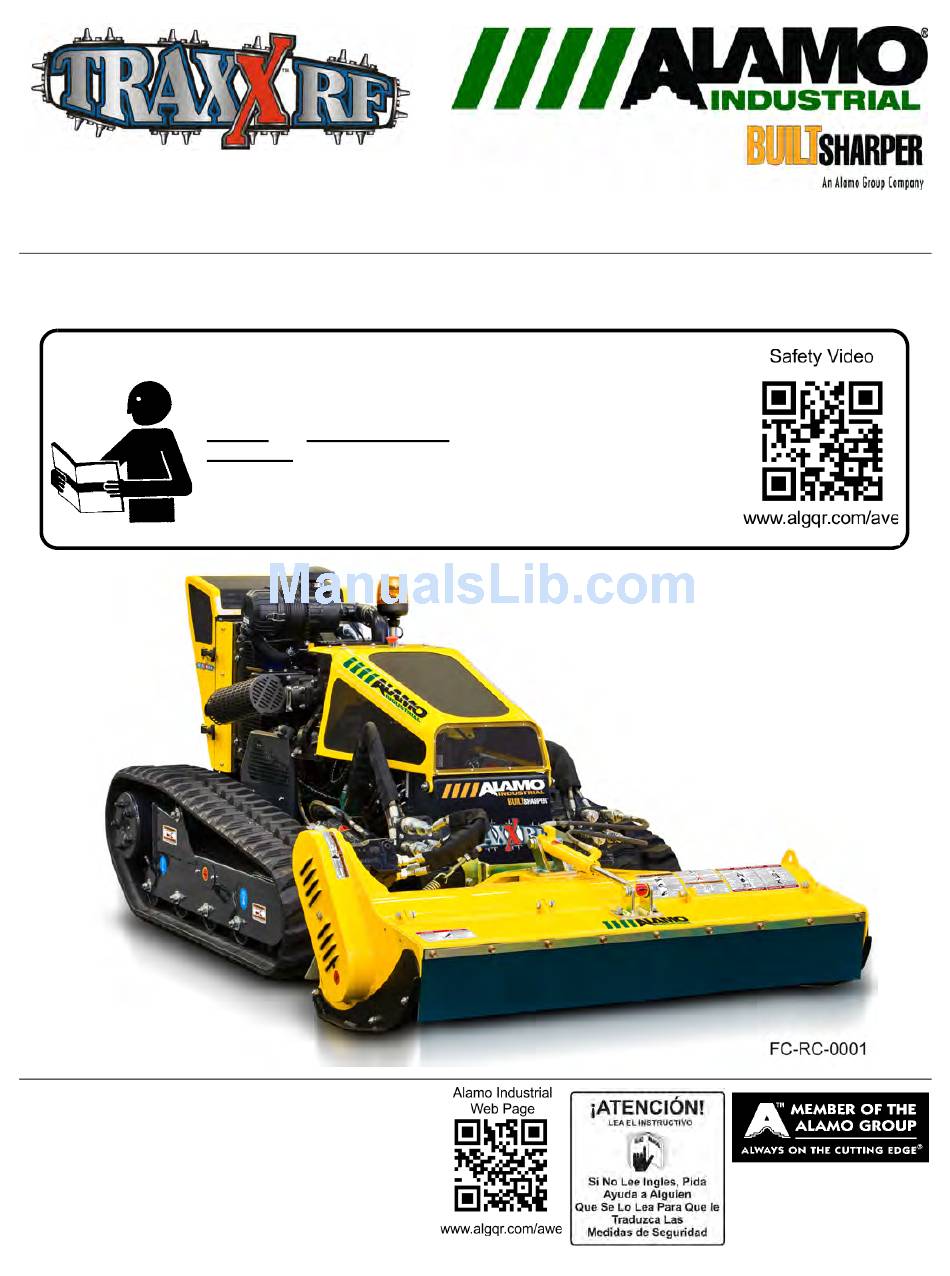

REMOTE CONTROLLED MOWER
Published 04/14
ALAMO INDUSTRIAL
1502 E. Walnut
Seguin, Texas 78155
830-372-3551
Email: parts@alamo-industrial.com
OPERATOR'S MANUAL
This Operator's Manual is an
integral part of the safe operation of
this
machine
and
maintained with the unit at all times.
READ,
UNDERSTAND,
FOLLOW the Safety and Operation
Instructions
contained
manual
before
operating
equipment. C01-Cover_A
®
©2014 Alamo Group Inc.
Important
and Safety Instructions
must
be
are found in the Mower
Safety Video that can
and
be instantly accessed
on
the
in
this
www.algqr.com/ave
the
Part No. TR477144
Operating
internet
at:
$0.00

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Traxx RF and is the answer not in the manual?

Questions and answers

Related Manuals for Alamo Industrial Traxx RF

Summary of Contents for Alamo Industrial Traxx RF

  • Page 1 Safety Video that can READ, UNDERSTAND, be instantly accessed FOLLOW the Safety and Operation internet Instructions contained this www.algqr.com/ave manual before operating equipment. C01-Cover_A ® ALAMO INDUSTRIAL 1502 E. Walnut Seguin, Texas 78155 830-372-3551 Email: parts@alamo-industrial.com ©2014 Alamo Group Inc. $0.00...
  • Page 3 Your Authorized Alamo Industrial Dealer may have shown this video and presented you a DVD Video when you purchased your mower. If you or any mower operator have not seen this video, Watch the Video, Read this Operator’s Manual, and Complete the Video Guidebook before operating your new mower.
  • Page 4 Alamo Industrial Division is willing to provide one (1) AEM Mower Safety Practices Video Please Send Me: VHS Format – AEM/FEMA Mower Operator Safety Video DVD Format – AEM/FEMA Mower Operator Safety Video Mower Operator’s Manual AEM Mower Operator’s Safety Manual...
  • Page 5 Contact your Dealer to explain any instructions that you do not fully understand. The care you give your Alamo Industrial machine will greatly determine your satisfaction with its performance and its service life. Carefully read and follow the instructions in this manual to provide you with a thorough understanding of your new implement and its intended use and service requirements.
  • Page 6 Dealer should inform Purchaser to review the contents of the Operator’s Manual including safety equipment, safe operation and maintenance, to review the Safety Signs on the TRAXX RF Unit and of Purchaser’s responsibility to train his/her operators of safe operation procedures.

  • Page 7: Table Of Contents

    Dash Panel Identification ........................... 4-8 Ignition Panel Warnings ............................. 4-9 Manual Track Control ............................4-10 Driving the TRAXX RF using Wire Drive ......................4-11 EMERGENCY STOP AND SAFETY DEVICES ....................4-12 SETTING THE MOWER ..........................4-13 Cutting Height Adjustment ..........................4-13 Skid Shoe Height Adjustment ..........................
  • Page 8 Tractor Pre-Operation Inspection/Service ......................4-14 Mower Pre-Operation Inspection/Service ......................4-14 Driving and Maneuvering the Machine ......................4-20 Forwards & Backwards Travel (Default Mode) ....................4-20 Forwards & Backwards Travel (Direction Swap Mode) ................... 4-20 Steering Direction Control ..........................4-21 Steering Bios ..............................4-22 Flail Head (Tool) Height Control ........................
  • Page 9 Initial Start-Up Procedures ..........................5-32 FUSES AND RELAYS ............................. 5-33 FUSE PANEL ..............................5-34 TROUBLESHOOTING - ENGINE DOESN’T START ..................5-38 TROUBLESHOOTING - RADIO CONTROL CONNECTION ................5-39 TROUBLESHOOTING - ENGINE REVS BUT IT DOESN’T SPEED UP ............5-40 Proper Torque for Fasteners ..........................5-41...

  • Page 11: Safety Section

    SAFETY SECTION Safety Section 1-1 © 2014 Alamo Group Inc.

  • Page 12: General Safety Instructions And Practices

    NOTE: If you want a translation of this safety section in one of the following Languages, please contact: Translations at 1502 E. Walnut Street Seguin, TX 78155; Fax: (830) 372-9529; Safety Section Translations are available in Spanish, Portuguese, French, German, Russian. PN GS01 TRAXX RF 05/14 Safety Section 1-2 © 2014 Alamo Group Inc.

  • Page 13: Operator Safety

    Do Not operate in areas where bees or insects may attack unless you WEAR PROTECTIVE CLOTHING or use enclosed structure. SAFETY SIGNS: • REPLACE missing, damaged or unreadable safety signs immediately. PN OSRCM-01 TRAXX RF 05/14 Safety Section 1-3 © 2014 Alamo Group Inc.

  • Page 14: Crushing Hazards

    TO AVOID CHILDREN FALLING OFF OR BEING CRUSHED BY EQUIPMENT: • NEVER ALLOW children to play on or around Tractor or Implement. WHEN UNHITCHING IMPLEMENT: • LOWER implement, LOCK or BLOCK lifted parts before leaving equipment. PN CHFM-03 TRAXX RF 05/14 Safety Section 1-4 © 2014 Alamo Group Inc.

  • Page 15: Connecting Or Disconnecting Implement Safety

    STOP TRACTOR ENGINE, place transmission into park, engage parking brake and remove key. WHEN connecting and disconnecting implement hitch: • DO NOT crawl or walk under raised mower or implement. PN CDRCM-03 TRAXX RF 05/14 Safety Section 1-5 © 2014 Alamo Group Inc.

  • Page 16: Sliding Hazard

    TO AVOID SERIOUS INJURY OR DEATH FROM SLIDING OR EQUIPMENT ROLLOVER: Never attempt to operate the TRAXX RF with metal cleats or spiked track on concrete hillsides or hard hillside surfaces. Operation of the spiked or cleated track on concrete or hard surface hillsides could result in sudden and violent loss of traction and control of the machine and may result in serious injury or death.

  • Page 17: Thrown Objects Hazards

    3. INSPECT AREA thoroughly before mowing to REMOVE potential THROWN OBJECT HAZARDS, 4. NEVER ALLOW BLADES to CONTACT SOLID OBJECTS like wire, rocks, post, curbs, guardrails, or ground while mowing. PN TORCM-01 TRAXX RF 05/14 Safety Section 1-7 © 2014 Alamo Group Inc.

  • Page 18: Thrown Objects Hazard (Continued)

    STOP mowing when EXCESSIVE VIBRATION occurs: 1. STOP MOWER BLADES and tractor ENGINE. 2. INSPECT mower for vibration source 3. REPLACE any damage parts and bent or damaged BLADES. PN TORCM-02 TRAXX RF 05/14 Safety Section 1-8 © 2014 Alamo Group Inc.

  • Page 19: Run Over Hazards

    Immediately stop and shutdown the tractor and mower if a bystander comes within 300 feet of the mower. • Never operate the tractor and mower toward motor vehicle traffic. Mow in a direction away from or perpendicular to vehicle traffic. PN RORCM-01 TRAXX RF 05/14 Safety Section 1-9 © 2014 Alamo Group Inc.

  • Page 20: Mower Blade Contact Hazards

    STOP rotating BLADES disengage PTO and wait for blade to stop rotating before raising mower deck or wings • STOP LOOK and LISTEN before approaching the mower to make sure all rotating motion has stopped. PN MBFM-01 TRAXX RF 05/14 Safety Section 1-10 © 2014 Alamo Group Inc.

  • Page 21: High Pressure Oil Leak Hazard

    • Allow oil to cool before removing cap. • Relieve oil pressure before removing cap slowly. • Stay away from hot oil that may spray from tank. PN HPFM-01 TRAXX RF 05/14 Safety Section 1-11 © 2014 Alamo Group Inc.

  • Page 22: Electrical & Fire Hazards

    Do not operate if oil is leaking. Repair oil leak and remove all accumulated oil before operating. • CLEAR any grass clippings or debris buildup around mower hydraulic pumps, valves or tanks. PN EFRCM-01 TRAXX RF 05/14 Safety Section 1-12 © 2014 Alamo Group Inc.

  • Page 23: Hazards With Maintenance Of Implement

    FOLLOW INSTRUCTIONS in maintenance section when replacing hydraulic cylinders to prevent component falling. CLEANING IMPLEMENT • NEVER clean with pressure washer electrical components such as: receiver, remote control, actuator, reversible fan air compressor, fuses and relay box. PN HMRCM-02 TRAXX RF 05/14 Safety Section 1-13 © 2014 Alamo Group Inc.

  • Page 24: Parts Information

    SAFETY PARTS INFORMATION PARTS INFORMATION Alamo Industrial mowers use balanced and matched system components for blade carriers, blades, cuttershafts, knives, knife hangers, rollers, drivetrain components, and bearings. These parts are made and tested to Alamo Industrial specifications. Non-genuine "will fit" parts do not consistently meet these specifications.

  • Page 25: Decal Location

    NOTE: Alamo Industrial supplies safety decals on this product to promote safe operation. Damage to the decals may occur while in shipping, use, or reconditioning. Alamo Industrial cares about the safety of its customers, operators, and bystanders, and will replace the safety decals on this product in the field, free of charge (Some shipping and handling charges may apply).
  • Page 26 Bolt 00017000 Lock washer 0024100 Flatwasher 00776031 Canister (Operator’s Manual) TR477144 Operators Manual D833 DANGER Multi-Language DECALS ON OPTIONAL EQUIPMENT D623 WARNING Thrown Object Hazard D873 IMPORTANT Tow Chain TRAXX RF 05/14 Safety Section 1-16 © 2014 Alamo Group Inc.

  • Page 27: Decal Description

    SAFETY Decal Description TRAXX RF 05/14 Safety Section 1-17 © 2014 Alamo Group Inc.
  • Page 28 SAFETY TRAXX RF 05/14 Safety Section 1-18 © 2014 Alamo Group Inc.
  • Page 29 SAFETY TRAXX RF 05/14 Safety Section 1-19 © 2014 Alamo Group Inc.
  • Page 30 SAFETY TRAXX RF 05/14 Safety Section 1-20 © 2014 Alamo Group Inc.
  • Page 31 SAFETY TRAXX RF 05/14 Safety Section 1-21 © 2014 Alamo Group Inc.
  • Page 32 SAFETY TRAXX RF 05/14 Safety Section 1-22 © 2014 Alamo Group Inc.
  • Page 33 SAFETY TRAXX RF 05/14 Safety Section 1-23 © 2014 Alamo Group Inc.
  • Page 34 SAFETY TRAXX RF 05/14 Safety Section 1-24 © 2014 Alamo Group Inc.

  • Page 35: Federal Laws And Regulations

    Some regulations specify that no one under the age of 16 may operate power machinery. It is your responsibility to know what these regulations are in your own area or situation. (Refer to U.S. Dept. of Labor, Employment Standard Administration, Wage & Home Division, Child Labor Bulletin #102.) TRAXX RF 05/14 Safety Section 1-25 © 2014 Alamo Group Inc.
  • Page 38 Contents Acknowledgment ......2 Foreword ........2 Safety Alerts.

  • Page 39: Safety Alerts

    Safety Alerts Symbol Signal Words This Safety Alert Symbol means: “ATTENTION! Signal words are distinctive words that will typically be STAY ALERT! YOUR SAFETY IS INVOLVED!” found on safety signs on the mower and other worksite equipment. These words may also be found in this The Safety Alert Symbol identifi es important safety manual and the manufacturer’s manuals.

  • Page 40: The Industrial/Agricultural Mower

    The Industrial/Agricultural Mower Industrial/Agricultural Mower Types Mowers are used for pasture clipping, crop residue shredding, heavy brush cutting, waterways, right-of- Flail ways, roadside or highway mowing. Also, these mowers are used for cutting grass and other growth in public areas such as parks and cemeteries. Boom Rotary Sickle Bar...

  • Page 41: Follow A Safety Program

    Follow A Safety Program Protect Yourself Wear personal protective clothing and Personal Protective Equipment (PPE) issued to you or called for by job conditions. You must ALWAYS wear safety glasses with side shields. You may also need: — Hard hat —...
  • Page 42 Follow A Safety Program Avoid Injury From Raised Equipment Avoid Injury From High Pressure Fluid Avoid possible crushing injury from falling mower or Avoid fl uid injection injury due to high pressure fl uid leaks. other raised equipment. High Pressure Fluid Can Inject into the Body Avoid Crushing –...
  • Page 43 Follow A Safety Program Be Alert! For Safe Operation Know where to get assistance. Know how to use a fi rst You must be a qualifi ed and authorized operator for aid kit and fi re extinguisher/fi re suppression system. proper operation of your machine.
  • Page 44 Follow A Safety Program Some Rules You Must Work By (continued) Keep — Only qualifi ed and authorized individuals may operate Children this equipment. Away from — Never allow children to play on, ride on or operate Equipment the equipment. Children are not qualifi ed to operate this equipment.

  • Page 45: Prepare For Safe Operation

    Prepare For Safe Operation Check The Mower And Tractor Equipment Before beginning your work day inspect the machine Walk-Around and have all systems in good operational condition. Inspection WARNING! Prevent possible crushing injury from falling equipment. Hydraulic system or part failure could cause unsupported equipment to fall.
  • Page 46 Prepare For Safe Operation Know The Work Area Correct unsafe conditions. Do not operate in problem areas where debris and obstacles cannot be removed Before you operate the mower thoroughly inspect or marked. the work area. Walk around the area and inspect the Analyze mowing area to determine: surfaces you will travel on when using the mower.
  • Page 47 Prepare For Safe Operation Tractor And Mower Controls Safety Test — Raise and lower mower to check for driveline bottoming out or engagement problems. Start the tractor following the specifi c procedures in the — Check the equipment for excessive vibration and manufacturer’s operator’s manual.
  • Page 48 Prepare For Safe Operation Hitching Mower To Tractor Read and Three-point hitch-mounted mowers: Understand Manuals Before — Refer to mower and tractor manufacturers’ manuals. Operating — Place tractor’s hydraulic power lift (rockshaft) selector lever in down position to avoid unexpected movement.

  • Page 49: Start Safely

    Start Safely Make The Right Start Mow only in daylight or good artifi cial light conditions. Rotating Blades – Avoid serious injury or death from mower-thrown Keep Away objects or blade contact: — Keep chain shields, fl exible or solid defl ector shields or discharge chutes in place and in good repair.
  • Page 50 Operate Safely Mower-Thrown Objects (continued) Disc Mowers — When using a disc mower it is Do Not Mow important to know the area to be mowed. If the operator in Reverse has mowed the fi eld before and is familiar with all obstacles that may be present, it is suffi cient to watch ahead of the mower path for any additional objects that may have entered the fi eld.
  • Page 51 Operate Safely Under Mount Mower Safety Practices When mowing with an under mount mower: Never Stand — Keep removable discharge chute in place and over on Mower – Keep Away discharge opening. — Never stand on a mower housing when the tractor engine is operating.
  • Page 52 Operate Safely Wing And Side Mount Mowers Safety Practices 300 ft (92 m) Raised wing positions reduce shielding protection and Keep Bystanders increases the thrown object and blade contact hazard Away from risks. Mowing Area Avoid possible serious injury or death by thrown objects or blade contact from raising and lowering wings during mowing operations: —...
  • Page 53 Operate Safely Uneven Terrain Mowing Safety Practices (continued) Maintain — Use extreme care to maintain control over the Control, Use Low equipment when operating in these conditions. Speeds — Increase tractor stability by adding wheel weights, ballast and increasing wheel spacing to maximum. Refer to operator’s manual for recommendations.

  • Page 54: Park Safely

    Park Safely Parking Safety Practices — Use designated or out-of-traffi c areas. — Use fi rm level ground locations. Parking Brake — Set parking brake. — Lower raised equipment to ground. Shut down the mower and tractor using proper equipment shut down practice before dismounting tractor.

  • Page 55: Perform Maintenance Safely

    Shut Down Safely Dismounting Properly — Never dismount from moving equipment. Wait for — Never jump from any machines. Moving Parts to Stop — Dismount carefully. — Check for slippery steps. — Keep feet and hands away from controls. — Use handholds and steps during dismount. —...
  • Page 56 Perform Maintenance Safely Prepare Yourself Wear personal protective clothing and Personal Protective Equipment (PPE) issued to you or called for by job conditions. You must ALWAYS wear safety glasses with side shields. You may also need: — Hard hat — Safety shoes —...
  • Page 57 Perform Maintenance Safely Prepare The Machine — Securely support, block up, or lock up mower wings with approved locking devices before working near or Stored energy sources (electrical, mechanical, hydraulic, underneath a wing mower. pneumatic, chemical, thermal, etc.) must be controlled —...
  • Page 58 Perform Maintenance Safely Perform Maintenance Safely Use Proper Ventilation Make sure the hoists or jacks you use are in good repair. Never use jacks with cracked, bent, or twisted parts. If it is necessary to run an engine in an enclosed area, Never use frayed, twisted or pinched cables.
  • Page 59 Perform Maintenance Safely Hydraulic System Hazards When venting or fi lling the hydraulic system, loosen the fi ller cap slowly and remove it gradually. The hydraulic system is under pressure whenever the Never reset any relief valve in the hydraulic system to a engine is operating and may hold pressure even after the pressure higher than recommended by the manufacturer.
  • Page 60 Perform Maintenance Safely Avoid Explosion — Observe the polarity of the batteries and connections. — Make the fi nal cable connection to the engine or the WARNING! Avoid possible serious injury from furthest ground point away from the battery. Never explosion.
  • Page 61 Perform Maintenance Safely Tire And Wheel Maintenance (continued) Never cut or weld on a wheel with an infl ated tire mounted on it. This could cause explosive WARNING! The types of wheels and tires usually decompression. found on this equipment require special care when Check that the tire size and wheel are correctly matched.

  • Page 62: Final Word To The User

    Perform Maintenance Safely Mower Blade Maintenance (continued) — Avoid bending blades. Help prevent mower blades from bending or cracking by avoiding contact with — How are mower blades made? solid objects. Mower blades are intended to cut Mower blades are made of high strength alloy spring grass, shrubs, woody vegetation, and small trees and steel.

  • Page 64: Reconocimiento

    Contenido Reconocimiento ....... 2 Introducción ........2 Alertas de seguridad .

  • Page 65: Alertas De Seguridad

    Alertas de seguridad Símbolo Palabras indicativas Este símbolo de alerta de seguridad signifi ca: Las palabras indicativas son palabras distintivas que “¡ATENCIÓN! ¡MANTÉNGASE ALERTA! ¡SU típicamente se encontrarán en letreros de seguridad SEGURIDAD ESTÁ EN RIESGO!” de la cortadora de césped y otros equipos del sitio de trabajo.

  • Page 66: Cortadora De Césped Industrial/Para Agricultura

    Cortadora de césped industrial/para agricultura Tipos de cortadora de césped industrial/para agricultura Las cortadoras de césped se usan para recortar pasturas, Triturador desmenuzar residuos de cultivos, cortar arbustos, realizar desbroce pesado, cortar la hierba en vías de agua, derechos de paso, costados de caminos o autopistas. Además, estas cortadoras se usan para cortar la hierba y otras plantas en zonas públicas como parques y cementerios.

  • Page 67: Cumplimiento Del Programa De Seguridad

    Cumplimiento del programa de seguridad Protéjase a sí mismo Use la ropa de protección personal y los equipos de protección personal (PPE) que se le proporcionen o que requieran las condiciones del trabajo. SIEMPRE debe usar gafas de seguridad con escudos laterales. Puede necesitar también: —...
  • Page 68 Cumplimiento del programa de seguridad Evite las lesiones provocadas por equipos elevados Si un fl uido se inyecta en la piel, debe ser extraído dentro de pocas horas por personal médico Evite posibles lesiones de aplastamiento por caídas de la familiarizado con este tipo de lesión.
  • Page 69 Cumplimiento del programa de seguridad ¡Manténgase alerta! Para una operación segura Sepa dónde obtener asistencia. Sepa cómo usar un Usted debe ser un operador cualifi cado y autorizado equipo de primeros auxilios y un extintor de incendios/ para operar la máquina correctamente. Debe comprender sistema de supresión de fuego.
  • Page 70 Cumplimiento del programa de seguridad Algunas reglas que debe cumplir al trabajar (continuación) Mantenga — Únicamente personas cualifi cadas y autorizadas a los niños alejados pueden manejar estos equipos. de los equipos — Nunca permita que los niños jueguen en los equipos, viajen en ellos o los hagan funcionar.

  • Page 71: Preparación Para Una Operación Segura

    Preparación para una operación segura Revise los equipos de la cortadora de césped y el marcadas; incluya los pernos y sujetadores de las hojas. Nunca enderece o suelde en las hojas. tractor — Asegúrese de que el escudo para objetos que son Antes de comenzar la jornada de trabajo, inspeccione la arrojados se encuentre correctamente instalado y en buen máquina y asegúrese de que todos los sistemas estén en...
  • Page 72 Preparación para una operación segura Familiarícese con la zona de trabajo Corrija las condiciones no seguras. No opere en áreas con problemas donde no se puedan retirar o marcar los Antes de hacer funcionar la cortadora de césped, residuos y los obstáculos. inspeccione cuidadosamente la zona de trabajo.
  • Page 73 Preparación para una operación segura Prueba de seguridad de los controles del tractor y de la cortadora de césped Use el ROPS Arranque el tractor siguiendo los procedimientos y el cinturón de seguridad específi cos del manual del operador del fabricante. Estos procedimientos normalmente incluyen: —...
  • Page 74 Preparación para una operación segura Enganche de la cortadora de césped al tractor Lea y asegúrese Cortadoras montadas en enganche de tres puntos: de comprender los — Consulte los manuales de los fabricantes de la manuales antes de comenzar la cortadora y del tractor.

  • Page 75: Arranque Con Seguridad

    Arranque con seguridad Cómo realizar un arranque correcto Corte la hierba únicamente con luz diurna o en condiciones de buena luz artifi cial. Hojas giratorias – Manténgase Evite lesiones graves o muerte producidas por objetos arrojados por la cortadora o por el contacto con las hojas: —...
  • Page 76 Operación con seguridad Objetos arrojados por la cortadora de césped Apague la TDF, espere que las hojas dejen de girar, eleve la cortadora y, después, retroceda. (continuación) Corte desplazándose en sentido de avance. Cortadoras de disco — Cuando se usa una cortadora de disco, es importante conocer la zona donde se va a cortar.
  • Page 77 Operación con seguridad Prácticas de seguridad para la cortadora de césped de montaje inferior Nunca se pare sobre la cortadora Cuando se traslada con una cortadora de césped de de césped – montaje inferior: Manténgase alejado — Mantenga la rampa de descarga extraíble en su lugar y por encima de la abertura de descarga.
  • Page 78 Operación con seguridad Prácticas de seguridad para cortadoras de 300 ft césped con laterales y montaje lateral (92 m) Mantenga a las personas ajenas Las posiciones elevadas de los laterales reducen la alejadas de la zona protección de los escudos y aumentan los riesgos de de corte objetos arrojados y contacto con las hojas.
  • Page 79 Operación con seguridad Prácticas de seguridad para trabajos de corte en terrenos desparejos (continuación) Mantenga — Use extremo cuidado para mantener el control de los el control, equipos cuando trabaja en estas condiciones. desplácese — Aumente la estabilidad del tractor agregando pesos o lastre en las ruedas y aumentando al máximo la separación entre las ruedas.

  • Page 80: Estacionamiento Seguro

    Estacionamiento seguro Prácticas de seguridad para el estacionamiento — Use las zonas designadas o alejadas del tránsito. Aplique el freno de — Use lugares con suelo fi rme y nivelado. estacionamiento — Aplique el freno de estacionamiento. — Descienda el equipo de la cortadora de césped hasta el suelo.

  • Page 81: Realización De Mantenimiento Con Seguridad

    Apagado con seguridad Descenso correcto — Nunca descienda de equipos en movimiento. Espere hasta que las — Nunca baje de una máquina saltando. piezas móviles se detengan — Descienda con cuidado. — Verifi que que no haya peldaños resbaladizos. — Mantenga los pies y las manos lejos de los controles. —...
  • Page 82 Realización de mantenimiento con seguridad Preparación personal Use la ropa de protección personal y los equipos de protección personal (PPE) que se le proporcionen o que requieran las condiciones del trabajo. SIEMPRE debe usar gafas de seguridad con escudos laterales. Puede necesitar también: —...
  • Page 83 Realización de mantenimiento con seguridad Preparación de la máquina Deben controlarse o reducirse las fuentes de energía Prepare los sistemas de la almacenada (eléctricas, mecánicas, hidráulicas, máquina para neumáticas, químicas, térmicas, etc.) al mínimo realizarles servicios practicable antes de realizar cualquier procedimiento de mantenimiento, reparación o servicio.
  • Page 84 Realización de mantenimiento con seguridad Use ventilación adecuada Si es necesario hacer funcionar un motor en una zona Retire la llave y cerrada, elimine del área las emanaciones de escape lea el manual de con una extensión del caño de escape. Si no tiene esa mantenimiento extensión, asegúrese de abrir las puertas y dejar entrar aire del exterior.
  • Page 85 Realización de mantenimiento con seguridad Riesgos del sistema hidráulico Cuando ventila o llena el sistema hidráulico, afl oje la tapa de llenado con lentitud y retírela gradualmente. El sistema hidráulico se encuentra bajo presión siempre Nunca restablezca una válvula de alivio del sistema que el motor está...
  • Page 86 Realización de mantenimiento con seguridad Evite explosiones — Asegúrese de que las máquinas no se estén tocando. — Observe la polaridad de las baterías y conexiones. ¡ADVERTENCIA! Evite posibles lesiones graves por — Realice la conexión fi nal de cable al motor o al punto explosiones.
  • Page 87 Realización de mantenimiento con seguridad Mantenimiento de neumáticos y ruedas (continuación) Evite la explosión ¡ADVERTENCIA! Los tipos de ruedas y neumáticos de los neumáticos que generalmente se encuentran en estos equipos requieren cuidados especiales al realizar servicios para evitar lesiones graves o la muerte. No infl e los neumáticos por encima de la presión No infl e neumáticos con gases infl amables o con sistemas recomendada.

  • Page 88: Palabras Fi Nales Para El Usuario

    Realización de mantenimiento con seguridad Mantenimiento de las hojas de la cortadora — Evite doblar las hojas. Contribuya a prevenir que las hojas de la cortadora se doblen o rajen evitando el (continuación) contacto con objetos sólidos. Las hojas de la cortadora —...

  • Page 89: Introduction Section

    INTRODUCTION SECTION Introduction Section 2-1 © 2014 Alamo Group Inc.
  • Page 90 Indicates an imminently hazardous situation that, if not avoided, MAY result in MINOR INJURY. Identifies special instructions or procedures that, if not strictly observed, could result in damage to, or destruction of the machine, attachments or the environment. TRAXX RF 04/14 Introduction Section 2-2 © 2014 Alamo Group Inc.
  • Page 91 INTRODUCTION SN 00323 and Above SN 00322 and Below TRAXX RF 04/14 Introduction Section 2-3 © 2014 Alamo Group Inc.
  • Page 92 INTRODUCTION The TRAXX RF remote controlled flail mower is tough enough to tackle the most challenging tasks but light enough to mount on the back of a trailer or store inside a commercial vehicle. The TRAXX RF is suitable for a vast range of applications from highways, waterways and railways and restricted access sites with a remote working range up to 1,000’...

  • Page 93: Machine Delivery

    Transmitter and Battery Pack • Reserve Battery Pack • Battery Charger 12V DC • Strobe Light • Belt for the Radio Control • Ignition Key • Operator’s Manual • Part’s Manual TRAXX RF 04/14 Introduction Section 2-5 © 2014 Alamo Group Inc.
  • Page 94 3. Record the Model and Serial Numbers on the Warranty page at the front of the Operator’s Manual. Keep this as part of the permanent maintenance file for the implement this as part of the permanent maintenance file for the implement. TRAXX RF 04/14 Introduction Section 2-6 © 2014 Alamo Group Inc.

  • Page 95: Description Of The Snow Blower

    INTRODUCTION Alamo Industrial offers Optional Equipment available for the Traxx RF. SNOWBLOWER DESCRIPTION OF THE SNOW BLOWER 1. Frame 12.Cutter Rotor Gearing Chain 2. Snow Cutter Rotor 13.Safety Rod 3. Turbine Rotor 14.Adjustable Slides 4. Chimney 15.Snow Scraping Ring 5. Chimney rotation powered by Hydraulic Motor 16.Throwing Guard...
  • Page 96 INTRODUCTION Alamo Industrial offers Optional Equipment available for the Traxx RF. OPTIONAL HITCH ALAMO INDUSTRIAL An Alamo Group Company Post Office Drawer 549 Seguin, Texas 78156 TRAXX RF 04/14 Introduction Section 2-8 830-379-1480 © 2014 Alamo Group Inc.
  • Page 97 1. LIMITED WARRANTIES. 1.01. Alamo Industrial warrants for one year from the purchase date to the original non-commercial, governmental, or municipal purchaser (“Purchaser”) and warrants for six months to the original commercial or industrial purchaser (“Purchaser”) that the goods purchased are free from defects in material or workmanship.

  • Page 99: Assembly Section

    ASSEMBLY SECTION Assembly Section 3-1 © 2014 Alamo Group Inc.

  • Page 100: General Instructions

    ASSEMBLY GENERAL INSTRUCTIONS The TRAXX RF is delivered completely assembled and ready for use having been pre-filled with all necessary lubricants and fluids other than fuel. Before use all packaging must be removed and the transport fasteners loosened. The Strobe Light will be supplied and must be installed prior to use.

  • Page 101: Instructions To Uncrate Your Traxx™Rf

    These batteries are shipped from the factory with no charge to enhance their lifetime performance. • Before you can operate the TRAXX RF at least one of the batteries will need to be fully charged. Remove the charger and a battery from the box.
  • Page 102 "The remote has to communicate with the receiver on the TRAXX RF. "Be sure the key on the remote is on. It is located on the bottom left side. The emergency stop switches on the remote and the TRAXX RF must be pulled out, into the "ON" position.

  • Page 103: Optional Hitch

    Refer to image Asm-RC-0006 Make sure to get help when installing hitch to unit by either having someone else help or using a hoist. Hitch is heavy and serious injury can occur. TRAXX RF 04/14 Assembly Section 3-5 © 2014 Alamo Group Inc.

  • Page 104: Installation Of Optional Hitch - Older Wheel Motor Cover Plates

    If unit is going to tow on public roads a safety chain with tensile strength equal to or greater than the gross weight of the towed implement must be connected between the Traxx unit and towed implement. TRAXX RF 04/14 Assembly Section 3-6 © 2014 Alamo Group Inc.
  • Page 105 ASSEMBLY TRAXX™RF Delivery Inspection Sheet TO BE COMPLETED BY AN AUTHORIZED DEALER The checklist below lists the items which shipped with the TRAXX RF unit. Please inspect and account for each line item.  TRAXX RF unit Traxx unit Head Roll bar ...

  • Page 107: Operation Section

    OPERATION SECTION Operation Section 4-1 © 2014 Alamo Group Inc.
  • Page 108 Pictures contained in this section are intended to be used as a visual aid to assist in explaining the operation of a TRAXX RF flail mower and are not specific to any model. Some pictures may show shields and safety equipment removed for picture clarity.

  • Page 109: Standard Equipment And Specifications

    • Hydrostatic drive circuit features two independent piston pumps rated at 7.9 gpm and 3,045 psi at 3,000 rpm. • Hydraulic control valve circuit features a gear pump rated at 3.5g/rpm and 2,610 psi at 3,000 rpm. TRAXX RF 04/14 Operation Section 4-3 © 2014 Alamo Group Inc.
  • Page 110 • Roll guard frame with LED strobe light. • Automatic shutdown if excessive slope angle depletes engine oil pressure. OPTIONAL EQUIPMENT • Rubber tread tracks for turf grass applications. TRAXX RF 04/14 Operation Section 4-4 © 2014 Alamo Group Inc.

  • Page 111: Operator Requirements

    Serious injury or death to the operator or others could result if the operator is under the influence of drugs or alcohol. (SG-27) TRAXX RF 04/14 Operation Section 4-5 © 2014 Alamo Group Inc.

  • Page 112: Starting The Engine

    (refer to controls section) - release button as soon as the engine starts. Note: If the engine fails to start within 5 seconds release the button and wait for a minute or so before trying again. OPS-RC-0002 TRAXX RF 04/14 Operation Section 4-6 © 2014 Alamo Group Inc.

  • Page 113: Ignition Panel Components

    OPERATION Never operate a starter for excessive uninterrupted periods attempting to start an engine as this can damage or burn out the starter motor 4.1 Ignition Panel Components TRAXX RF 04/14 Operation Section 4-7 © 2014 Alamo Group Inc.

  • Page 114: Dash Panel Identification

    OPERATION 4.2 Dash Panel Identification Traxx RF Units delivered with Serial Number 011400323 and greater will utilize a solid state lighting system with integrated temperature gauge. Traxx RF Units delivered with Serial Number 021200089 up to 011400322 will utilize a solid state lighting system with integrated temperature gauge.

  • Page 115: Ignition Panel Warnings

    OPERATION 4.3 Ignition Panel Warnings TRAXX RF 04/14 Operation Section 4-9 © 2014 Alamo Group Inc.

  • Page 116: Manual Track Control

    C. Equipment Lift D. Equipment Lower E. Right Track Forward F. Right Track Backwards Remove Dust Cover from Wire Connection on the Electronic (Ignition) Box, and install the Manual Control Cable. TRAXX RF 04/14 Operation Section 4-10 © 2014 Alamo Group Inc.

  • Page 117: Driving The Traxx Rf Using Wire Drive

    OPERATION 5.1 Driving the TRAXX RF using Wire Drive 1. To move forward press Buttons A and E at the same time. 2. To turn right press only Button A. 3. To turn left press only Button E. 4. To reverse tractor press Buttons B and F at the same time.

  • Page 118: Emergency Stop And Safety Devices

    6. EMERGENCY STOP AND SAFETY DEVICES The TRAXX RF is operated by remote control and the user is not directly operating the driving elements of the machine specific safety features have been built in to protect the user, third party persons, and the machine itself.

  • Page 119: Setting The Mower

    Raising the Mower deck exposes the Cutting Blades which creates a potentially serious hazard and could cause serious injury or even death from objects thrown from the Blades. (SRM-07) TRAXX RF 04/14 Operation Section 4-13 © 2014 Alamo Group Inc.

  • Page 120: Tractor Pre-Operation Inspection/Service

    Replace bent or broken blades with new blades. NEVER ATTEMPT TO STRAIGHTEN, WELD, OR WELD HARDFACING ON BLADES SINCE THIS WILL LIKELY CRACK OR OTHERWISE DAMAGE THE BLADE WITH SUBSEQUENT FAILURE AND POSSIBLY CAUSE SERIOUS INJURY FROM THROWN BLADES. (SGM-10) TRAXX RF 04/14 Operation Section 4-14 © 2014 Alamo Group Inc.
  • Page 121 Inspect the condition of the drive belt. • Ensure the mower mount and float mechanism is in working condition. • Ensure the drive belt shield is in place and in good repair. OPS-F- 0005_A TRAXX RF 04/14 Operation Section 4-15 © 2014 Alamo Group Inc.
  • Page 122 • Remove any grass or other debris which may be wrapped around the cuttershafts. • Inspect the condition of deck skid shoes and hardware. OPS-F- 0007_B TRAXX RF 04/14 Operation Section 4-16 © 2014 Alamo Group Inc.
  • Page 123 Wire Connections Belt Condition Cooling Fan: Check Blades Starter: Wire connection Clean debris Battery RH: Clean debris Check Connections Radiator: Open Door, check debris Coolant level Pressure Relief Hoses TRAXX RF 04/14 Operation Section 4-17 © 2014 Alamo Group Inc.
  • Page 124 Air Compressor: Electrical connection Hose and clamps TRACKS Check Tracks for damage: Cuts or tears Missing spikes or cleats Excessive wear Check for Stones and Debris in system Operator’s Signature:______________________________________________________________________ TRAXX RF 04/14 Operation Section 4-18 © 2014 Alamo Group Inc.
  • Page 125 Head Pivot Lift Cylinders START ENGINE Turn Ignition Key on Check Lights Start Engine - Check all Functions Check that all Warning Lights turn off Check Reversible Fan operation TRAXX RF 04/14 Operation Section 4-19 © 2014 Alamo Group Inc.

  • Page 126: Driving And Maneuvering The Machine

    ‘A’. The primary function of this feature is for ease of operation when the machine’s particular work tool is ‘rear mounted’ type and requires the machine to be operated in reverse. TRAXX RF 04/14 Operation Section 4-20...

  • Page 127: Steering Direction Control

    The TRAXX RF is capable of a transport speed up to 6MPH when utilizing the II gear range. However, this speed can be limited with the use of the GroundSpeed Bios Potentiometer.

  • Page 128: Flail Head (Tool) Height Control

    Lower mower to the ground and release the rod of the cylinder to reach the center of the slot. This way the tool will follow the contour of the ground better. (float effect). TRAXX RF 04/14 Operation Section 4-22 © 2014 Alamo Group Inc.

  • Page 129: Selection Of Rotor Cutting Direction

    The operator must stop the rotation of the rotor and wait until the flail has stopped completely before opening the front hood of the mower. Never cut grass with the front hood of the head open. TRAXX RF 04/14 Operation Section 4-23 © 2014 Alamo Group Inc.

  • Page 130: Operating The Tractor And Implement

    The TRAXX RF should only be operated on concrete or hard surface hillsides with the optional rubber track system installed.
  • Page 131 TRAXX RF 04/14 Operation Section 4-25 © 2014 Alamo Group Inc.

  • Page 132: Foreign Debris Hazards

    If a bystander comes within 300 feet of the tractor while the mower is being operated, stop the tractor at once, and idle the engine. Do not engage the Mower again until all bystanders are well past the 300 foot distance. OPS-R-0024_B TRAXX RF 04/14 Operation Section 4-26 © 2014 Alamo Group Inc.
  • Page 133 Never mow an area that you have not inspected and removed debris or foreign material. (SGM-08) TRAXX RF 04/14 Operation Section 4-27 © 2014 Alamo Group Inc.
  • Page 134 TO AVOID SERIOUS INJURY OR DEATH FROM SLIDING OR EQUIPMENT ROLLOVER: Never attempt to operate the TRAXX RF with metal cleats or spiked track on concrete hillsides or hard hillside surfaces. Operation of the spiked or cleated track on concrete or hard surface hillsides could result in sudden and violent loss of traction and control of the machine and may result in serious injury or death.
  • Page 135 Do not operate if oil is leaking. Repair oil leak and remove all accumulated oil before operating. • CLEAR any grass clippings or debris buildup around mower hydraulic pumps, valves or tanks. PN EFRCM-01 TRAXX RF 04/14 Operation Section 4-29 © 2014 Alamo Group Inc.

  • Page 136: Engine Shutdown

    Reversible Fan automatically cleans at preset periods, the operator control allows the user to override the function to perform additional cleaning cycles when working in dirty or dustier conditions. (See Maintenance Section) TRAXX RF 04/14 Operation Section 4-30 © 2014 Alamo Group Inc.

  • Page 137: Mower Storage

    To avoid serious injury or death, never allow riders on machine. Never stand in front or rear of machine when operating and keep bystanders clear of area before moving machine. TRAXX RF 04/14 Operation Section 4-31 © 2014 Alamo Group Inc.
  • Page 138 OPERATION During operation or transport, situations may arise when it may be necessary to tow the TRAXX RF. The following procedures should be performed as instructed to reduce the possibility of damage to the drive motor, tracks or brake systems, and provide safe towing of the machine.
  • Page 139 Removal of the rubber dust plug will provide access to the Manual Brake Release System. Check the threads for damage and remove any debris from the hole. Apply a light coating of grease to the threads. TRAXX RF 04/14 Operation Section 4-33 © 2014 Alamo Group Inc.
  • Page 140 Drill a 13mm hole in the plate at the approximate center to accept the 12mm hexhead capscrew, washer and nut. Install the hexhead capscrew into the manual brake release hole until it bottoms out in the hole. TRAXX RF 04/14 Operation Section 4-34 © 2014 Alamo Group Inc.
  • Page 141 Stop when resistance prevents further movement; Do Not Overtighten the nut. Repeat the procedure for both wheel motors (right and left). TRAXX RF 04/14 Operation Section 4-35 © 2014 Alamo Group Inc.
  • Page 142 CAUTION: Towing or lifting the Mower by attaching lift or tow straps to the mower in any position other than designated by Alamo Industrial to be safe lift points may result in serious damage or injury. CAUTION: Use only properly rated and inspected towing or lifting straps, hooks and attachments to tow or lift the TRAXX RF machine.
  • Page 143 Reinstall the wheel motor cover. Test the drive system using the remote control to ensure the drives are working properly. TRAXX RF 04/14 Operation Section 4-37 © 2014 Alamo Group Inc.

  • Page 144: Trouble Shooting Guide

    Faulty brake seals. Contact dealer. Internal malfunction. Contact dealer. Brake jammed. Check braking system. Brakes not locking. Residual pressure in circuit. Check hydraulic system. Worn brake components. Contact dealer. TRAXX RF 04/14 Operation Section 4-38 © 2014 Alamo Group Inc.

  • Page 145: Maintenance Section

    MAINTENANCE SECTION Maintenance Section 5-1 © 2014 Alamo Group Inc.
  • Page 146 FOLLOW INSTRUCTIONS in maintenance section when replacing hydraulic cylinders to prevent component falling. CLEANING IMPLEMENT • NEVER clean with pressure washer electrical components such as: receiver, remote control, actuator, reversible fan air compressor, fuses and relay box. PN HMRCM-02 TRAXX RF 04/14 Maintenance Section 5-2 © 2014 Alamo Group Inc.

  • Page 147: Diesel Engine

    Maintenance Schedule (Track) The spiked rubber tracks or the optional all rubber racks used on the TRAXX RF are considered a normal wear item, much like tires on a car. Failure of the track is not covered under warranty.
  • Page 148 5. Install the grease gun on the specialized fitting. 6. Pump the grease gun until a pressure of 1850psi is obtained. 7. Remove the grease gun and replace the Tension Valve Inspection Plate. TRAXX RF 04/14 Maintenance Section 5-4 © 2014 Alamo Group Inc.

  • Page 149: Maintenance Schedule (Hydraulic Oil)

    NOTE: Dadolin HLP SYNTH E 46 can be mixed with Panolin HLP SYNTH 46 without voiding warranty. Alamo Industrial will only guarantee that our products are free from defects if Panolin HLP Synthetic E 46’ Hydraulic Oil (P/N TR477142) or Panolin HLP Synthetic 46 hydraulic oil are used in the hydraulic system. The use of another hydraulic oil, or a mixture of the approved Panolin HLP and another oil may severely affect the reliability of the TRAXX RF hydraulic system.

  • Page 150: Maintenance Schedule (General Machine)

    Check hoses and connections to mower. Check mower belts (condition). Check mower belts (tension). Lubricate cutter shaft bearings. Lubricate roller shaft bearings. Lubricate all indicated pivot points. Check mower and power unit for leaks. TRAXX RF 04/14 Maintenance Section 5-6 © 2014 Alamo Group Inc.
  • Page 151 Check wear and tear and overall condition of connections pinions and lower rollers - these must be replaced when they reach their maximum wear limit; refer to “Wear Limits” Section Check that brakes are working correctly. Check all nuts and bolts for tightness. TRAXX RF 04/14 Maintenance Section 5-7 © 2014 Alamo Group Inc.
  • Page 152 Hoses and hydraulic connections should be inspected for signs of wear or damage on a regular basis. Damaged or worn components must be replaced immediately. The working life of undamaged hoses is approximately six years. They should be replaced after this period. TRAXX RF 04/14 Maintenance Section 5-8 © 2014 Alamo Group Inc.

  • Page 153: Hydraulic Fluid

    Both scenarios can lead to catastrophic failure of the hydraulic components and costly repairs. Alamo Industrial offers fluids, filters, and oil analysis capabilities to help you maintain your hydraulic powered machine. Please be sure to follow the oil & filter change procedure that is outlined for your mower.

  • Page 154: Checking Engine Oil Level

    MAINTENANCE Checking Engine Oil Level The engine oil specified for use in the TRAXX RF is Castrol Edge with Syntec, 5W40 Synthetic Motor Oil. This oil has been tested provide maximum lubrication when the TRAXX RF is operated on hill in excess of 60º. The use...

  • Page 155: Coolant Check

    Remove drain plug and release the oil into a suitable container - ensure the container used has sufficient capacity for the amount of oil. • Once all the oil has been released, replace drain plug and torque to 25 lb-ft (34.5Nm). TRAXX RF 04/14 Maintenance Section 5-11 © 2014 Alamo Group Inc.

  • Page 156: Hydraulic Filter Replacement

    The filter should be done only with the original parts, and before it reached the clogging complete. • Screw the cap and tight. Torque max 15 lb-ft (20 Nm). TRAXX RF 04/14 Maintenance Section 5-12 © 2014 Alamo Group Inc.

  • Page 157: Changing Hydraulic Oil And Filter

    Incompatibility (Excessive Wear, Sludge, Gumming, Etc.) Alamo Industrial will only guarantee that our products are free from defects if Panolin HLP Synthetic E 46’ Hydraulic Oil (PN TR477142) or Panolin HLP Synthetic 46 hydraulic oil are used in the hydraulic system. The use of another hydraulic oil, or a mixture of the approved Panolin HLP and another oil may severely affect the reliability of the TRAXX RF hydraulic system.
  • Page 158 Stop engine and re-check oil level on the dipstick, top off if the level has dropped. • Check all components and covers are tightly secured before using the machine. TRAXX RF 04/14 Maintenance Section 5-14 © 2014 Alamo Group Inc.

  • Page 159: Hydraulic Control Valve

    Place a suitable container under the filter assembly and unscrew the filter bowl securing ring using a filter • Carefully remove filter bowl using the container underneath to catch spilled fuel. Retain sealing ring for subsequent re-attachment. TRAXX RF 04/14 Maintenance Section 5-15 © 2014 Alamo Group Inc.

  • Page 160: Priming The Fuel System

    Do not allow the starter motor to run for more than 30 seconds at a time if the engine fails to start. Allow at least 2 minutes before re-starting. TRAXX RF 04/14 Maintenance Section 5-16 © 2014 Alamo Group Inc.

  • Page 161: Air Filter Cleaning And Replacement

    Re-attach the chain selecting an alternative link to either increase or decrease tension. • Replace washer and bolt to secure in position. • Repeat the process on the opposite ram. TRAXX RF 04/14 Maintenance Section 5-17 © 2014 Alamo Group Inc.

  • Page 162: Steel Tracks

    The TRAXX RF should only be operated on concrete or hard surface hillsides with the optional rubber track system installed.
  • Page 163 1. Replacing the tracks requires that the machine be elevated and retained on a stable platform. A forklift or an overhead hoist of 2 tons or more capacity could be used to raise the mower. TRAXX RF 04/14 Maintenance Section 5-19 © 2014 Alamo Group Inc.
  • Page 164 3. Remove the track tensioner adjustment cover on the side of the frame assembly (both sides) to gain access to the tensioner grease fitting and nut. TRAXX RF 04/14 Maintenance Section 5-20 © 2014 Alamo Group Inc.
  • Page 165 5. Using a suitable pry bar or lever arm, tie strap or come-along, push the Idler Sprocket in toward the rear of the mower until sufficient slack is available in the track to allow it to be removed. TRAXX RF 04/14 Maintenance Section 5-21 © 2014 Alamo Group Inc.

  • Page 166: Installing Tracks

    Lay the front of the track over the idler sprocket and while pushing the top of the track in, rotate the track assembly to “Walk” the track on. TRAXX RF 04/14 Maintenance Section 5-22 © 2014 Alamo Group Inc.

  • Page 167: Track Tension Kit

    The track components shown must be replaced when they reach their maximum wear limit. Lubricating of Undercarriage Components Components of the tracks undercarriage utilize sealed bearings which are not greaseable. TRAXX RF 04/14 Maintenance Section 5-23 © 2014 Alamo Group Inc.

  • Page 168: Cutter Unit

    DRIVE BELT TENSION ADJUSTMENT AND REPLACEMENT The drive belts utilized on the Traxx RF mower provide a transfer of power from the hydraulic system to the cuttershaft of the mower. This allows the belts to act much like a clutch and to slip on the pulleys when the mower encounters an obstruction or is severely overloaded.
  • Page 169 4. Remove the old belts and replace with the proper new belts. NOTE: All belts should be replaced as a set. 5. Install the new belts and adjust the belt tension. TRAXX RF 04/14 Maintenance Section 5-25 © 2014 Alamo Group Inc.

  • Page 170: Skid Shoe Height Adjustment

    Lower to raise the height. SKID SHOE HEIGHT ADJUSTMENT Adjust the skid shoe so that it is at least 1/2” above the ground when the mower is supported by the roller. TRAXX RF 04/14 Maintenance Section 5-26 © 2014 Alamo Group Inc.

  • Page 171: Roller Bearing Replacement

    Adjust the cutting height as required and ensure that the roller is level across the width of the mower. Install grease into the roller bearings. Check the assembly for excessive movement. TRAXX RF 04/14 Maintenance Section 5-27 © 2014 Alamo Group Inc.

  • Page 172: Blade Inspection And Replacement

    The knife mounting bolts may be installed facing either toward the Driven End or the Non Driven End. Maintain the same direction for all knife mounting to retain proper balance of the cuttershaft. TRAXX RF 04/14 Maintenance Section 5-28 © 2014 Alamo Group Inc.
  • Page 173 KNIFE WEAR Knives which show wear exceeding 1/4” of the cutting edge, or if the blade is chipped, dented, bent or otherwise damaged, must be replaced. TRAXX RF 04/14 Maintenance Section 5-29 © 2014 Alamo Group Inc.

  • Page 174: Flail Blades Inspection

    Use only genuine Alamo Industrial replacement blades and fasteners. Other blades and fasteners may not meet the Alamo Industrial requirements and could fail during operation resulting in part being thrown out from under the mower. Never attempt to sharpen blades.

  • Page 175: General Information On Flail Mower Vibration

    This occurs as the shaft passes through its normal harmonic vibration point. As long as the mower is operated at the proper speed, then harmonic vibration will not be an issue. TRAXX RF 04/14 Maintenance Section 5-31 © 2014 Alamo Group Inc.

  • Page 176: Initial Start-Up Procedures

    MAINTENANCE HYDRAULICS The TRAXX RF hydraulic system consists of three circuits. The power circuit drives the cuttershaft. The control circuit lifts and tilts the cutter unit, and the drive system operates the tracks. Initial Start-Up Procedures Whenever the hydraulic system is drained in order to service a hydraulic component, the following start-up procedure should be completed.

  • Page 177: Fuses And Relays

    2. The Emergency Stop Switch is attached to the Electrical Box Cover. Use care to make sure the connections are correctly installed prior to reassembly. TRAXX RF 04/14 Maintenance Section 5-33 © 2014 Alamo Group Inc.

  • Page 178: Fuse Panel

    MAINTENANCE FUSE PANEL Traxx RF Units with Serial Number 00323 and Greater TRAXX RF 04/14 Maintenance Section 5-34 © 2014 Alamo Group Inc.
  • Page 179 MAINTENANCE Traxx RF Units with Serial Number 00089 TRAXX RF 04/14 Maintenance Section 5-35 © 2014 Alamo Group Inc.
  • Page 180 MAINTENANCE Traxx RF Units with Serial Number 00088 and lower. TRAXX RF 04/14 Maintenance Section 5-36 © 2014 Alamo Group Inc.
  • Page 181 Internal Pump or Motor damage. Disassemble, inspect, and repair. Sluggish response to Air in system. See Step 1A, 1B, 1C, 2B acceleration Internal Pump or Motor wear Disassemble, inspect, and repair. or damage. TRAXX RF 04/14 Maintenance Section 5-37 © 2014 Alamo Group Inc.

  • Page 182: Proper Torque For Fasteners

    NOTE: These values apply to fasteners as received from supplier, dry or when lubricated with normal engine oil. They do not apply if special graphited or molydisulphide greases or other extreme pressure lubricants are used. This applies to both UNF fine and UNC coarse threads. TRAXX RF 04/14 Maintenance Section 5-38 © 2014 Alamo Group Inc.
