Page 1 C01-Cover_A str Important Operating and Safety Instructions are found in the Mower Safety Video that can be instantly accessed on the Internet at: www.algqr.com/ave Alamo Industrial 1502 East Walnut Seguin, Texas 78155 www.alamo-industrial.com E-Mail: parts@alamo-industrial.com...
Page 3 Your Authorized Alamo Industrial Dealer may have shown this video and presented you a DVD Video when you purchased your mower. If you or any mower operator have not seen this video, watch the Video, Read this Opera- tor’s Manual, and Complete the Video Guidebook before operating your new mower.
Page 4 Alamo Group Ag. Division will provide one (1) AEM Mower Safety Practices Video Please Send Me:  VHS Format – AEM/FEMA Mower Operator Safety Video  DVD Format – AEM/FEMA Mower Operator Safety Video  Mower Operator’s Manual  AEM Mower Operator’s Safety Manual Requester Name: Phone: ________________________________________...
Page 5 A Manual canister is provided on the implement where this manual can be properly stored. If you lose or damage this manual a free replacement manual can be obtained from an authorized Alamo Industrial dealer or by down loading the manual from the Alamo Industrial website www.www.alamo-industrial.com...
Page 6 DEALER to CUSTOMER Pre-Delivery / Operation Instructions Dealer should inform the Purchaser of this product of Warranty terms, provisions, and procedures that are applica- ble. Dealer should inform Purchaser to review the contents of the Operator’s Manual including safety equipment, safe operation and maintenance, to review the Safety Signs on the TRAXX RC56/75 Unit and of Purchaser’s responsibility to train his/her operators of safe operation procedures IMPLEMENTS: I have explained that Deflectors, Chain Guards, or Solid Skirts must be installed and main-...
Page 7 Table of Contents SAFETY SECTION ..................1 - 1 SAFETY MESSAGES ............................1 - 2 OPERATOR SAFETY ............................1 - 3 CRUSHING HAZARDS............................ 1 - 4 CONNECTING OR DISCONNECTING IMPLEMENT SAFETY ..............1 - 5 SLIDING HAZARD ............................1 - 6 THROWN OBJECT HAZARDS........................
Page 8 Table of Contents STARTING THE ENGINE ..........................4 - 7 EMERGENCY STOP AND SAFETY DEVICES....................4 - 8 Location of Emergency Stop Buttons ......................4 - 8 Automatic Emergency Safety Features ..................... 4 - 8 Manual Emergency Safety Feature ......................4 - 9 PRE-OPERATION AND SERVICE ........................
Page 9 Table of Contents Stopping the Engine ..........................4 - 49 Emergency Stopping (E-Stop)......................... 4 - 49 DRIVING AND MANOUEVERING ......................... 4 - 49 Foreign Debris Hazards........................... 4 - 52 Bystanders/Passersby Precautions......................4 - 52 OPERATING POSITION & DISTANCE ......................4 - 53 OPERATION ..............................
Page 10 Table of Contents CHANGING HYDRAULIC OIL AND FILTER ....................5 - 18 FUEL WATER SEPARATOR CLEANING AND REPLACEMENT..............5 - 20 Fuel Water Separator Water Drain ......................5 - 21 Priming the Fuel System ......................... 5 - 21 AIR FILTER CLEANING AND REPLACEMENT.................... 5 - 22 SUPPORT SPRINGS ............................
Page 11 SAFETY SECTION Safety Section 1-1 @ 2021 Alamo Group Inc.
Page 12 SAFETY SAFETY MESSAGES A careful operator is the best operator. Safety is of primary importance to the manufacturer and should be to the owner/operator. Most accidents can be avoided by being aware of your equipment, your surroundings, and observing certain precautions. The first section of this manual includes a list of Safety Messages that, if followed, will help protect the operator and bystanders from injury or death.
Page 13 SAFETY OPERATOR SAFETY TO AVOID DEATH OR SERIOUS INJURY DO THE FOLLOWING: • READ, UNDERSTAND and FOLLOW Operator's Manual instructions, Warnings and Safety Messages. • WEAR SAFETY GLASSES WITH SIDE SHIELDS MARKED TO COMPLY WITH ANSI Z87, safety shoes, hard hat, hearing protection and gloves when operating or repairing equipment •...
Page 14 SAFETY CRUSHING HAZARDS TO AVOID DEATH OR SERIOUS INJURY FROM FALLING OFF TRACTOR, EQUIPMENT RUN OVER, ROLLOVER AND CRUSHING BY FALLING WING OR IMPLEMENT: WHEN RAISING OR LOWERING MOWER: • Raise or lower when no one is within 20 feet of mower. KEEP BYSTANDERS CLEAR of area TO AVOID crushing.
Page 15 SAFETY CONNECTING OR DISCONNECTING IMPLEMENT SAFETY TO AVOID DEATH OR SERIOUS INJURY FROM BEING CRUSHED BY TRACTOR OR IMPLEMENT: WHEN BACKING tractor to implement hitch: DO NOT ALLOW BYSTANDERS between tractor and implement • BEFORE connecting and disconnecting implement hitch: •...
Page 16 SAFETY SLIDING HAZARD TO AVOID SERIOUS INJURY OR DEATH FROM SLIDING OR EQUIPMENT ROLLOVER: Never attempt to operate the TRAXX RF with metal cleats or spiked track on concrete hillsides or hard hillside surfaces. Operation of the spiked or cleated track on concrete or hard surface hillsides could result in sudden and violent loss of traction and control of the machine and may result in serious injury or death.
Page 17 SAFETY THROWN OBJECT HAZARDS MOWERS CAN THROW OBJECTS 300 FEET OR MORE UNDER ADVERSE CONDITIONS. TO AVOID DEATH OR SERIOUS INJURY TO OPERATOR OR BYSTANDERS FROM THROWN OBJECTS: • KEEP bystanders 300 feet away STOP MOWING IF PASSERSBY ARE WITHIN 300 FEET UNLESS: •...
Page 18 SAFETY THROWN OBJECTS HAZARDS (CONTINUED) MOWER OPERATION: • DO NOT exceed mower's rated Cutting Capacity or cut non-vegetative material. ADJUST mower sections or wing close and parallel to ground without exposing blades. • • ADJUST cutting HEIGHT to AVOID BLADE CONTACT with solid objects like wire, rocks, posts, curbs, guard rails and fixed obstructions.
Page 19 SAFETY RUN OVER HAZARDS TO AVOID DEATH OR SERIOUS INJURY FROM FALLING OFF TRACTOR OR EQUIPMENT RUN OVER: • Never allow riders on unit. Never ride on unit. • • Never stand in front of the mower, stay 300 feet away from the front of the mower while mowing. •...
Page 20 SAFETY MOWER BLADE CONTACT HAZARDS KEEP AWAY FROM ROTATING BLADES TO AVOID DEATH OR SERIOUS INJURY FROM BLADE CONTACT: • STAY AWAY and KEEP HANDS, FEET and BODY AWAY from rotating blades, drivelines and parts until all moving elements have stopped. DO NOT put hands or feet under mower decks •...
Page 21 SAFETY HIGH PRESSURE OIL LEAK HAZARDS TO AVOID DEATH OR SERIOUS INJURY FROM HIGH PRESSURE HYDRAULIC OIL LEAKS PENERATING SKIN: • DO NOT OPERATE equipment with oil or fuel leaks. • KEEP all hydraulic hoses, lines and connections in GOOD CONDITION and TIGHT before applying system pressure.
Page 22 SAFETY ELECTRICAL & FIRE HAZARDS TO AVOID DEATH OR SERIOUS INJURY FROM ELECTRICAL CONTACT WHEN WORKING AROUND ELECTRICAL POWER LINES, GAS LINES AND UTILITY LINES: INSPECT mowing area for overhead or underground electrical power lines, obstructions, gas lines, cables • and Utility, Municipal, or other type structure.
Page 23 SAFETY HAZARDS WITH MAINTENANCE OF IMPLEMENT AVOID DEATH OR SERIOUS INJURY FROM COMPONENT FAILURE BY KEEPING IMPLEMENT IN GOOD OPERATING CONDITION PERFORMING PROPER SERVICE, REPAIRS AND MAINTENANCE. BEFORE PERFORMING SERVICE, REPAIRS AND MAINTENANCE ON THE IMPLEMENT: • STOP ENGINE, engage parking brake, lower implement, allow all moving parts to stop and remove key. PLACE implement on ground or securely block up raised equipment.
Page 24 Non-genuine "will fit" parts do not consistently meet these specifications. The use of “will fit” parts may reduce mower performance, void mower warranties, and present a safety hazard. Use genuine Alamo Industrial mower parts for economy and safety. (SPAM-1str) See Your Alamo Dealer...
Page 25 NOTE: Alamo Industrial supplies safety decals on this product to promote safe operation. Damage to the decals may occur while in shipping, use, or reconditioning. Alamo Industrial cares about the safety of its customers, operators, and bystanders, and will replace the safety decals on this product in the field, free of charge (Some shipping and handling charges may apply).
Page 26 Pinch Point Hazard D994 INSTRUCT Emergency Stop D779 WARNING Use Genuine Parts D995 WARNING Severing Hazard 00757140 LOGO Alamo Industrial - Square 32120361 LOGO Alamo Industrial - Round 00757139 LOGO Alamo Industrial Standard 32120359 LOGO TRAXX RC56 32120360 LOGO TRAXX RC75...
Page 27 SAFETY DECAL DESCRIPTION TRAXX RC56/75 04/21 Safety Section 1-17 @ 2021 Alamo Group Inc.
Page 28 SAFETY TRAXX RC56/75 04/21 Safety Section 1-18 @ 2021 Alamo Group Inc.
Page 29 SAFETY TRAXX RC56/75 04/21 Safety Section 1-19 @ 2021 Alamo Group Inc.
Page 30 SAFETY TRAXX RC56/75 04/21 Safety Section 1-20 @ 2021 Alamo Group Inc.
Page 31 SAFETY TRAXX RC56/75 04/21 Safety Section 1-21 @ 2021 Alamo Group Inc.
Page 32 SAFETY TRAXX RC56/75 04/21 Safety Section 1-22 @ 2021 Alamo Group Inc.
Page 33 SAFETY TRAXX RC56/75 04/21 Safety Section 1-23 @ 2021 Alamo Group Inc.
Page 34 SAFETY TRAXX RC56/75 04/21 Safety Section 1-24 @ 2021 Alamo Group Inc.
Page 35 SAFETY FEDERAL LAWS AND REGULATIONS This section is intended to explain in broad terms the concept and effect of federal laws and regulations con- cerning employer and employee equipment operators. This section is not intended as a legal interpretation of the law and should not be considered as such.
Page 38 Contents Acknowledgment ......2 Foreword ........2 Safety Alerts.
Page 39 Safety Alerts Symbol Signal Words This Safety Alert Symbol means: “ATTENTION! Signal words are distinctive words that will typically be STAY ALERT! YOUR SAFETY IS INVOLVED!” found on safety signs on the mower and other worksite equipment. These words may also be found in this The Safety Alert Symbol identifi es important safety manual and the manufacturer’s manuals.
Page 40 The Industrial/Agricultural Mower Industrial/Agricultural Mower Types Mowers are used for pasture clipping, crop residue shredding, heavy brush cutting, waterways, right-of- Flail ways, roadside or highway mowing. Also, these mowers are used for cutting grass and other growth in public areas such as parks and cemeteries. Boom Rotary Sickle Bar...
Page 41 Follow A Safety Program Protect Yourself Wear personal protective clothing and Personal Protective Equipment (PPE) issued to you or called for by job conditions. You must ALWAYS wear safety glasses with side shields. You may also need: — Hard hat —...
Page 42 Follow A Safety Program Avoid Injury From Raised Equipment Avoid Injury From High Pressure Fluid Avoid possible crushing injury from falling mower or Avoid fl uid injection injury due to high pressure fl uid leaks. other raised equipment. High Pressure Fluid Can Inject into the Body Avoid Crushing –...
Page 43 Follow A Safety Program Be Alert! For Safe Operation Know where to get assistance. Know how to use a fi rst You must be a qualifi ed and authorized operator for aid kit and fi re extinguisher/fi re suppression system. proper operation of your machine.
Page 44 Follow A Safety Program Some Rules You Must Work By (continued) Keep — Only qualifi ed and authorized individuals may operate Children this equipment. Away from — Never allow children to play on, ride on or operate Equipment the equipment. Children are not qualifi ed to operate this equipment.
Page 45 Prepare For Safe Operation Check The Mower And Tractor Equipment Before beginning your work day inspect the machine Walk-Around and have all systems in good operational condition. Inspection WARNING! Prevent possible crushing injury from falling equipment. Hydraulic system or part failure could cause unsupported equipment to fall.
Page 46 Prepare For Safe Operation Know The Work Area Correct unsafe conditions. Do not operate in problem areas where debris and obstacles cannot be removed Before you operate the mower thoroughly inspect or marked. the work area. Walk around the area and inspect the Analyze mowing area to determine: surfaces you will travel on when using the mower.
Page 47 Prepare For Safe Operation Tractor And Mower Controls Safety Test — Raise and lower mower to check for driveline bottoming out or engagement problems. Start the tractor following the specifi c procedures in the — Check the equipment for excessive vibration and manufacturer’s operator’s manual.
Page 48 Prepare For Safe Operation Hitching Mower To Tractor Read and Three-point hitch-mounted mowers: Understand Manuals Before — Refer to mower and tractor manufacturers’ manuals. Operating — Place tractor’s hydraulic power lift (rockshaft) selector lever in down position to avoid unexpected movement.
Page 49 Start Safely Make The Right Start Mow only in daylight or good artifi cial light conditions. Rotating Blades – Avoid serious injury or death from mower-thrown Keep Away objects or blade contact: — Keep chain shields, fl exible or solid defl ector shields or discharge chutes in place and in good repair.
Page 50 Operate Safely Mower-Thrown Objects (continued) Disc Mowers — When using a disc mower it is Do Not Mow important to know the area to be mowed. If the operator in Reverse has mowed the fi eld before and is familiar with all obstacles that may be present, it is suffi cient to watch ahead of the mower path for any additional objects that may have entered the fi eld.
Page 51 Operate Safely Under Mount Mower Safety Practices When mowing with an under mount mower: Never Stand — Keep removable discharge chute in place and over on Mower – Keep Away discharge opening. — Never stand on a mower housing when the tractor engine is operating.
Page 52 Operate Safely Wing And Side Mount Mowers Safety Practices 300 ft (92 m) Raised wing positions reduce shielding protection and Keep Bystanders increases the thrown object and blade contact hazard Away from risks. Mowing Area Avoid possible serious injury or death by thrown objects or blade contact from raising and lowering wings during mowing operations: —...
Page 53 Operate Safely Uneven Terrain Mowing Safety Practices (continued) Maintain — Use extreme care to maintain control over the Control, Use Low equipment when operating in these conditions. Speeds — Increase tractor stability by adding wheel weights, ballast and increasing wheel spacing to maximum. Refer to operator’s manual for recommendations.
Page 54 Park Safely Parking Safety Practices — Use designated or out-of-traffi c areas. — Use fi rm level ground locations. Parking Brake — Set parking brake. — Lower raised equipment to ground. Shut down the mower and tractor using proper equipment shut down practice before dismounting tractor.
Page 55 Shut Down Safely Dismounting Properly — Never dismount from moving equipment. Wait for — Never jump from any machines. Moving Parts to Stop — Dismount carefully. — Check for slippery steps. — Keep feet and hands away from controls. — Use handholds and steps during dismount. —...
Page 56 Perform Maintenance Safely Prepare Yourself Wear personal protective clothing and Personal Protective Equipment (PPE) issued to you or called for by job conditions. You must ALWAYS wear safety glasses with side shields. You may also need: — Hard hat — Safety shoes —...
Page 57 Perform Maintenance Safely Prepare The Machine — Securely support, block up, or lock up mower wings with approved locking devices before working near or Stored energy sources (electrical, mechanical, hydraulic, underneath a wing mower. pneumatic, chemical, thermal, etc.) must be controlled —...
Page 58 Perform Maintenance Safely Perform Maintenance Safely Use Proper Ventilation Make sure the hoists or jacks you use are in good repair. Never use jacks with cracked, bent, or twisted parts. If it is necessary to run an engine in an enclosed area, Never use frayed, twisted or pinched cables.
Page 59 Perform Maintenance Safely Hydraulic System Hazards When venting or fi lling the hydraulic system, loosen the fi ller cap slowly and remove it gradually. The hydraulic system is under pressure whenever the Never reset any relief valve in the hydraulic system to a engine is operating and may hold pressure even after the pressure higher than recommended by the manufacturer.
Page 60 Perform Maintenance Safely Avoid Explosion — Observe the polarity of the batteries and connections. — Make the fi nal cable connection to the engine or the WARNING! Avoid possible serious injury from furthest ground point away from the battery. Never explosion.
Page 61 Perform Maintenance Safely Tire And Wheel Maintenance (continued) Never cut or weld on a wheel with an infl ated tire mounted on it. This could cause explosive WARNING! The types of wheels and tires usually decompression. found on this equipment require special care when Check that the tire size and wheel are correctly matched.
Page 62 Perform Maintenance Safely Mower Blade Maintenance (continued) — Avoid bending blades. Help prevent mower blades from bending or cracking by avoiding contact with — How are mower blades made? solid objects. Mower blades are intended to cut Mower blades are made of high strength alloy spring grass, shrubs, woody vegetation, and small trees and steel.
Page 64 Contenido Reconocimiento ....... 2 Introducción ........2 Alertas de seguridad .
Page 65 Alertas de seguridad Símbolo Palabras indicativas Este símbolo de alerta de seguridad signifi ca: Las palabras indicativas son palabras distintivas que “¡ATENCIÓN! ¡MANTÉNGASE ALERTA! ¡SU típicamente se encontrarán en letreros de seguridad SEGURIDAD ESTÁ EN RIESGO!” de la cortadora de césped y otros equipos del sitio de trabajo.
Page 66 Cortadora de césped industrial/para agricultura Tipos de cortadora de césped industrial/para agricultura Las cortadoras de césped se usan para recortar pasturas, Triturador desmenuzar residuos de cultivos, cortar arbustos, realizar desbroce pesado, cortar la hierba en vías de agua, derechos de paso, costados de caminos o autopistas. Además, estas cortadoras se usan para cortar la hierba y otras plantas en zonas públicas como parques y cementerios.
Page 67 Cumplimiento del programa de seguridad Protéjase a sí mismo Use la ropa de protección personal y los equipos de protección personal (PPE) que se le proporcionen o que requieran las condiciones del trabajo. SIEMPRE debe usar gafas de seguridad con escudos laterales. Puede necesitar también: —...
Page 68 Cumplimiento del programa de seguridad Evite las lesiones provocadas por equipos elevados Si un ﬂ uido se inyecta en la piel, debe ser extraído dentro de pocas horas por personal médico Evite posibles lesiones de aplastamiento por caídas de la familiarizado con este tipo de lesión.
Page 69 Cumplimiento del programa de seguridad ¡Manténgase alerta! Para una operación segura Sepa dónde obtener asistencia. Sepa cómo usar un Usted debe ser un operador cualifi cado y autorizado equipo de primeros auxilios y un extintor de incendios/ para operar la máquina correctamente. Debe comprender sistema de supresión de fuego.
Page 70 Cumplimiento del programa de seguridad Algunas reglas que debe cumplir al trabajar (continuación) Mantenga — Únicamente personas cualifi cadas y autorizadas a los niños alejados pueden manejar estos equipos. de los equipos — Nunca permita que los niños jueguen en los equipos, viajen en ellos o los hagan funcionar.
Page 71 Preparación para una operación segura Revise los equipos de la cortadora de césped y el marcadas; incluya los pernos y sujetadores de las hojas. Nunca enderece o suelde en las hojas. tractor — Asegúrese de que el escudo para objetos que son Antes de comenzar la jornada de trabajo, inspeccione la arrojados se encuentre correctamente instalado y en buen máquina y asegúrese de que todos los sistemas estén en...
Page 72 Preparación para una operación segura Familiarícese con la zona de trabajo Corrija las condiciones no seguras. No opere en áreas con problemas donde no se puedan retirar o marcar los Antes de hacer funcionar la cortadora de césped, residuos y los obstáculos. inspeccione cuidadosamente la zona de trabajo.
Page 73 Preparación para una operación segura Prueba de seguridad de los controles del tractor y de la cortadora de césped Use el ROPS Arranque el tractor siguiendo los procedimientos y el cinturón de seguridad específi cos del manual del operador del fabricante. Estos procedimientos normalmente incluyen: —...
Page 74 Preparación para una operación segura Enganche de la cortadora de césped al tractor Lea y asegúrese Cortadoras montadas en enganche de tres puntos: de comprender los — Consulte los manuales de los fabricantes de la manuales antes de comenzar la cortadora y del tractor.
Page 75 Arranque con seguridad Cómo realizar un arranque correcto Corte la hierba únicamente con luz diurna o en condiciones de buena luz artifi cial. Hojas giratorias – Manténgase Evite lesiones graves o muerte producidas por objetos arrojados por la cortadora o por el contacto con las hojas: —...
Page 76 Operación con seguridad Objetos arrojados por la cortadora de césped Apague la TDF, espere que las hojas dejen de girar, eleve la cortadora y, después, retroceda. (continuación) Corte desplazándose en sentido de avance. Cortadoras de disco — Cuando se usa una cortadora de disco, es importante conocer la zona donde se va a cortar.
Page 77 Operación con seguridad Prácticas de seguridad para la cortadora de césped de montaje inferior Nunca se pare sobre la cortadora Cuando se traslada con una cortadora de césped de de césped – montaje inferior: Manténgase alejado — Mantenga la rampa de descarga extraíble en su lugar y por encima de la abertura de descarga.
Page 78 Operación con seguridad Prácticas de seguridad para cortadoras de 300 ft césped con laterales y montaje lateral (92 m) Mantenga a las personas ajenas Las posiciones elevadas de los laterales reducen la alejadas de la zona protección de los escudos y aumentan los riesgos de de corte objetos arrojados y contacto con las hojas.
Page 79 Operación con seguridad Prácticas de seguridad para trabajos de corte en terrenos desparejos (continuación) Mantenga — Use extremo cuidado para mantener el control de los el control, equipos cuando trabaja en estas condiciones. desplácese — Aumente la estabilidad del tractor agregando pesos o lastre en las ruedas y aumentando al máximo la separación entre las ruedas.
Page 80 Estacionamiento seguro Prácticas de seguridad para el estacionamiento — Use las zonas designadas o alejadas del tránsito. Aplique el freno de — Use lugares con suelo fi rme y nivelado. estacionamiento — Aplique el freno de estacionamiento. — Descienda el equipo de la cortadora de césped hasta el suelo.
Page 81 Apagado con seguridad Descenso correcto — Nunca descienda de equipos en movimiento. Espere hasta que las — Nunca baje de una máquina saltando. piezas móviles se detengan — Descienda con cuidado. — Verifi que que no haya peldaños resbaladizos. — Mantenga los pies y las manos lejos de los controles. —...
Page 82 Realización de mantenimiento con seguridad Preparación personal Use la ropa de protección personal y los equipos de protección personal (PPE) que se le proporcionen o que requieran las condiciones del trabajo. SIEMPRE debe usar gafas de seguridad con escudos laterales. Puede necesitar también: —...
Page 83 Realización de mantenimiento con seguridad Preparación de la máquina Deben controlarse o reducirse las fuentes de energía Prepare los sistemas de la almacenada (eléctricas, mecánicas, hidráulicas, máquina para neumáticas, químicas, térmicas, etc.) al mínimo realizarles servicios practicable antes de realizar cualquier procedimiento de mantenimiento, reparación o servicio.
Page 84 Realización de mantenimiento con seguridad Use ventilación adecuada Si es necesario hacer funcionar un motor en una zona Retire la llave y cerrada, elimine del área las emanaciones de escape lea el manual de con una extensión del caño de escape. Si no tiene esa mantenimiento extensión, asegúrese de abrir las puertas y dejar entrar aire del exterior.
Page 85 Realización de mantenimiento con seguridad Riesgos del sistema hidráulico Cuando ventila o llena el sistema hidráulico, afl oje la tapa de llenado con lentitud y retírela gradualmente. El sistema hidráulico se encuentra bajo presión siempre Nunca restablezca una válvula de alivio del sistema que el motor está...
Page 86 Realización de mantenimiento con seguridad Evite explosiones — Asegúrese de que las máquinas no se estén tocando. — Observe la polaridad de las baterías y conexiones. ¡ADVERTENCIA! Evite posibles lesiones graves por — Realice la conexión fi nal de cable al motor o al punto explosiones.
Page 87 Realización de mantenimiento con seguridad Mantenimiento de neumáticos y ruedas (continuación) Evite la explosión ¡ADVERTENCIA! Los tipos de ruedas y neumáticos de los neumáticos que generalmente se encuentran en estos equipos requieren cuidados especiales al realizar servicios para evitar lesiones graves o la muerte. No infl e los neumáticos por encima de la presión No infl e neumáticos con gases infl amables o con sistemas recomendada.
Page 88 Realización de mantenimiento con seguridad Mantenimiento de las hojas de la cortadora — Evite doblar las hojas. Contribuya a prevenir que las hojas de la cortadora se doblen o rajen evitando el (continuación) contacto con objetos sólidos. Las hojas de la cortadora —...
Page 89 INTRODUCTION SECTION Introduction Section 2-1 @ 2021 Alamo Group Inc.
Page 90 INTRODUCTION This Remote Control Mower is designed with care and built with quality materials by skilled workers. Proper assembly, maintenance, and operating practices, as described in this manual, will help the owner/operator get years of satisfactory service from the machine. The purpose of this manual is to familiarize, instruct, and train.
Page 91 INTRODUCTION MACHINE OVERVIEW FRONT COMPARTMENT TRAXX RC56/75 04/21 Introduction Section 2-3 @ 2021 Alamo Group Inc.
Page 92 INTRODUCTION ENGINE COMPARTMENT - LEFT SIDE VIEW ENGINE COMPARTMENT - RIGHT SIDE VIEW TRAXX RC56/75 04/21 Introduction Section 2-4 @ 2021 Alamo Group Inc.
Page 93 INTRODUCTION REAR COMPARTMENT VIEW The TRAXX RC56 & RC75 machines are all-terrain, remote controlled, tracked vehicles for use as versatile work platforms for a comprehensive range of attachments. Machines feature powerful 56HP or 75HP fuel-efficient Hatz diesel engines mounted on “low center of gravity” chassis with perfect 50/50 weight distribution that provide maximum stability and excellent performance on all types of terrain and the ability of operating on slopes of up to 55°...
Page 94 INTRODUCTION REMOTE CONTROL IDENTIFICATION TRAXX RC56/75 04/21 Introduction Section 2-6 @ 2021 Alamo Group Inc.
Page 95 INTRODUCTION EMERGENCY STOP BUTTONS (E-STOP) Location of Emergency Stop Buttons E-Stop buttons are situated on the remote control unit and both sides of the machine in the locations indicated below. E-Stops are provided for use in an emergency situation only; they must not be used as a shortcut method of switching off the engine during normal use TRAXX RC56/75 04/21 Introduction Section 2-7...
Page 96 INTRODUCTION ATTENTION OWNER/OPERATOR BEFORE OPERATING THIS MACHINE: 1. Carefully read the Operator’s Manual, completely understand the Safety Messages and instructions, and know how to operate correctly both the tractor and implement. 2. Fill out the Warranty Card in full. Be sure to answer all questions, including the Serial Number of the implement.
Page 97 TRAXX™RF LIMITED WARRANTY LIMITED WARRANTIES 1.01. Alamo Industrial warrants for one year from the purchase date to the original non-commercial, governmental, or municipal purchaser (“Purchaser”) and warrants for six months to the original commercial or industrial purchaser (“Purchaser”) that the goods purchased are free from defects in material or workmanship.
Page 99 ASSEMBLY SECTION Assembly Section 3-1 @ 2021 Alamo Group Inc.
Page 100 ASSEMBLY GENERAL INSTRUCTIONS The TRAXX RC56/75 is delivered completely assembled and ready for use having been pre-filled with all necessary lubricants and fluids other than fuel.. Before use all packaging must be removed and the transport fasteners loosened. The Strobe Light will be supplied and must be installed prior to use. The standard items supplied are as listed below: STANDARD EQUIPMENT •...
Page 101 ASSEMBLY IDENTIFICATION OF RC56 & RC75 MACHINES Generation 1 Models Generation 2 Models Machine Codes Machine Codes RC56 Models: 40560xx RC56 Models: 40565xx RC75 Models: 40750xx RC75 Models: 40755xx Serial No. Range Serial No. Range RC56: M1855610 to M2061793 RC56: M2061896 onwards RC75: M1956330 to M2062120 RC75: M2063472 onwards •...
Page 102 ASSEMBLY MACHINE LIFTING POINTS The machine is equipped with overhead lifting points located on each side of the front and rear roll bars. Access to the lifting points requires removal of the roll bar cover panels; these are held in place with rubber mounted press fittings. (Generation 1 machines only).
Page 103 ASSEMBLY INSTRUCTIONS TO UNCRATE YOUR TRAXX™RF Inside of this box you will find the remote control for your TRAXX™RF. • There are two batteries and a charger inside of the box as well. • These batteries are shipped from the factory with no charge to enhance their lifetime performance. •...
Page 104 ASSEMBLY The fluids of the TRAXX RC56/75 were checked and topped off prior to shipping. • You should check the engine oil before starting the machine. • The dipstick is on the left hand side of the engine. • There is ample diesel fuel in the fuel tank for removal. Insert the key into the control panel and turn it to the run position.
Page 105 ASSEMBLY TRAXX™RF Delivery Inspection Sheet TO BE COMPLETED BY AN AUTHORIZED DEALER The checklist below lists the items which shipped with the TRAXX RC56/75 unit. Please inspect and account for each line item. TRAXX RC56/75 Unit • TRAXX Unit • Head •...
Page 107 OPERATION SECTION Operation Section 4-1 @ 2021 Alamo Group Inc.
Page 108 ALAMO INDUSTRIAL TRAXX RC56/75 OPERATING INSTRUCTIONS Alamo Industrial TRAXX RC56/75 remote control mowers are manufactured with quality material by skilled workers. These mowers are designed for cutting grass and small weeds safe and effectively at angles up to 60 degrees It is the operator’s responsibility to be knowledgeable of all potential operating hazards and to take every...
Page 109 OPERATION 1.STANDARD EQUIPMENT AND SPECIFICATIONS 1.1 TRAXX RC56/75 Undercarriage Specifications Loading Capacity 2646 lbs. (1.2T) Length 61” (1548mm) Axle to Axle Length 47” (1192mm) Track Height 19” (479.5mm) Cross Member Height (from ground) 6” (150mm) Fixed Undercarriage Width 49.6” (1260mm) Number of lower rollers per side (per machine) 4 + 4 (8) Number of upper rollers per side (per machine)
Page 110 OPERATION 1.2 Features & Specifications - TRAXX RC56 • 56HP (42kW) 3 Cylinder Hatz Diesel Engine • Tracked carriage closed hydraulically piston pump • Track tensioning pre-set to 150bar Max • Remote controlled operation (up to 150m range) • 3 options of rubber tracks •...
Page 111 OPERATION 1.3 Features & Specifications - TRAXX RC75 • 75HP (56kW) 4 Cylinder Hatz Diesel Engine • Tracked carriage closed hydraulically piston pump • Track tensioning pre-set to 150bar Max • Remote controlled operation (up to 150m range) • 3 options of rubber tracks •...
Page 112 OPERATION 2.OPERATOR REQUIREMENTS Safe operation of the unit is the responsibility of a qualified operator. A qualified operator has read and understands the implement and tractor Operator’s Manuals and is experienced in implement and tractor operation and all associated safety practices. In addition to the safety messages contained in this manual, safety signs are affixed to the implement and tractor.
Page 113 OPERATION 3.STARTING THE ENGINE The operator must have a complete understanding of the placement, function, and operational use of all tractor controls before starting the engine. Review the tractor operator’s manual and consult an authorized dealer for tractor operation instructions if needed. Diesel Engine Starting: •...
Page 114 OPERATION 4.EMERGENCY STOP AND SAFETY DEVICES 4.1 Location of Emergency Stop Buttons E-Stop buttons are situated on the remote control unit and both sides of the machine in the locations indicated below E-Stops are provided for use in an emergency situation only; they must not be used as a shortcut method of switching off the engine during normal use.
Page 115 3. Press the machine’s Emergency Stop button. 4. Turn the ignition key to the off position (Counter-Clockwise) and remove the key. NOTE: If the machine has malfunctioned contact your Authorized Alamo Industrial Dealer - Do Not Attempt to operate the machine until advice has been sought.
Page 116 OPERATION 5.1 Tractor Pre-Operation Inspection/Service Refer to the Pre-Operation checklist to ensure a complete pre-operation inspection is performed according to the recommendations. 5.2 Mower Pre-Operation Inspection/Service Before each mower use, a complete inspection and service is required to ensure the mower is in a good and safe working condition.
Page 117 OPERATION • Ensure rubber deflectors are in position and not damaged. Replace worn, broken, and missing sections immediately. • Ensure the rollers are in good condition and rotate freely. Inspect that all bolts and screws are in position and are properly torqued. •...
Page 118 OPERATION Remote Control Mower PRE-OPERATION Inspection Mower ID# _____________________ Date:__________________________ Make: ________________________ Shift:__________________________ DO NOT OPERATE an UNSAFE TRACTOR or MOWER Before conducting the inspection, make sure the engine is off, all rotation has stopped and the unit is in park. Make sure the mower is resting on the ground or securely blocked up and all hydraulic pressure has been relieved.
Page 119 OPERATION Needs Item Checked Notes Repair Radiator Open Door, Check Debris Coolant level Pressure Relief Hoses Fuel Level Adequate Hydraulic Oil Level Full Electric Fuel Pump Hose Connections Leaks Wire Connecrions Mounting Throttle Actuator Mounting Linkage Condition Springs Fuel Filter Hose Connections Leaks Engine Oil Level...
Page 120 OPERATION Needs Item Checked Notes Repair Check for Leaks Battery LH Clean Debris Check Connections Air Compressor Electrical Connectiopn Hose and Clamps Tracks Check Tracks for Damage Cuts or Tears Missing Spikes or Cleats Excessive Wear Check for Stones & Debris in System Check Rollers &...
Page 121 OPERATION Needs Item Checked Notes Repair Chipped Bushings Worn Bolts and Nuts Check for Leaks Mower Belts Belt Wear Loss of Tension Adjustment Replacement Lubrication Roller Bearings Cuttershaft Bearings Door Cylinder Head Pivot Lift Cylinders Start Engine Turn Ignition Key ON Check Lights Start Engine - Check All Functions Check that All Warning Lights Turn Off Check Reversible Fan Operation...
Page 122 OPERATION 6.REMOTE CONTROL UNIT Operators must wear personal safety gear at all times whilst operating the machine and stand in a safe operating position with a clear view of the machinery and the work area. 6.1 Joystick Controls TRAXX RC56/75 04/21 Operation Section 4-16 @ 2021 Alamo Group Inc.
Page 123 OPERATION 6.2 Control Unit - Display Screen & Function Operation LCD Display Reports the following information: Status Light Indicates the status of the Remote Control Unit: Illuminated Green = Correct Status Illuminated Red = Problem Status Emergency Stop Button Push button for EMERGENCY STOP Rotate clockwise to Reset Engine Start/Stop Engine Speed (RPM)
Page 124 OPERATION Fan Control Switch Operate reversible fan function: Gear Control Switch Select the required gear: Gear 1 = Low Speed / Gear 2 = High Speed Gear Speed Dial (Potentiometer) Controls the travel speed in the selected gear: Rotor Control Switch Rotor direction ON and OFF control: Rotor RPM Control Dial (Potentiometer) Controls the rotor speed:...
Page 125 OPERATION Auxiliary Control Switch Controls switch ON/OFF operation of an additional hydraulic service: Pair Button & Float Control Button 7.CONTROL PANEL 7.1 Control Identification TRAXX RC56/75 04/21 Operation Section 4-19 @ 2021 Alamo Group Inc.
Page 126 OPERATION 7.2 Control Functions 8.SCREEN ACCESS 8.1 Power ON/OFF Press ON/OFF button to power up the control panel. TRAXX RC56/75 04/21 Operation Section 4-20 @ 2021 Alamo Group Inc.
Page 127 OPERATION 8.2 Home Screen 8.3 Setting - Menu Screen TRAXX RC56/75 04/21 Operation Section 4-21 @ 2021 Alamo Group Inc.
Page 128 OPERATION 9.SETTING MENUS Access to Settings Sub-Menus To access settings sub-menus, press button ‘F2’ to display the main settings screen. Navigate to the required settings icon using the directional arrow buttons; on selection the icon will be shown highlighted (yellow).. Press the ‘Enter’...
Page 129 OPERATION Exit: To exit the menu press one of the following buttons: 9.1 Attachment Settings TRAXX RC56/75 04/21 Operation Section 4-23 @ 2021 Alamo Group Inc.
Page 130 OPERATION Attachment Lists will be displayed at the Page 1 screen With required option highlighted press ‘ENTER’ button to select the option; ‘tick’ icon will ‘highlight’ and that options text color will change from black to white to confirm selection. TRAXX RC56/75 04/21 Operation Section 4-24 @ 2021 Alamo Group Inc.
Page 131 OPERATION Press Enter to exit settings and return to Home screen Grass flail heads attachments only: Hood Warning screen will be displayed, use the navigation buttons to select ‘ACTIVATE’ or ‘DEACTIVATE’; refer to page 6 for important hood activation information. Press ‘ENTER’...
Page 132 OPERATION With ‘Continuous AUX supply’ highlighted press ‘ENTER’ button to select; ‘tick’ icon will ‘highlight’ and option text color will change from black to white to confirm selection. Press ‘Enter’ to exit settings and return to ‘Home’ screen The selected attachment information will be displayed in the ‘home’...
Page 133 OPERATION 9.3 Navigation Information for Settings Input For speed of input, the control panel software has been designed to provide ‘direct route’ navigation through settings input by predominant use of the ‘Enter’ button; this works by automatically selecting the next default command icon that is required to quickly progress to the next stage of the settings process.
Page 134 OPERATION 9.5 Float Settings - Automatic Calibration Calibrating float settings for the specific mounted attachment. The machine must be parked on a firm level site to accurately perform float calibration. Operate remote control to raise the mounted attachment off the ground to maximum height. TRAXX RC56/75 04/21 Operation Section 4-28 @ 2021 Alamo Group Inc.
Page 135 OPERATION 9.6 Float Settings - Manual Adjustments Float settings can be manually adjusted by the user to suit their individual requirements; these adjustments are performed in the Float Settings Screen. Adjustments available are:. • Increase/decrease the machines load bearing pressure. •...
Page 136 OPERATION 9.7 Float Operation NOTE: Unless subsequently changed, when float has been calibrated, and/or individual float settings entered, the settings for that particular attachment will remain in the systems memory, even if it is removed from the machine and re-mounted at a later date. 9.8 Front Hood Activate / Deactivate Settings Allows activation or deactivation of front hood operation on grass flail heads.
Page 137 OPERATION 9.9 Joystick Function Swap & Travel Swap Settings Allows users to customize the joystick functions and/or machine forward travel direction for personal preference or to perform a specific task. Changes to these settings are only retained in the systems memory for the duration of the operating period - if the machine is switched off, all changes to the joystick and travel direction settings will revert to default;...
Page 138 OPERATION 9.10 Joystick Function Options for ‘Forward Drive’ Mode 1. LH Joystick operates Travel / RH Joystick operates Steering (Default) 2. LH Joystick operates Travel & Steering. 3. RH Joystick operates Travel & Steering. Joystick Function Swap Settings Use navigation buttons to highlight the custom joystick setting. Press ‘Enter’...
Page 139 OPERATION 9.11 Joystick Function Options for ‘Reverse Drive’ Mode 1. LH Joystick operates Travel / RH Joystick operates Steering – machine drives in reverse direction. 2. LH Joystick operates Travel & Steering – machine drives in reverse direction. 3. RH Joystick operates Travel & Steering – machine drives in reverse direction. 9.12 Joystick Function Swap Settings &...
Page 140 OPERATION 9.13 Reversing Fan Settings Allows users to customize the pre-set time interval for the automatic reversing fan. The default interval time for the fan reversal feature is 5 minutes; this can be changed by the user to a time interval of their choice and can be set to any figure between 3 and 30 minutes.
Page 141 OPERATION The automatic reversing fan system is designed to reduce the build-up of dirt and dust in the radiator matrix; it is advisable to set the interval time to a lower figure that operates fan reversal more frequently, this is especially important when operating in dry and dusty conditions 9.14 Warning &...
Page 142 OPERATION If a vehicle error is displayed, the cause should be checked and appropriate action taken to rectify the issue and clear the error. The example error shown above (RC E_Stop ACTIVE) is a message the system reports when the machine is not detecting a wireless signal from the remote control unit; switching the remote control unit ‘ON’...
Page 143 OPERATION Service History Press ‘Enter’ to access Service History screen NOTE: When the machine is serviced the date is recorded and displayed on the service history screen; for reference purposes, the screen retains a list of the last 6 service dates. TRAXX RC56/75 04/21 Operation Section 4-37 @ 2021 Alamo Group Inc.
Page 144 OPERATION 9.16 Service Screen NOTE: When a 250 or 500 hour service has been performed it must be verified to record the service date; refer to following page for service verification instructions. Care must be taken when checking or servicing the machine immediately after the engine has been running;...
Page 145 OPERATION 9.17 Service Verification When a machine service has been completed, it must be verified to confirm and record the service date. NOTE: Verification of a service requires a ‘Service Validation Code’ which must be entered during the verification procedure; contact your dealer to obtain the 4 digit service code. Service Verification Procedure Use navigation buttons to select the ‘Complete Service’...
Page 146 OPERATION 9.18 Global Reset Restores all user settings to their original factory default values. NOTE: Global reset only restores settings that can be customized by the user, it will not reset any hour counters, service history information or manufacturer settings; these will remain unaffected. The procedure for performing ‘global reset’...
Page 147 OPERATION 9.19 Lighting Settings These setting allow the user to customize the machines lighting system. Machines are equipped with 3 types of lights and features pattern setting options for the strobe lights. The procedures for changing light settings are shown below Day Lights ON/OFF By default, day lights are pre-set to switch ‘ON’...
Page 148 OPERATION Spot Lights ON/OFF Strobe Light ON/OFF NOTE: The lighting systems operate independently; this allows any combination of lights to be selected and used. When multiple lights are selected the screen icon for each active set will be highlighted. Strobe Light Custom Settings Strobe lights can be pre-set to operate in a specific ‘flash’...
Page 149 OPERATION Strobe Light Pattern Selection Access to the strobe light setting is via the settings icon on the main lighting screen NOTE: By default, strobe lights are pre-set to ‘Random’; in this mode the system automatically cycles through the various light patterns and will not appear to flash in a recognizable sequence. To return to default setting;...
Page 150 OPERATION 9.20 Service Settings The service settings are primarily for use by McConnel Service or a registered dealer. These screens are accessible to the user, but are restricted to ‘read only’ access. Users should only need to refer to these screens in the event of a machine malfunction where diagnostic information or data is requested to identify a system error or fault.
Page 151 OPERATION Vehicle Inputs Vehicle Outputs TRAXX RC56/75 04/21 Operation Section 4-45 @ 2021 Alamo Group Inc.
Page 152 OPERATION 10.DRIVING THE TRACTOR AND IMPLEMENT THE OPERATOR MUST COMPLETELY UNDERSTAND HOW TO OPERATE THE TRACTOR AND IMPLEMENT AND ALL CONTROLS BEFORE ATTEMPTING TO OPERATE. The operator must read and understand the Safety and Operation Sections of the implement and tractor operator’s manuals.
Page 153 OPERATION 11.2 Engine Starting Procedure Turn master power switch to ON position - switch is located in the compartment under the front bonnet. 11.3 Control Panel Activation Press ‘ON’ button to activate the control panel on the machine; screen will switch on and the machine’s front and rear lighting will illuminate in ‘pulse’...
Page 154 OPERATION 11.4 Machine and Remote Control Synchronization Check all E-Stop buttons are in their deactivated (out) position; if an E-Stop is active (illuminated) rotate that E-Stop button clockwise to de-activate the stop. 11.5 Start the Engine TRAXX RC56/75 04/21 Operation Section 4-48 @ 2021 Alamo Group Inc.
Page 155 OPERATION 11.6 Stopping the Engine 11.7 Emergency Stopping (E-Stop) In emergency situations, the engine and all machine functions can be immediately stopped by pressing an E-Stop button. E-Stop buttons are located on the remote control unit and on both sides of the machine.
Page 156 OPERATION When in work it is recommended that the machine is operated in gear 1 and speed limited, especially when working on steep slopes. Gear 2 is primarily for use when driving the machine between work areas on smooth even terrain where it is safe to use higher speed. Gear Speed Potentiometer The speed potentiometer control determines the maximum travel speed capability of the machine, from 0 –...
Page 157 OPERATION Bias Control Tool Height Control The tool height is controlled by forward and backwards operation of the right- hand joystick; Push the lever forwards to lower the tool. Pull the lever backwards to raise the tool. Float Activation/deactivation (Flail heads) The ‘float’...
Page 158 OPERATION Hood (Accessory) Control Hood control for flail heads is operated using the left-hand joystick; Move the lever to the left to raise the hood Move the lever to the right to lower the hood. For machines fitted with an accessories other than a flail head this control can be used to operate a non-proportional service on that equipment.
Page 159 OPERATION Mow at the speed that you can safely operate and control the tractor and mower. The correct mowing speed depends on terrain condition and grass type, density, and height of cut. Normal ground speed range is from 2 to 5 mph (3-8 kph). Use slow mowing speeds when operating on or near steep slopes, ditches, drop-offs, overhead obstructions, power lines, or when debris and foreign objects are to be avoided.
Page 160 OPERATION 13.1 Working On Slopes When working on slopes do not operate from any position directly below the machine, where possible it is safer to stand in a suitable location above the machine. Do not operate the machine on ground or surfaces that are slippery underfoot. Work and Work Area Precautions The following checks should be made prior to operation in the work area;...
Page 161 OPERATION TO AVOID SERIOUS INJURY OR DEATH FROM SLIDING OR EQUIPMENT ROLLOVER: Never attempt to operate the TRAXX RF with metal cleats or spiked track on concrete hillsides or hard hillside surfaces. Operation of the spiked or cleated track on concrete or hard surface hillsides could result in sudden and violent loss of traction and control of the machine and may result in serious injury or death.
Page 162 OPERATION 14.1 Working Lighting Conditions Never operate the machine in poor lighting conditions Only work in good lighting conditions; you must have a clear view of the machine and the entire work area at all times. If necessary use suitable artificial lighting that complies with local rules and regulations Do not smoke near the machine Fuels, oils and lubricants are flammable –...
Page 163 OPERATION When reversing uphill, do not steer when transferring from the level surface to the slope; if unavoidable the maneuver should be performed gradually. When the machine maneuvers over an obstacle, a space is created between the bearing rollers and the track - this can cause the track to come off its seat.
Page 164 OPERATION 15.EMERGENCY CONTROL UNIT Manual Control Unit (Emergency Track Operation only) A manual control device for track operation is provided with the machine to allow the operator to bypass the radio controller in the event of a controller malfunction. When connected to the machine this devise will allow the operator to start the engine, raise and lower the tool, and maneuver the mower in any direction This feature is primarily for use in an emergency situation to allow...
Page 165 OPERATION The manual track control must only be used for emergency situations or for troubleshooting purposes – never attempt to use this feature for normal work operations. 15.2 Manual Controls Operation (refer to control illustration above) Starting the engine; • Set E-Stop button in the de-activated position.
Page 166 OPERATION 16.MOWER STORAGE It is recommended that the mower be stored fully lowered to ground level. Properly preparing and storing the mower at the end of the season is critical to maintaining its appearance and to help ensure years of dependable service. The following are suggested storage procedures: •...
Page 167 OPERATION 18.TROUBLESHOOTING GUIDE Problem Possible Cause Remedy Track Damage Excessive thread wear. Replace Track Loosening/breaking of internal structural steel rope. Track Slackens Faulty tensioner valve. Replace valve. Frequently Damaged tenioner seal.. Replace seal. Worn tensioner components. Replace worn components. Upper Track Track slide worn.
Page 170 MAINTENANCE HAZARDS WITH MAINTENANCE OF IMPLEMENT AVOID DEATH OR SERIOUS INJURY FROM COMPONENT FAILURE BY KEEPING IMPLEMENT IN GOOD OPERATING CONDITION PERFORMING PROPER SERVICE, REPAIRS AND MAINTENANCE. BEFORE PERFORMING SERVICE, REPAIRS AND MAINTENANCE ON THE IMPLEMENT: • STOP ENGINE, engage parking brake, lower implement, allow all moving parts to stop and remove key. •...
Page 171 Non-genuine "will fit" parts do not consistently meet these specifications. The use of “will fit” parts may reduce mower performance, void mower warranties, and present a safety hazard. Use genuine Alamo Industrial mower parts for economy and safety. (SPAM-1str) See Your Alamo Dealer NOTE: Before operating your TRAXX RC56/75, take the time to inspect and repair any damage to the machine.
Page 172 MAINTENANCE TRACK TYPES AND OPTIONS Standard Rubber Track General duty low disturbance track Super Rubber Track Deep tread rubber tracks for increased traction TRAXX RC56/75 04/21 Maintenance Section 5-4 © 2021 Alamo Group Inc.
Page 173 MAINTENANCE Steel Grouser Track Rubber tracks with 46 steel grousers for increased traction. Spike Kit Spike sets for maximum traction in difficult conditions Kits consist of 46 spike sets (23 per track) complete with fixing bolts and transport blocks. Spike kits are only suitable to fit Grouser Tracks 4500290 Spike Kit Installation To fit the spikes, remove every second grouser by removing the Allen headed bolts and replace with the steel spike treads using the 3 bolts supplied and torque to 70Nm.
Page 174 MAINTENANCE Be certain to clamp or securely support the Spindle Housing and sub-assemblies to prevent injuries to hands and feet due to inadvertent dropping or falling over. Undercarriage Components TRAXX RC56/75 04/21 Maintenance Section 5-6 © 2021 Alamo Group Inc.
Page 175 MAINTENANCE TRACK TENSIONING SYSTEM The tracks on the machine are tensioned using a grease tensioning system. Adjustment to track tension is made by pumping or draining grease through the adjusters located behind cover plates on each side of the undercarriage. When grease is pumped into the track adjuster it expands a cylinder, this moves the track idler wheel forwards exerting tension on the track.
Page 176 MAINTENANCE Wear Limits Track components shown opposite must be replaced as soon as they reach their maximum wear limit; this corresponds to the 100% worn figures stated below. Ø when new 5.12 m (130mm) 10.39 in. (264 mm) 11.42 in. (290mm) Ø...
Page 177 MAINTENANCE Tracks are heavy items; keep clear of the track as it falls to the ground. Track Fitting Procedure Installing the new track is basically a reversal of the removal procedure above; tension the track by pumping grease into the tensioner unit to a pressure of 130-150bar (Max). Refer to track tensioning page for details. Support Springs The hydraulic rams that raise and lower the front mounted tool are equipped with support springs;...
Page 178 MAINTENANCE airflow by automatically adjusting the pitch of the fan blades after a pre-defined time. By default the fan will reverse the airflow every 5 minutes, if required the pre-set time period can be changed via the machines control panel to a time setting of your choice. Time interval can be pre-set in user settings to a minute number in the range 3 - 30.
Page 179 MAINTENANCE Alamo Industrial will only guarantee the hydraulic system of the machine if oil types have not been mixed. Mixing Panolin (or other) synthetic oils with standard mineral oils may severely affect the reliability of the TRAXX RC56/75 hydraulic system, and will void the warranty.
Page 180 MAINTENANCE Daily Engine oil level. Air filter element (Remove air filter cap, clean debris from filter). See Air Filter Cleaning and Replacement Section. Hydraulic oil level. Engine fuel level. Engine fuel water separator: Condition, fuel valve “ON”. Coolant level. Radiator check (Open door, Clean). Fan belt check.
Page 181 MAINTENANCE Every 3000 Working Hours Drain and replace hydraulic oil. Replace hydraulic oil filter Maintenance Schedule (Track Components) Daily Checks Check condition of gear motors. Check track condition; replace tracks when there is less than 10mm of tread remaining or sooner if there are visible signs of deep cuts or cracks.
Page 182 Both scenarios can lead to catastrophic failure of the hydraulic components and costly repairs. Alamo Industrial offers fluids, filters, and oil analysis capabilities to help you maintain your hydraulic powered machine. Please be sure to follow the oil & filter change procedure that is outlined for your mower.
Page 183 MAINTENANCE Checking Engine Oil Level The engine oil specified for use in the TRAXX RC56/75 is Castrol Edge with Syntec, 5W40 Synthetic Motor Oil. This oil has been tested to provide maximum lubrication when the TRAXX RC56/75 is operated on hill in excess of 60º. The use of other no specified synthetic oils or any other brand of standard engine oil may result in the loss of lubrication when operated on hills, and will void the engine...
Page 184 MAINTENANCE COOLANT CHECK To check the coolant level open the lid with the appropriate key, loosen the cap of the radiator (a) slowly making vent the pressure and check with eyes the level of the coolant; coolant level should be roughly 1” above radiator fin.
Page 185 MAINTENANCE • Take the new filter and smear some engine oil on the rubber seal before fitting - screw the filter hand tight, then turn it approximately a further 3/4 of a turn. • Remove filler cap and slowly refill with 7 Quarts of CASTROL SYNTEC or CASTROL EDGE withSYNTEC, 5w40 engine oil.
Page 186 • Incompatibility (Excessive Wear, Sludge, Gumming, Etc.) Alamo Industrial will only guarantee the hydraulic system of the machine if oil types have not been mixed. Mixing Panolin (or other) synthetic oils with standard mineral oils may severely affect the reliability of the TRAXX RC56/75 hydraulic system, and will void the warranty..
Page 187 MAINTENANCE Change filter according to procedure “HYDRAULIC FILTER REPLACEMENT” in maintenance section. NOTE: Always replace filters at the intervals stated in the maintenance schedule using quality original filters as specified and supplied by the manufacturer. • If oil level is too low, top off using the oil required in your machine.
Page 188 MAINTENANCE HYDRAULIC CONTROL VALVE The control valve that controls the hydraulic functions of the machine is located under the vehicle and is only accessible from beneath the machine. When working on this, or any other item located under the machine, great care must be taken to ensure the machine is securely positioned before attempting to access or work on the component.
Page 189 MAINTENANCE • Remove and clean (or renew) the filter element. • Clean out the inside of the filter bowl using a clean rag. • Re-install the filter and refit the filet bowl using a clean rag. • Screw the filter bowl securing ring to a point where the sealing ring seats on the housing and tighten a third of a turn.
Page 190 MAINTENANCE AIR FILTER CLEANING AND REPLACEMENT The procedure for cleaning or replacing the air filter is as follows: 1. Release two hooks and carefully remove the air filter cover. (Step 1) 2. Remove the outer air filter element. (Step 2) 3.
Page 191 MAINTENANCE STEEL TRACKS Tracks equipped with steel treads can be supplied as an alternative to the normal all rubber type. The steel thread version has the additional option of being fitted with steel spikes To fit the spikes remove every second steel tread by removal of the 3 x M8 Allen Head screws, and replace with the steel spike treads using the screws supplied and torque to 52 ft-lbs (70Nm).
Page 192 MAINTENANCE CUTTER UNIT GENERAL MAINTENANCE Mowing is accomplished by a series of knives which rotate at high speed on a shaft. The shaft is driven by a hydraulic motor through a set of drive belts. Belt tension is maintained by a spring-loaded idler pulley. The cutter unit rides on a large roller assembly.
Page 193 MAINTENANCE 3. Loosen the adjuster locknut and turn the adjuster bolt to relieve the belt tension. 4. Remove the old belts and replace with the proper new belts NOTE: All belts should be replaced as a set. 5. Install the new belts and adjust the belt tension. TRAXX RC56/75 04/21 Maintenance Section 5-25 ©...
Page 194 MAINTENANCE 6. Proper belt tension is indicated when 8 to 12 lbs. of force deflects the belt 1/4”. 7. Install front belt cover. Ensure that the grease fitting access hole is aligned with the grease fitting. MOWER CUTTING HEIGHT ADJUSTMENT Loosen the front bolt and remove the rear bolt on both sides.
Page 195 MAINTENANCE ROLLER BEARING REPLACEMENT Securely support mower while removing and installing roller assembly. The roller assembly provides support of the mower during operation and retains the load in all conditions of normal operation. Severe conditions, lack of lubrication, and general abuse may result in failure of the roller shaft bearing or the roller.
Page 196 MAINTENANCE BLADE INSPECTION AND REPLACEMENT The cutter knives are attached to the cuttershaft using hardened bolts and locking nuts. To remove the existing knives, remove the bolts and nuts and discard them. Also discard the spacers and the knives. Replace with new knives, spacers, bolt and nut.
Page 197 MAINTENANCE TIGHTENING BLADE BOLTS Use a torque wrench to properly tighten the knife bolts. Over tightening the bolts may result in binding of the blades during operation and may produce vibration MOWER KNIFE INSPECTION Bolt wear will be pronounced at the blade location. SPACERS COMPACTED Spacers will become compacted on the blade surface and must be replaced..
Page 198 MAINTENANCE FLAIL BLADES INSPECTION Inspect the Blades daily for abnormal wear. REPLACE ALL BLADES on the carrier IMMEDIATELY if any blades have: • Become bent or deformed from its original shape, or • Wear inside the blade bolt hole, or •...
Page 199 MAINTENANCE General Information on Flail Mower Vibration FLAIL MOWERS INFORMATION BULLETIN EXCESSIVE VIBRATION Vibration is a MONSTER and if allowed to continue unchecked, can cause the complete break-up of a machine in a very short time. A properly operated Flail Mower will produce very little vibration. If vibration does occur, the mower should be stopped and the trouble corrected, as warranty does not cover failures resulting from continued operation after something happens to cause the mower to vibrate excessively.
Page 200 MAINTENANCE HYDRAULICS The TRAXX RC56/75 hydraulic system consists of three circuits. The power circuit drives the cuttershaft. The control circuit lifts and tilts the cutter unit, and the drive system operates the tracks. Initial Start-Up Procedures Whenever the hydraulic system is drained in order to service a hydraulic component, the following start-up procedure should be completed.
Page 201 MAINTENANCE FUSES AND RELAYS The fuse box is mounted on the bulkhead in the front compartment of the machine. TRAXX RC56/75 04/21 Maintenance Section 5-33 © 2021 Alamo Group Inc.
Page 202 MAINTENANCE Fuse Identification FUNCTION RATING Fuel Pump (10A) ECU Supply (X5) Trimble Autosteer Starter Work Lights Strobe Lights Spare (15A) Spare (15A) Spare (15A) Main Fuse Spot Lights Daylight Running Lights Charge Lamo PLC Electroniocs Remore Receiver E-Stop LED Supply Glow Plugs Manual Override ECU Supply (X1)
Page 203 MAINTENANCE PROPER TORQUE FOR FASTENERS The chart lists the correct tightening torque for fasteners. When bolts are to be tightened or replaced, refer to this chart to determine the grade of bolts and the proper torque except when specific torque values are assigned in manual text.

This manual is also suitable for:

Built sharper traxx rc56

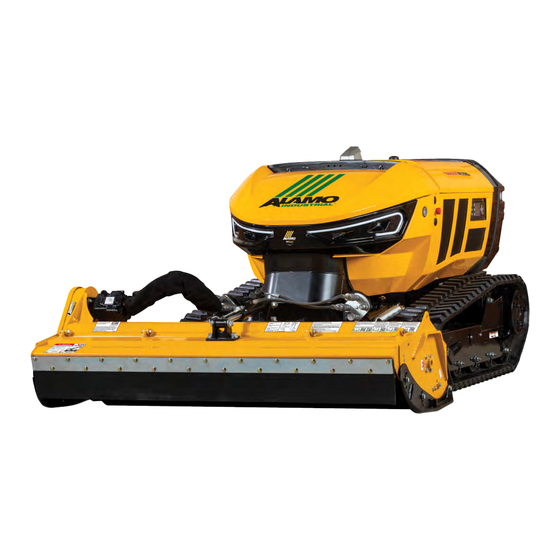

Alamo Industrial BUILT SHARPER TRAXX RC75 Operator's Manual

Quick Links

Need help?

Questions and answers

Related Manuals for Alamo Industrial BUILT SHARPER TRAXX RC75

Summary of Contents for Alamo Industrial BUILT SHARPER TRAXX RC75

This manual is also suitable for:
