Installation Instructions - Altronix AL600ULX Installation Manual

Output
12VDC / 40AH Battery
24VDC / 12AH Battery
24VDC / 40AH Battery
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/NFPA 72/ANSI, and with all local
codes and authorities having jurisdiction. Product is intended for indoor use only.
1. Mount unit in desired location, (Wiring, pg. 6). Mark and predrill holes in the wall to line up with the top two
keyholes in the enclosure. Install two upper fasteners and screws in the wall with the screw heads protruding. Place
the enclosure's upper keyholes over the two upper screws, level and secure. Mark the position of the lower two holes.
Remove the enclosure. Drill the lower holes and install the two fasteners. Place the enclosure's upper keyholes over the
two upper screws. Install the two lower screws and make sure to tighten all screws (Enclosure Dimensions, pg. 6-7).

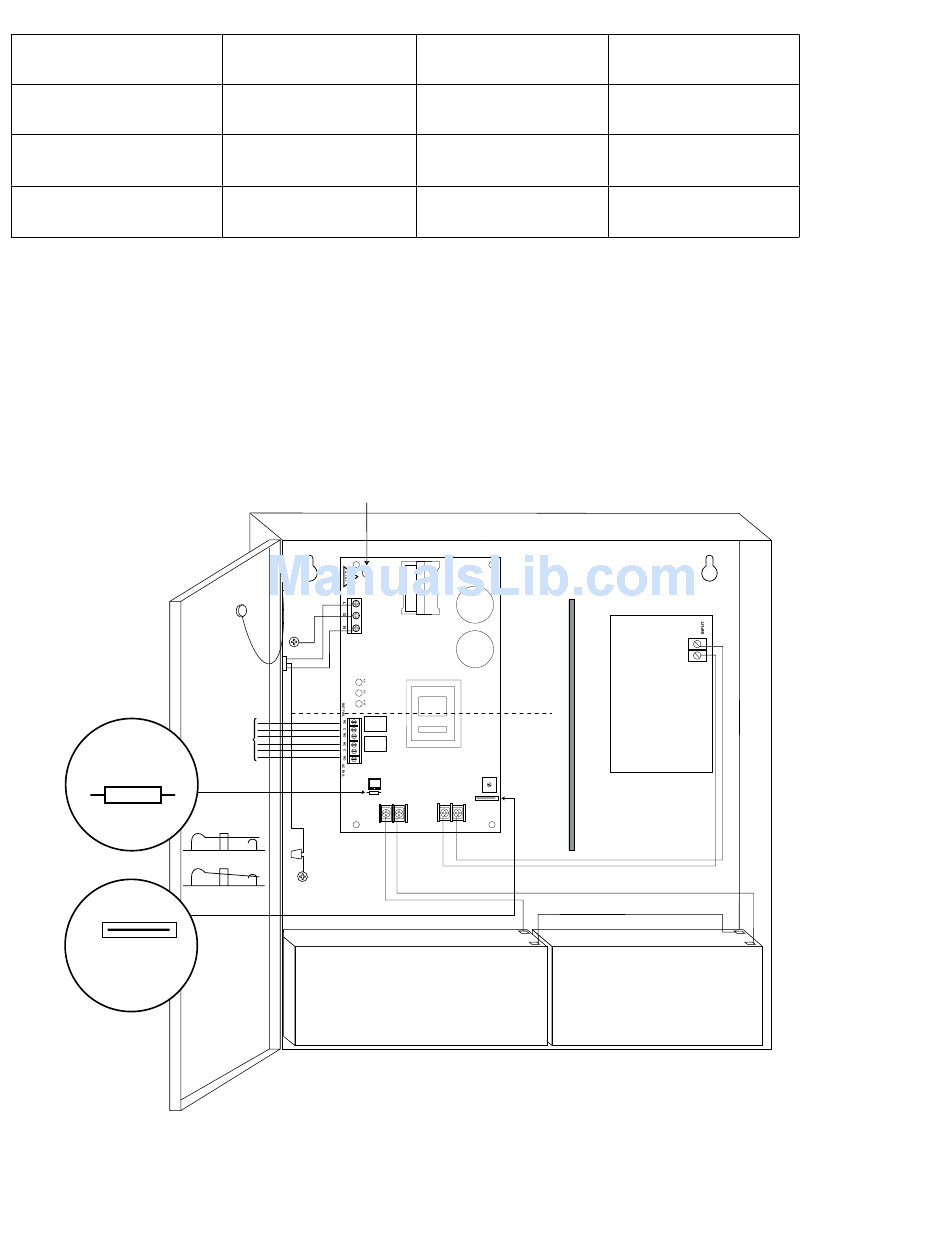

Fig. 1
Door
Fig. 1a
AC Delay
Fig. 1b
OPEN - 24V
CLOSED - 12V
AL600ULX Series
Stand-by Specifications (total current shown):
4 hr. of Stand-by &
5 Minutes of Alarm
Stand-by = 6.0 amp
Alarm = 6.0 amp
- - - - - - - -
Stand-by = 6.0 amp
Alarm = 6.0 amp

Installation Instructions:

CAUTION: De-energize unit prior to servicing. For continued protection against
risk of electric shock and fire hazard replace fuse with the same type and rating
5A, 250V. Do not expose to rain or moisture.
Green
Lead
Wire
Strap
(from
Enclosure
to Door)
115VAC
power mains
non power-
limited
Battery & AC
Supervision
Circuit
(power limited)
OPEN SWITCH
Green
Lead
CLOSED SWITCH
Optional 12VDC Battery*
* 12VDC operation: For 12VDC operation only a single battery is needed. Connect red battery lead to terminal marked
[+ BAT] and to the [positive (+)] terminal of the battery. Connect black battery lead to terminal marked [BAT -] and
to the [negative (-)] terminal of the battery.
24VDC operation: Connect two (2) 12VDC batteries in series.
Keep power limited wiring separate from non-power limited. Use minimum .25" spacing.
24 hr. of Stand-by &
5 Minutes of Alarm
Stand-by = 1.0 amp
Alarm = 6.0 amp
Stand-by = 200mA
Alarm = 6.0 amp
Stand-by = 1.0 amp
Alarm = 6.0 amp
Class 1
OPEN - 24V
CLOSED - 12V
+ BAT --- + DC ---
non power-limited
Battery connection (non power-limited)
60 hr. of Stand-by &
5 Minutes of Alarm
Stand-by = 300mA
Alarm = 6.0 amp
- - - - - - - -
Stand-by = 300mA
Alarm = 6.0 amp
Power
Distribution
Module(s)
Divider
Optional 12VDC Battery*
- 3 -
