Altronix AL600ULXD Installation Instructions

Overview:

The AL600ULXD power supply converts a 115VAC or 230VAC / 50/60Hz input, to a 12VDC or 24VDC non-power
limited output, (see specifications).

Specifications:

• UL Listed fire and access control power supply (UL1481, UL294).
• Switch selectable 12VDC or 24VDC non-power limited output.
• Input 115VAC / 60Hz, 1.9 amp or 230VAC 50/60Hz, .95 amp.
• Maximum charge current .7 amp.
• 6 amp continuous supply current at 12VDC / 24VDC.
• Filtered and electronically regulated output.
• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.
• AC input and DC output LED indicators.
• AC fail supervision (form "C" contacts).
• Low battery and battery presence supervision (form "C" contacts).
• Thermal overload protection.
• Short circuit protection.

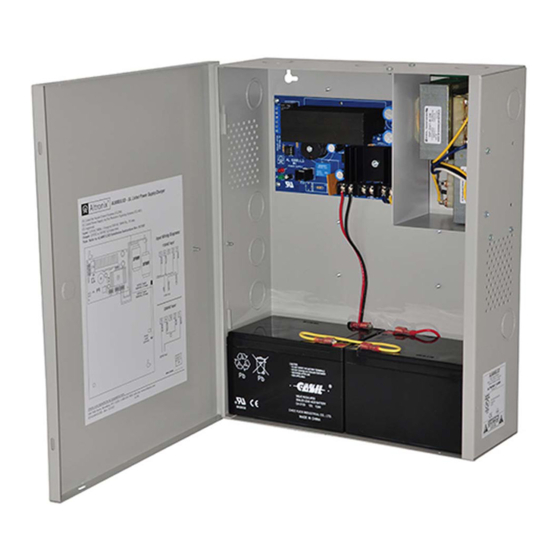

• Unit is complete with power supply, enclosure, cam lock
and open frame transformers.
• Includes battery leads.
Enclosure Dimensions: 15.5"H x 12"W x 4.5"D
Note: Enclosure accommodates up to two (2) 12AH batteries

Power Supply Voltage Output Selections:

Output
12VDC
24VDC

Stand-by Specifications:

Output
12VDC / 40 AH Battery
24VDC / 12 AH Battery
24VDC / 40 AH Battery
Installation Instructions:
The AL600ULXD should be installed in accordance with article 760 of The National Electrical Code or NFPA 72 as
well as all applicable Local Codes.
1. Mount the AL600ULXD in desired location.
2. Connect input power from a separate unswitched AC circuit to the transformers. Secure green wire lead to
earth ground. (Fig. 1).
For 115VAC input: Connect Yellow and White leads from transformer primary to neutral.
For 230VAC input: Connect Blue and Yellow leads of transformer 1 together. Connect Blue and Yellow leads of
Keep power limited wiring separate from non-power limited wiring (115VAC 50/60Hz or 230 50/60Hz Input,
Battery Wires). Minimum .25" spacing must be provided.
AL600ULXD - Power Supply/Charger
Switch Position
SW 1 Closed
SW1 Open
4 hr. of Stand-by &
5 Minutes of Alarm
Stand-by = 6.0 amp
Alarm = 6.0 amp
Stand-by = 6.0 amp
Alarm = 6.0 amp
Connect Blue and Black leads from transformer primary to line (Fig. 2).
transformer 2 together. Connect White lead from both transformers to neutral.
Connect Black lead from both transformers to line (Fig. 3).
24 hr. of Stand-by &
5 Minutes of Alarm
Stand-by = 1.0 am
Alarm = 6.0 amp
Stand-by = 200mA
Alarm = 6.0 amp
Stand-by = 1.0 amp
Alarm = 6.0 amp
60 hr. of Stand-by &
5 Minutes of Alarm
Stand-by = 300mA
Alarm = 6.0 amp
Stand-by = 300mA
Alarm = 6.0 amp
