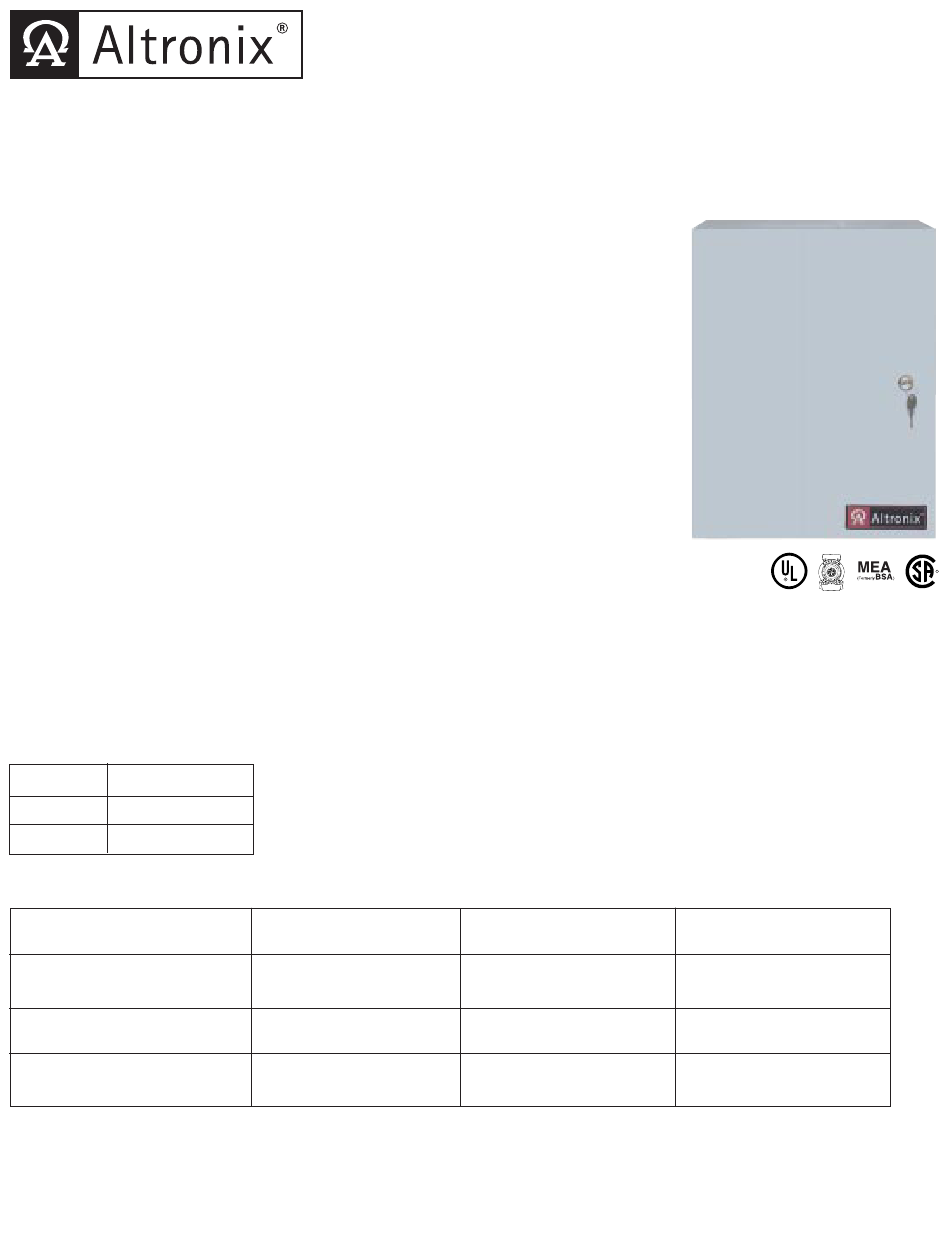

Altronix AL600ULX Installation Instructions

Overview:
The AL600ULX power supply converts a 115 VAC / 60Hz input, to a 12VDC or 24VDC non-power limited output, (see
specifications). The AL600ULX is UL Listed for all fire alarm, and access control applications.
Specifications:
• UL listed fire and access control power supply (UL1481, UL294).
• CSFM approved - California State Fire Marshal.
• MEA approved - NYC Department of Buildings.
• CSA approved (Canada).
• NFPA 72 compliant.
• Field selectable 12VDC or 24VDC non-power limited output.
• Input 115VAC / 60Hz, 1.9 amp.
• Maximum charge current .7 amp.
• 6 amps continuous supply current at 12VDC / 24VDC.
• Filtered and electronically regulated output, 100mV peak output voltage ripple.
• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.
• Zero voltage drop when switched over to battery backup.
• AC input and DC output LED indicators.
• AC fail supervision (form "C" contacts).
• Low battery and battery presence supervision (form "C" contacts).
• Thermal overload protection.
• Short circuit protection.

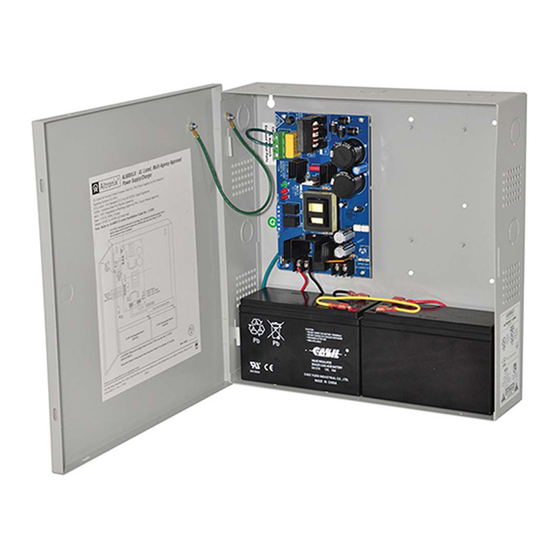

• Unit is complete with power supply, enclosure and cam lock.
• Includes battery leads.
Enclosure Dimensions: 15.5"H x 12"W x 4.5"D
Note: Enclosure accommodates up to two (2) 12AH batteries
AL600ULX-R Enclosure Dimensions: 15.5"H x 12"W x 4.5"D
Power Supply Voltage Output Selections: *
Output Switch Position
12VDC SW 1 Closed
24VDC SW1 Open
Stand-by Specifications:
Output
12VDC / 40 AH Battery
24VDC / 12 AH Battery
24VDC / 40 AH Battery
Installation Instructions:
The AL600ULX should be installed in accordance with article 760 of The National Electrical Code or NFPA 72 as well
as all applicable Local Codes.
1. Mount the AL600ULX in desired location.
Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.
AL600ULX - UL Listed, Multi-Agency Approved
Power Supply/Charger
4 hr. of Stand-by &
5 Minutes of Alarm
Stand-by = 6.0 amps
Alarm = 6.0 amps
Stand-by = 6.0 amps
Alarm = 6.0 amps
24 hr. of Stand-by &
5 Minutes of Alarm
Stand-by = 1.0 amp
Alarm = 6.0 amps
Stand-by = 200mA
Alarm = 6.0 amps
Stand-by = 1.0 amps
Alarm = 6.0 amps
Rev. 091800
60 hr. of Stand-by &
5 Minutes of Alarm
Stand-by = 300mA
Alarm = 6.0 amps
Stand-by = 300mA
Alarm = 6.0 amps
