OWNER'S MANUAL
B-400-1COAX-HDIR
WELCOME TO THE BINARY™ BRAND OF PRODUCTS
This product is engineered to provide years of exceptional reliability. Binary™
is one of the most highly regarded brands available today. We appreciate your
business and we stand committed to providing our customers with the highest
degree of quality and service in the industry.

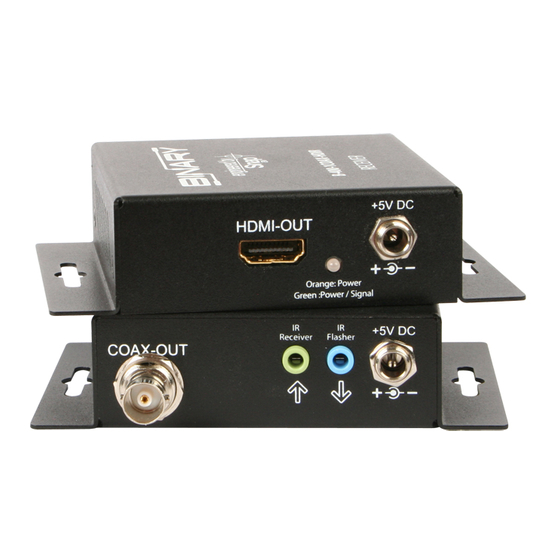

Binary™ HDMI over Single Coax
>>
Extender with IR Pass-Through
Advertisement
Table of Contents
Related Manuals for Binary B-400-1COAX-HDIR
Summary of Contents for Binary B-400-1COAX-HDIR
- Page 1 B-400-1COAX-HDIR WELCOME TO THE BINARY™ BRAND OF PRODUCTS This product is engineered to provide years of exceptional reliability. Binary™ is one of the most highly regarded brands available today. We appreciate your business and we stand committed to providing our customers with the highest...
-
Page 2: Important Safety Instructions
However, like all electronic equipment, the B-400-1COAX-HDIR should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. - Page 3 INTRODUCTION The B-400-1COAX-HDIR extends HDMI over a single coax allowing video and audio transmission up to 400 ft. In addition, the B-400-1COAX-HDIR is equipped with bi-directional IR pass-through allowing users to send IR control up to a distance of 400ft, making IR control possible without any additional wires.
-
Page 4: Input Panel
INPUT PANEL OUTPUT PANEL TRANSMITTER NOTE: Transmission distance up to 400 feet at 1080p (24-Bit) 1. HDMI-IN: Connects to a HDMI source with a HDMI male-to-male cable. (1 meter or shorter HDMI interconnect cable is recommended) 2. LED: Orange = Power but no HDMI input signal. Green = Power and HDMI signal present. 3. MODE (2-pin DIP Switch): Please see table below for detailed information Pin #1 Pin #2 EDID MODE... -
Page 5: Edid Learning
INPUT PANEL OUTPUT PANEL 11 12 13 RECEIVER 8. IR Receiver: Infrared 3.5mm jack for an IR receiver 9. IR Flasher: Infrared 3.5mm jack for an IR flasher 10. COAX-IN: Connect a high-quality coaxial cable to this BNC and link to the transmitting unit 11. HDMI-OUT: Connects to a HDMI display with a HDMI male-to-male cable. (1 meter or shorter HDMI interconnect cable is recommended) 12. -
Page 6: Ir Pass-Through
NOTE: This product was specifically engineered for Episode ® IR products. Use of the following products is highly recommended (items not included). IR Flasher Mini Mono Cable IR Receiver (Episode ® IRF-1 Binary™ B3-MonoMini-.5, ® (Episode IR-SM-3660 or Episode ® IRF-2) B3-MonoMini-1, or B3-MonoMini-2 ® or Episode... -
Page 7: Installation
IR INTEGRATION WITH A CONTROL SYSTEM ® The IR Receiver connection on the Transmitter is designed to operate with Episode IR products. When connecting the Transmitter to an IR Remote Control System or Home Automation system to control the display from the control system, it is necessary to convert the connection from a stereo 3.5mm (1/8”) cable to a mono 3.5mm (1/8”) cable and eliminate 12VDC. Included in the box is an IR Adapter Cable to make this connection very simple. First, connect the male end of the IR Adapter Cable to the IR Receiver jack on the Transmitter. Next, connect a mono 3.5mm (1/8”) cable from the female end of the IR Adapter Cable to the control system. -
Page 8: Warranty
Operation Temperature 32~104°F Storage Temperature -4~140°F Relative Humidity 20~90% RH (no condensation) *Note: Specifications are subject to change without notice. Dimensions and weight are approximate. WARRANTY 2-Year Limited Warranty This Binary™ Product has a Two-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to SnapAV or a designated service center with prior notification and an assigned return authorization number (RA). For Technical Support: 1-866-838-5052...
