5. Preparing procedures & basic operation
(1.) Connect the main unit
Connect the DC INPUT in the rear panel of TG-10STX to an AC to DC
adaptor.
(2.) Basic operation

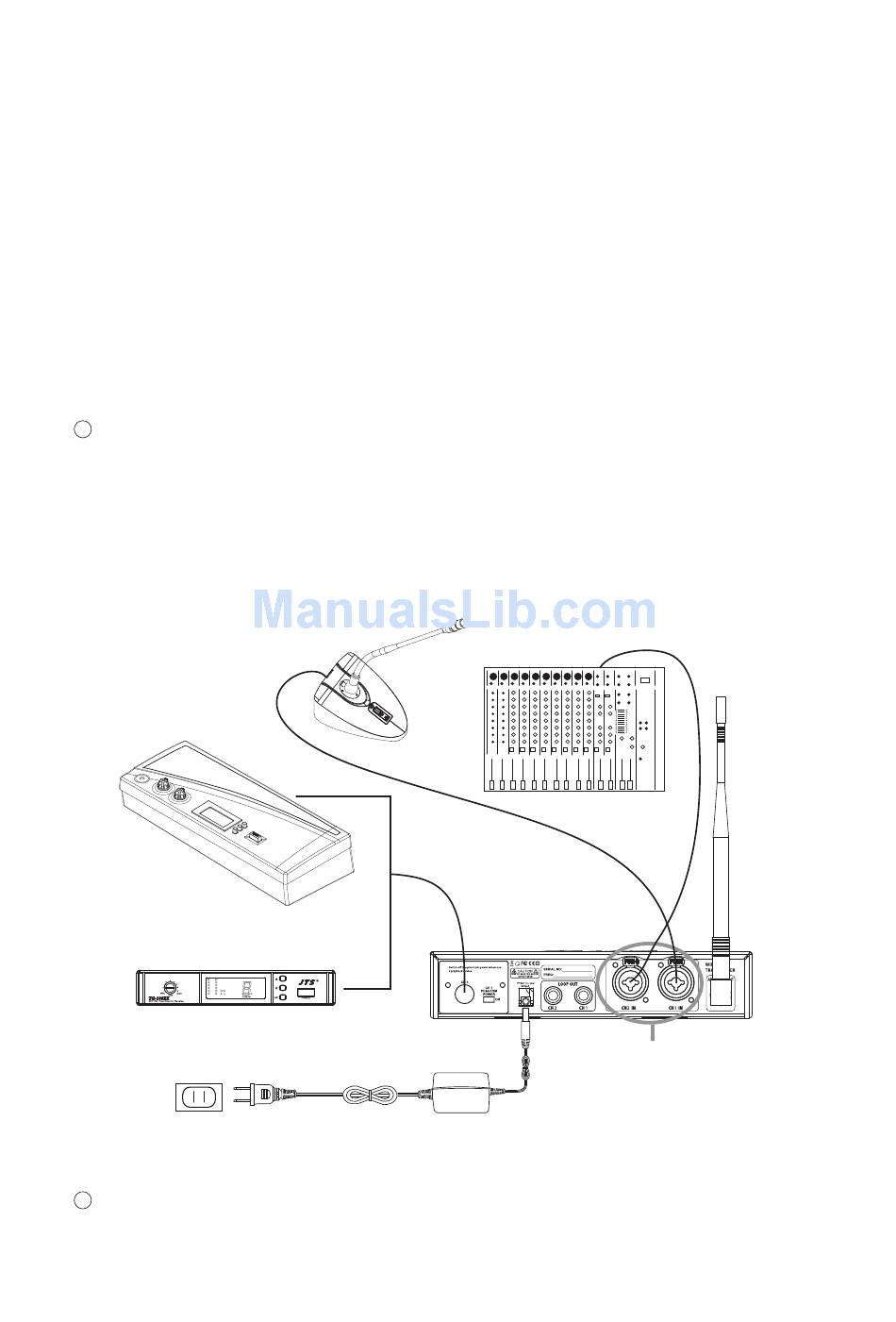

1. Connect the mixer output to the XLR / Ø6.3mm combo CH1 input at the
rear panel of TG-10STX with AF input cable.
2. Connect the gooseneck mic and gooseneck mic base at the XLR / Ø6.3mm
combo CH2 input at the rear panel of TG-10STX with AF input cable.
3. Connect the TG-10SRX or CS-1CU at the Ø6.3mm mono CH3 input at the
rear panel of TG-10STX with AF cable as an source for interpretation.
NOTE:
Two balanced XLR / Ø6.3mm combo inputs are provided. You may use
1
either one input or both for a stereo source. Also, two balanced Ø6.3mm
loop out connectors are provided for multiple systems application.
NOTE:
CH3 is an input signal only for monitoring through monitor headphone
2
and will not be transmitted.
ST-5030i
CS-1CU
OR
TG-10SRX
AC to DC adaptor
3
XLR/φ6.3mm COMBO INPUT
