5. Preparing procedures & basic operation
TG-10STX
(1.) Connect the main unit
Connect the DC INPUT in the rear panel of TG-10STX to an AC to DC adaptor.

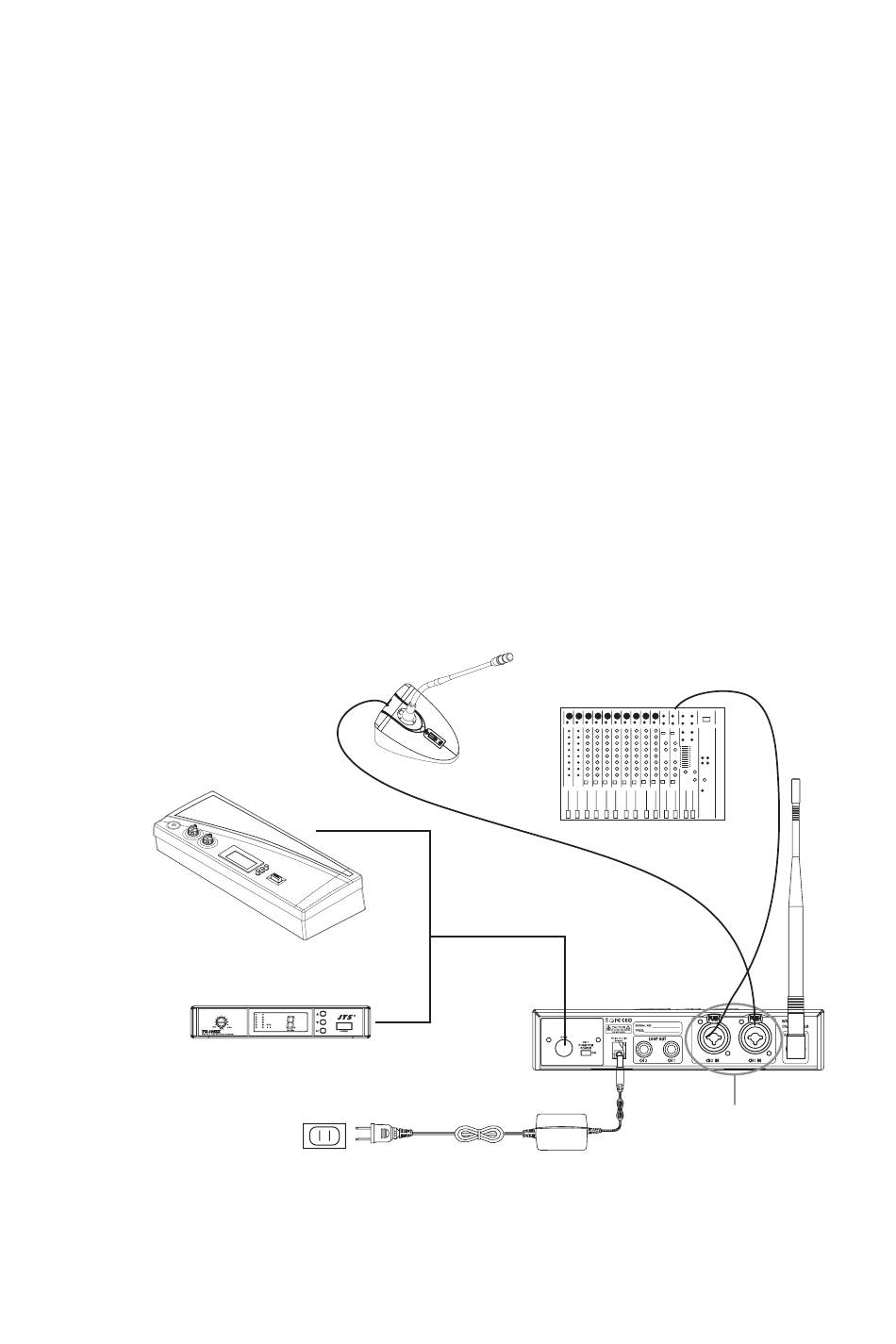

(2.) Basic operation
1. Connect the mixer output to the XLR / Ø6.3mm combo CH1 input at the rear panel
of TG-10STX with AF input cable.
2. Connect the gooseneck mic and gooseneck mic base at the XLR / Ø6.3mm combo
CH2 input at the rear panel of TG-10STX with AF input cable.
3. Connect the TG-10SRX or CS-1CU at the Ø6.3mm mono CH3 input at the rear
panel of TG-10STX with AF cable as an source for interpretation.
NOTE:
1. Two balanced XLR / Ø6.3mm combo inputs are provided. You may use either one
input or both for a stereo source. Also, two balanced Ø6.3mm loop out connectors
are provided for multiple systems application.
NOTE:
2. CH3 is an input signal only for monitoring through monitor headphone and will not
be transmitted.
5
ST-5030i
CS-1CU
TG-10SRX
or
AC to DC adaptor
XLR/Ø6.3mm COMBO INPUT
