5. Preparing Procedures & Basic Operation

5-1 Receiver

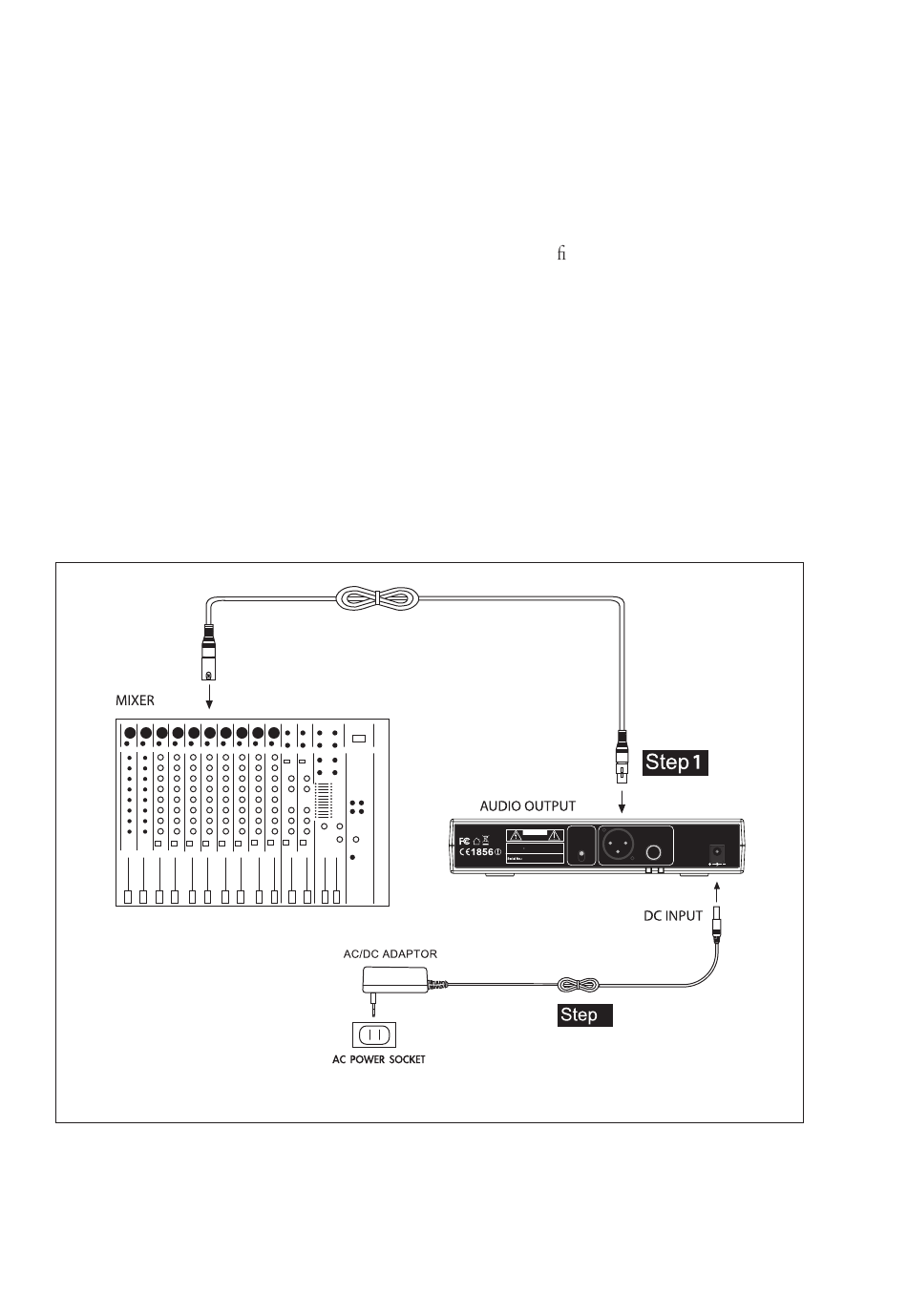

(1) Connect to the subsequent unit (e.g. mixer, or amplifier)
Connect one end of a proper AF cable to the AF Output or Balanced XLR Output socket, then plug
another end to the "MIC IN" input socket of a mixer or a ampli er (Step 1)
(2) Connect the power supply unit
Plug in one end of AC/DC adaptor cable to Power Supply Jack in the rear panel of receiver, and plug
another end into an AC outlet (Step 2)
Caution
To prevent accidental disconnection of the plug from the jack, lead the cable around the hook of the
strain relief.
