Service Manual

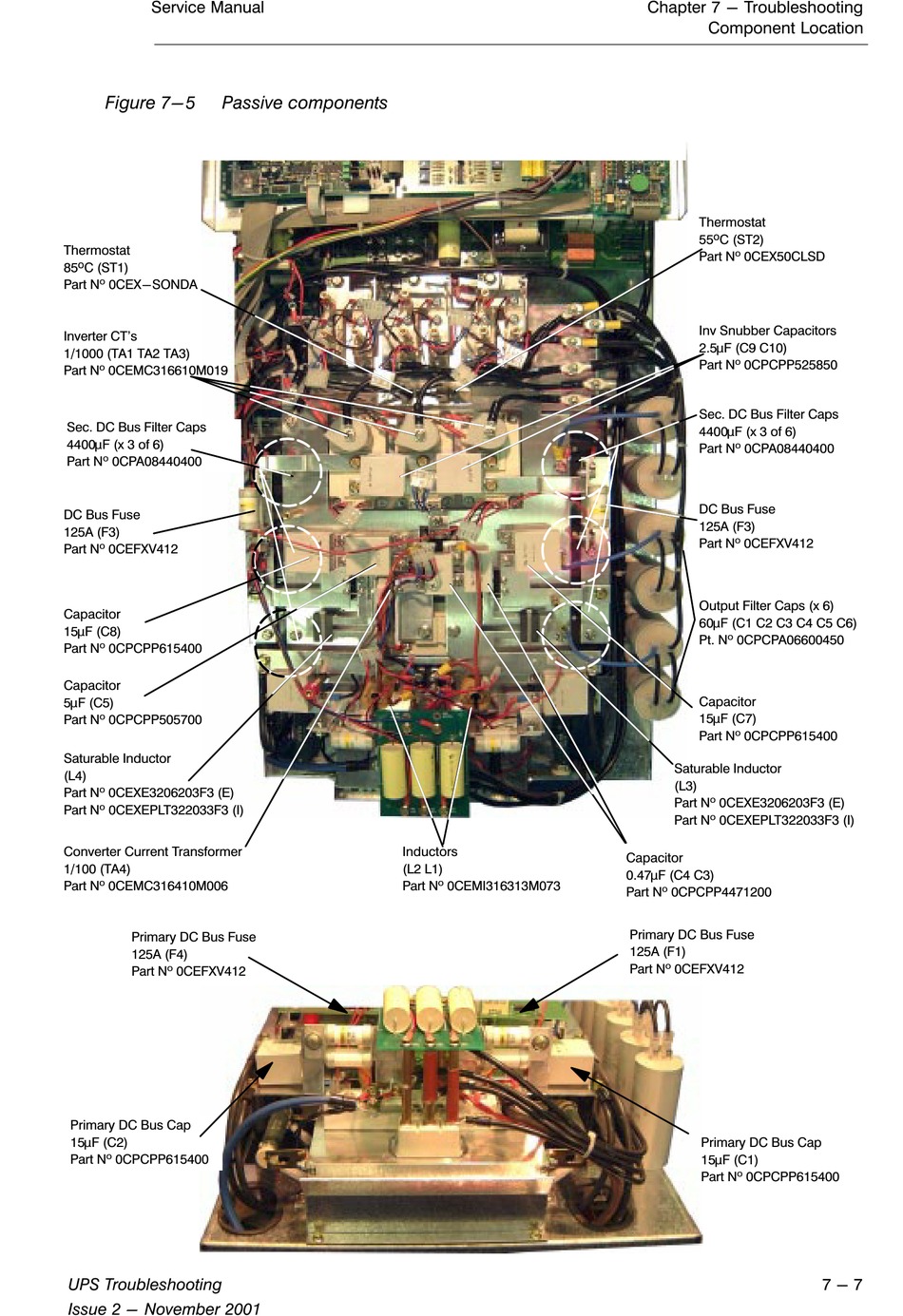

Figure 7-5 Passive components
Thermostat
o
85 C (ST1)
Part Nº 0CEX-SONDA
Inverter CT's
1/1000 (TA1 TA2 TA3)
Part Nº 0CEMC316610M019
Sec. DC Bus Filter Caps
4400ìF (x 3 of 6)
Part Nº 0CPA08440400
DC Bus Fuse
125A (F3)
Part Nº 0CEFXV412
Capacitor
15ìF (C8)
Part Nº 0CPCPP615400
Capacitor
5ìF (C5)
Part Nº 0CPCPP505700
Saturable Inductor
(L4)
Part Nº 0CEXE3206203F3 (E)
Part Nº 0CEXEPLT322033F3 (I)
Converter Current Transformer
1/100 (TA4)
Part Nº 0CEMC316410M006
Primary DC Bus Fuse
125A (F4)
Part Nº 0CEFXV412
Primary DC Bus Cap
15ìF (C2)
Part Nº 0CPCPP615400
UPS Troubleshooting
Issue 2 - November 2001
Inductors
(L2 L1)
Part Nº 0CEMI316313M073
Chapter 7 - Troubleshooting
Component Location
Thermostat
o
55 C (ST2)
Part Nº 0CEX50CLSD
Inv Snubber Capacitors
2.5ìF (C9 C10)
Part Nº 0CPCPP525850
Sec. DC Bus Filter Caps
4400ìF (x 3 of 6)
Part Nº 0CPA08440400
DC Bus Fuse
125A (F3)
Part Nº 0CEFXV412
Output Filter Caps (x 6)
60ìF (C1 C2 C3 C4 C5 C6)
Pt. Nº 0CPCPA06600450
Capacitor
15ìF (C7)
Part Nº 0CPCPP615400
Saturable Inductor
(L3)
Part Nº 0CEXE3206203F3 (E)
Part Nº 0CEXEPLT322033F3 (I)
Capacitor
0.47ìF (C4 C3)
Part Nº 0CPCPP4471200
Primary DC Bus Fuse
125A (F1)
Part Nº 0CEFXV412
Primary DC Bus Cap
15ìF (C1)
Part Nº 0CPCPP615400
7 - 7
