Chapter 2 - Installation
Battery Installation

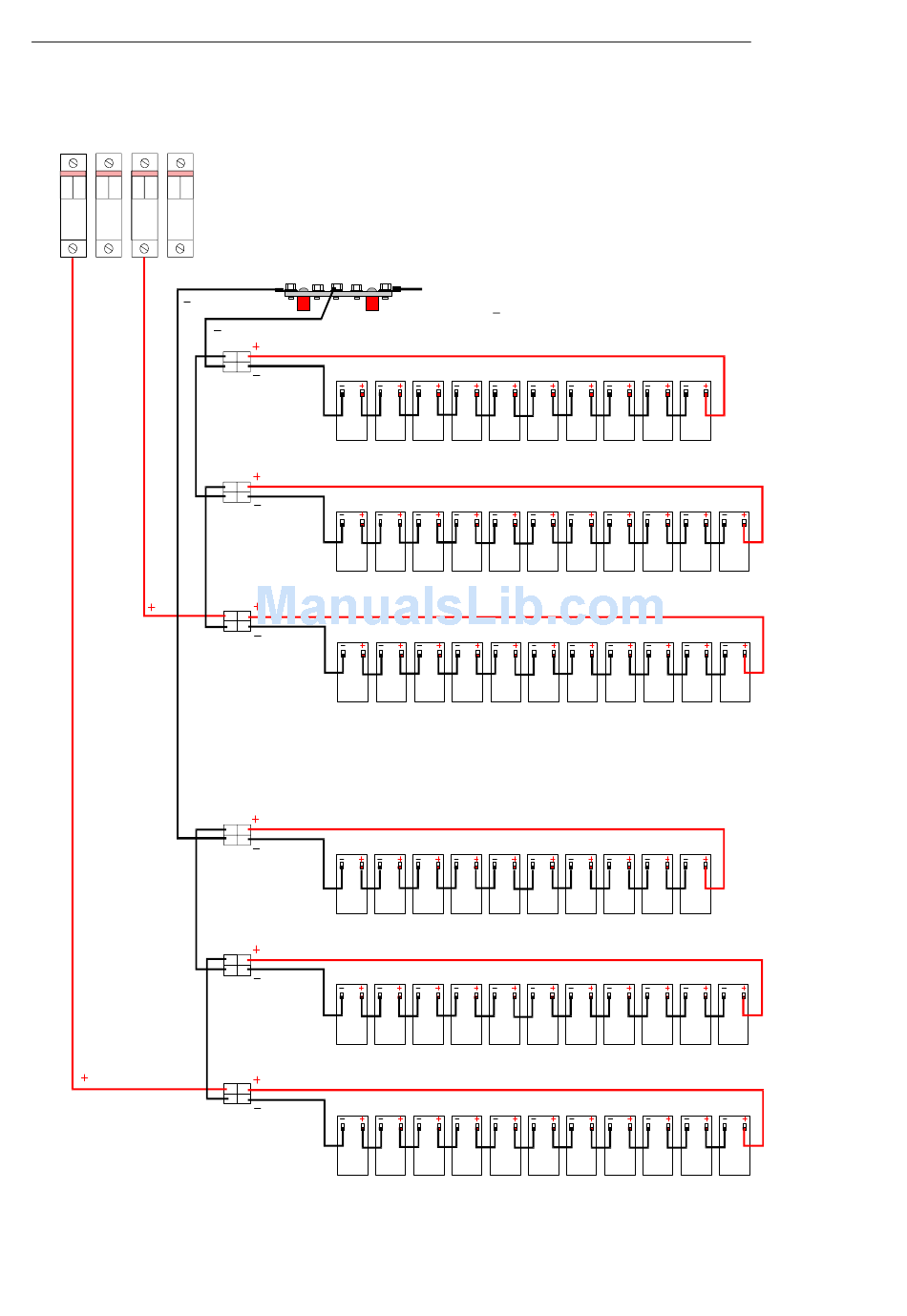

Figure 2-4
Battery Cable Connections for one string
F1
F2
F3
F4
Note: Battery strings 1 & 3 shown connected
2 - 8
Battery Fuses
CN1
CN2
CN3
CN1
CN2
CN3
Service Manual
Battery ve Connection Bar
Battery String 3 Top Battery Tray (10)
Battery String 3 Middle Battery Tray (11)
Battery String 3 Bottom Battery Tray (11)
Battery String 1 Top Battery Tray (10)
Battery String 1 Middle Battery Tray (11)
Battery String 1 Bottom Battery Tray (11)
3x3 UPS Installation
Issue 2 - November 2001
