Chapter 4 - Operation and control

4.1 -

Operator Control Panel

Introduction
On the front of the UPS there is a control panel, from which it is possible to easily verify the status of the UPS, battery
and alarms. The operator control panel consists in a LCD display that indicates the operational and alarm status of
the UPS and the EPO push-button that is located at the left side.
The LCD Display Panel displays textual messages and operating parameters on a LCD screen capable of showing
4 rows of 20 characters.
The displayed screen is organized in a multi-level menu system and selected by using push button located to the
right of the screen

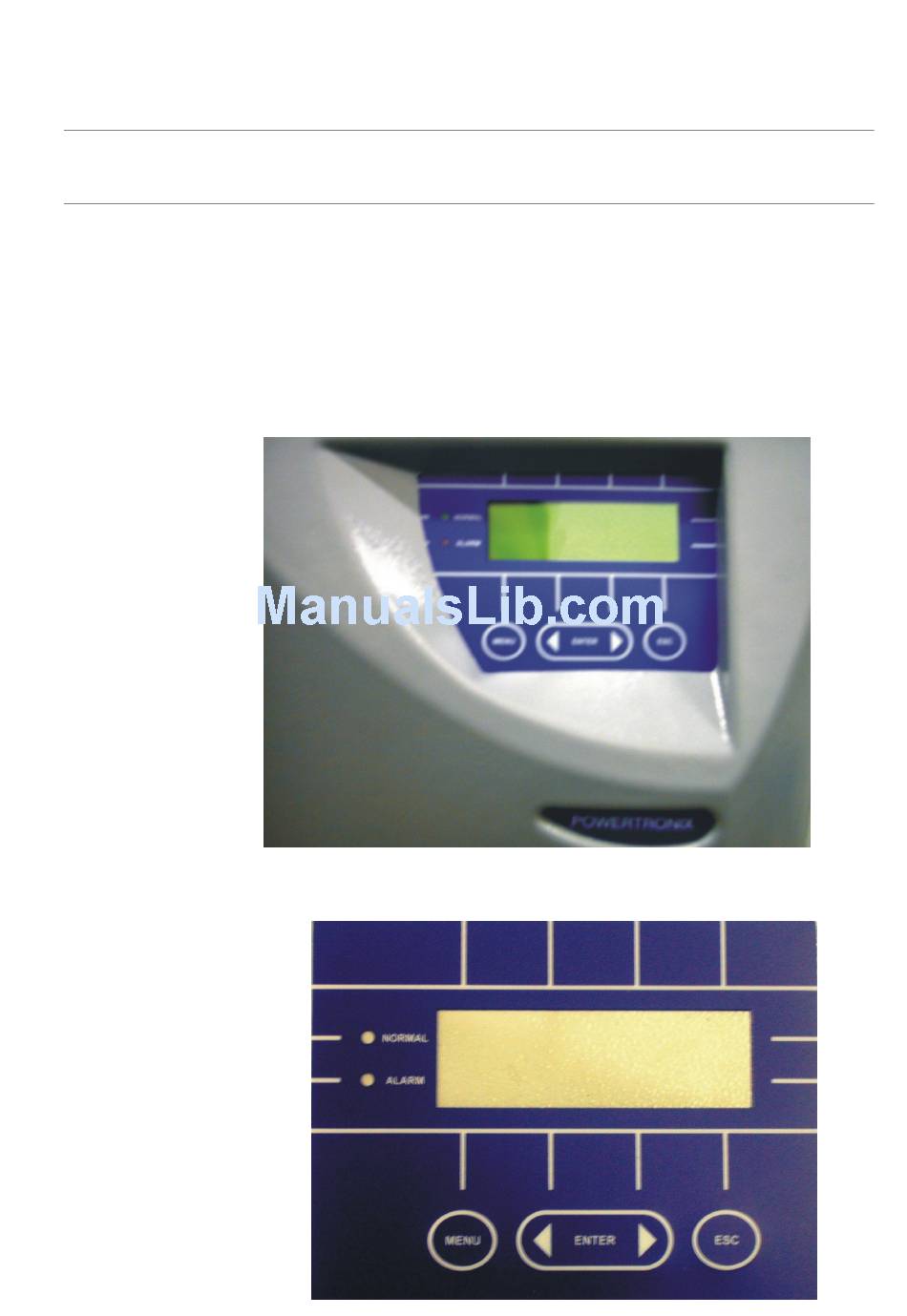

Figure 4-1
LCD control panel
Figure 4-2
3x3 UPS Operation and control
Issue 2 - November 2001
UPS Operator control panel
LCD Display make-up
4 - 1
