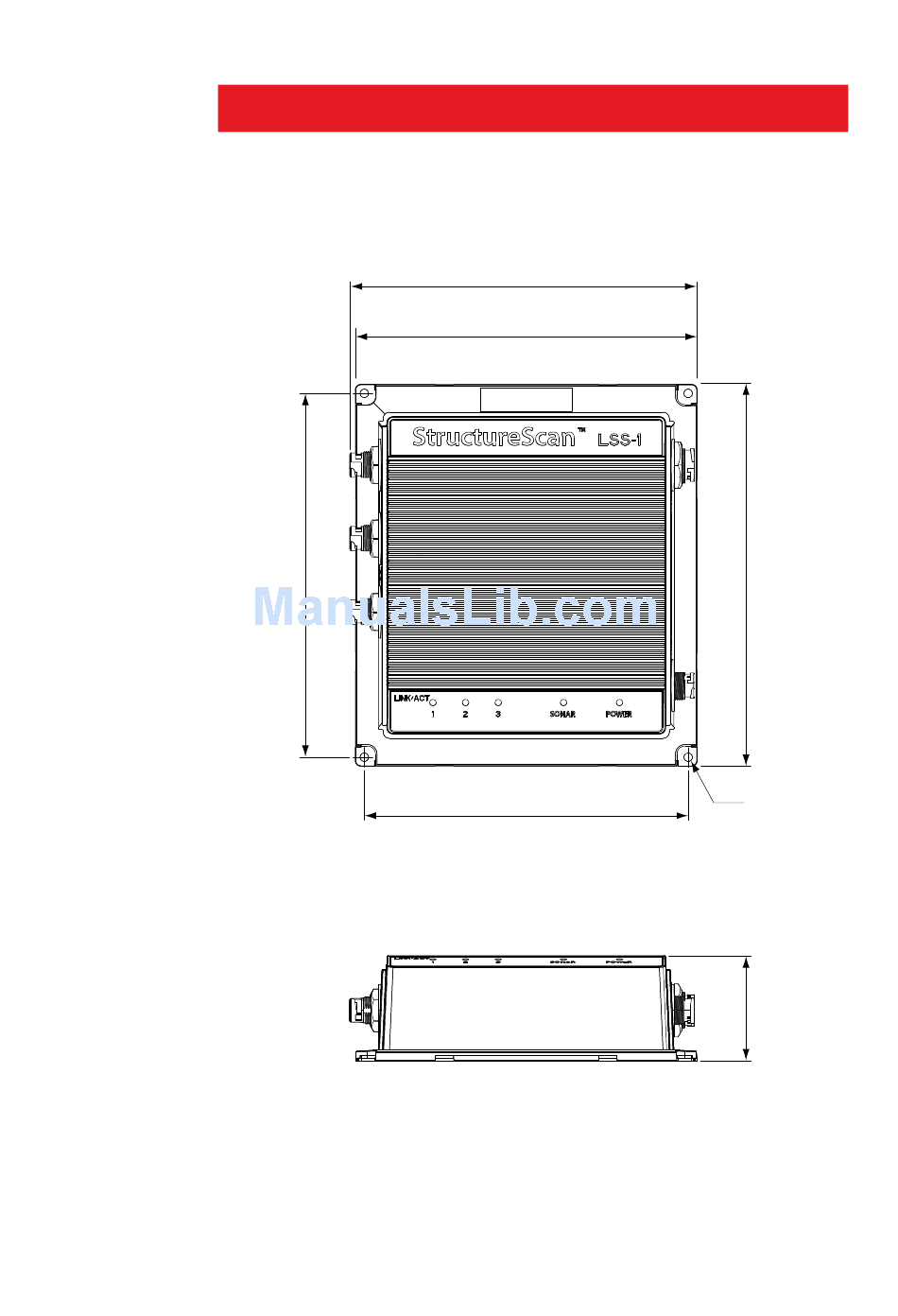

LSS-1 dimensions

12 | StructureScan LSS-1 Installation manual

Drawings

200 mm

(7.87")

191 mm (7.5")

188 mm (7.4")

178 mm (7.0")

210 mm

(8.26")

ø 4.7 mm

(0.185")

58 mm

(2.27")
