- Page 1 Manual Simrad StructureScan™ LSS-1 Sonar Module English www.simrad-yachting.com A brand by Navico - Leader in Marine Electronics...
- Page 3 Feedback from you Your feedback is important and helps Navico ensure that this manual is a valuable resource for all marine technicians. E-mail your comments or suggestions about this manual to the following address: tech.writing@navico.com StructureScan LSS-1 Installation manual | 1...
- Page 4 Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that of the receiver • Consult the dealer or an experienced technician for help 2 | StructureScan LSS-1 Installation manual...
-
Page 5: Table Of Contents
Connecting the LSS-1 to your display ..7 Connecting the transducer .....7 Power connection ........8 Specifications ..........10 Spare parts and accessories ......11 Spare parts ........11 Assessories ........11 Drawings ............. 12 LSS-1 dimensions ........12 StructureScan LSS-1 Installation manual | 3... -
Page 6: Introduction

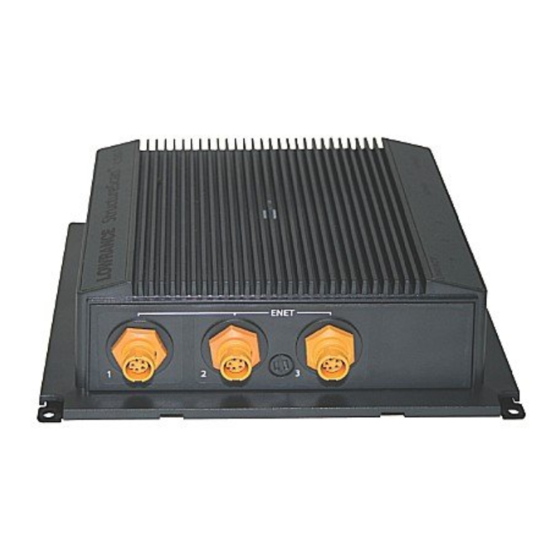

For spare parts and part numbers, see Parts list page Item Description. LSS-1 Black box module 4 pin power cable Fuse, 3A Automotive Type Fuse holder Yellow Ethernet caps Close end crimp connector Phillips stainless steal screws (#8) Warranty This manual 4 | StructureScan LSS-1 Installation manual... -
Page 7: Required Tools And Supplies
System booting On - Green System operating Power Slow flashing Product in factory mode; - Red/green Ethernet communication working Product in factory mode; no Fast flashing - Ethernet communication (cable Red/green unplugged or bad cable) StructureScan LSS-1 Installation manual | 5... -
Page 8: Installation And Wiring
Radio or AIS Transmitter Make sure the transducer cable is long enough to connect to the LSS-1. If not, an extension cable is available. For transducer cable length see Spare parts and accessories, page 11. 6 | StructureScan LSS-1 Installation manual... -
Page 9: Mounting The Lss-1 Module
The LSS-1 connects to your display over an Ethernet network, either directly or via an Ethernet network switch. Connecting the transducer The StructureScan transducer connects to the LSS-1 with the cable supplied with the transducer. StructureScan LSS-1 Installation manual | 7... -
Page 10: Power Connection
Power Control Black Black Fuse Yellow Yellow Blue 12 V DC Switch (no connect) Blue 12 V DC (no connect) Color Signal Black 12 V battery - Blue 12V battery + Yellow Ignition sense 8 | StructureScan LSS-1 Installation manual... - Page 11 LSS-1 to be powered off when not in use. Reference Description Ethernet cable StructureScan Transducer cable StructureScan Y-cable (option) For part numbers, see Spare parts and assessories on page 11. StructureScan LSS-1 Installation manual | 9...
-
Page 12: Specifications
WPK: 4000W Current drain: ..........Max: 0.75 A Typical: 0.60 A Inrush: 4.7 A pk Communication Ethernet: ............. 3 ports Shared device support: ..........3 Transducer Number of devices support: ..........1 Frequencies: ........455kHz and 800kHz 10 | StructureScan LSS-1 Installation manual... -
Page 13: Spare Parts And Accessories
Ethernet cable, 1.8 m (6 ft) 000-0127-29 Ethernet cable, 4.6 m (15 ft) 000-0127-30 Ethernet cable, 7.6 m (25 ft) 000-0127-37 Ethernet cable, 15.2 m (50 ft) Kit of 4 replacement caps for 000-0124-70 connectors StructureScan LSS-1 Installation manual | 11... -
Page 14: Drawings
Drawings LSS-1 dimensions 191 mm (7.5”) 188 mm (7.4”) 200 mm 210 mm (7.87”) (8.26”) ø 4.7 mm 178 mm (7.0”) (0.185”) 58 mm (2.27”) 12 | StructureScan LSS-1 Installation manual...
