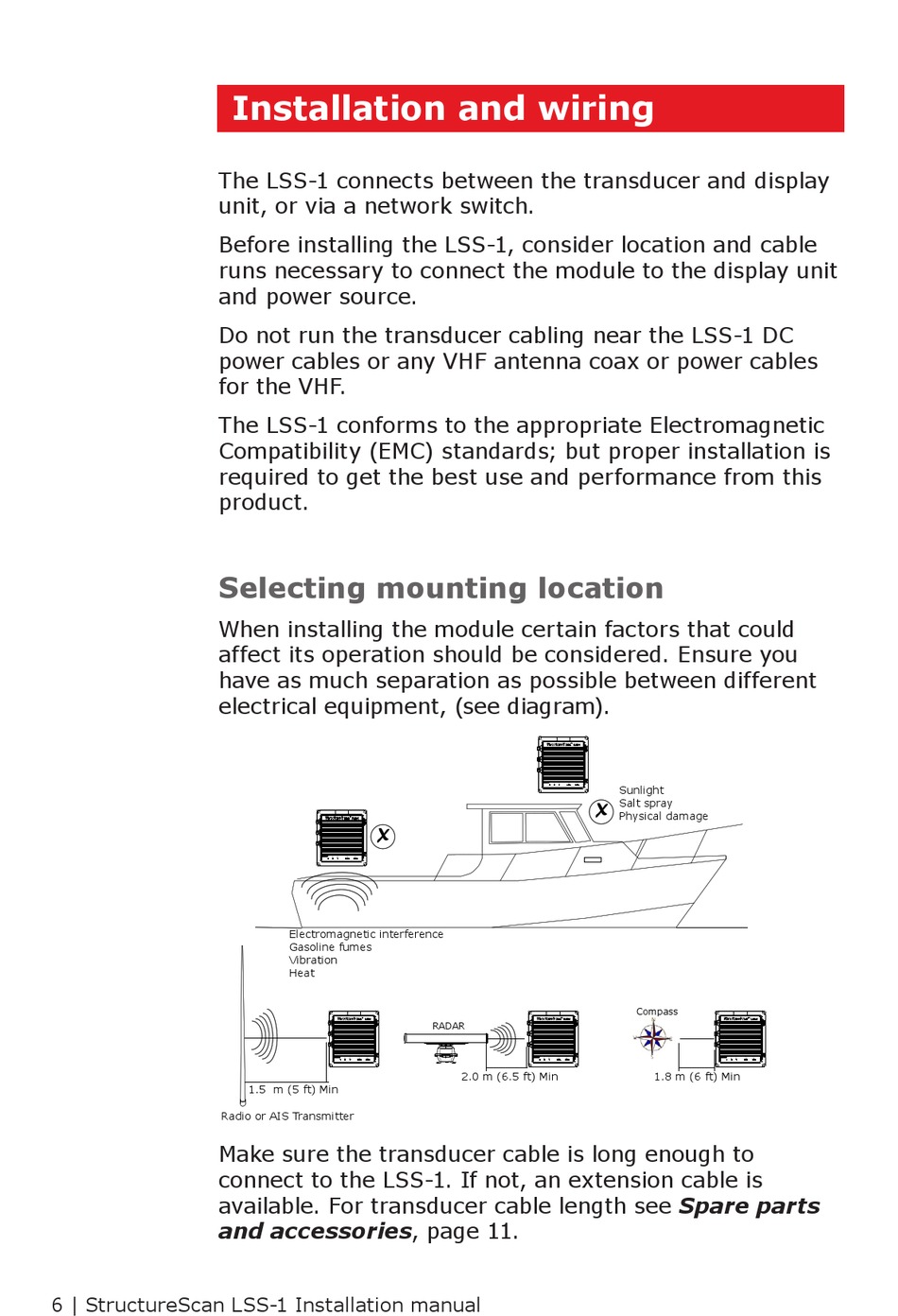

The LSS-1 connects between the transducer and display
unit, or via a network switch.
Before installing the LSS-1, consider location and cable
runs necessary to connect the module to the display unit
and power source.
Do not run the transducer cabling near the LSS-1 DC
power cables or any VHF antenna coax or power cables
for the VHF.
The LSS-1 conforms to the appropriate Electromagnetic
Compatibility (EMC) standards; but proper installation is
required to get the best use and performance from this
product.
Selecting mounting location
When installing the module certain factors that could
affect its operation should be considered. Ensure you
have as much separation as possible between different
electrical equipment, (see diagram).
Make sure the transducer cable is long enough to
connect to the LSS-1. If not, an extension cable is
available. For transducer cable length see Spare parts
and accessories, page 11.
6 | StructureScan LSS-1 Installation manual
Installation and wiring
X
Electromagnetic interference
Gasoline fumes
Vibration
Heat
1.5 m (5 ft) Min
Radio or AIS Transmitter
X
RADAR
2.0 m (6.5 ft) Min
Sunlight
Salt spray
Physical damage
Compass
1.8 m (6 ft) Min
