NSE
Power
Control
bus
Black
Fuse
_
+
12 V DC
8 | StructureScan LSS-1 Installation manual

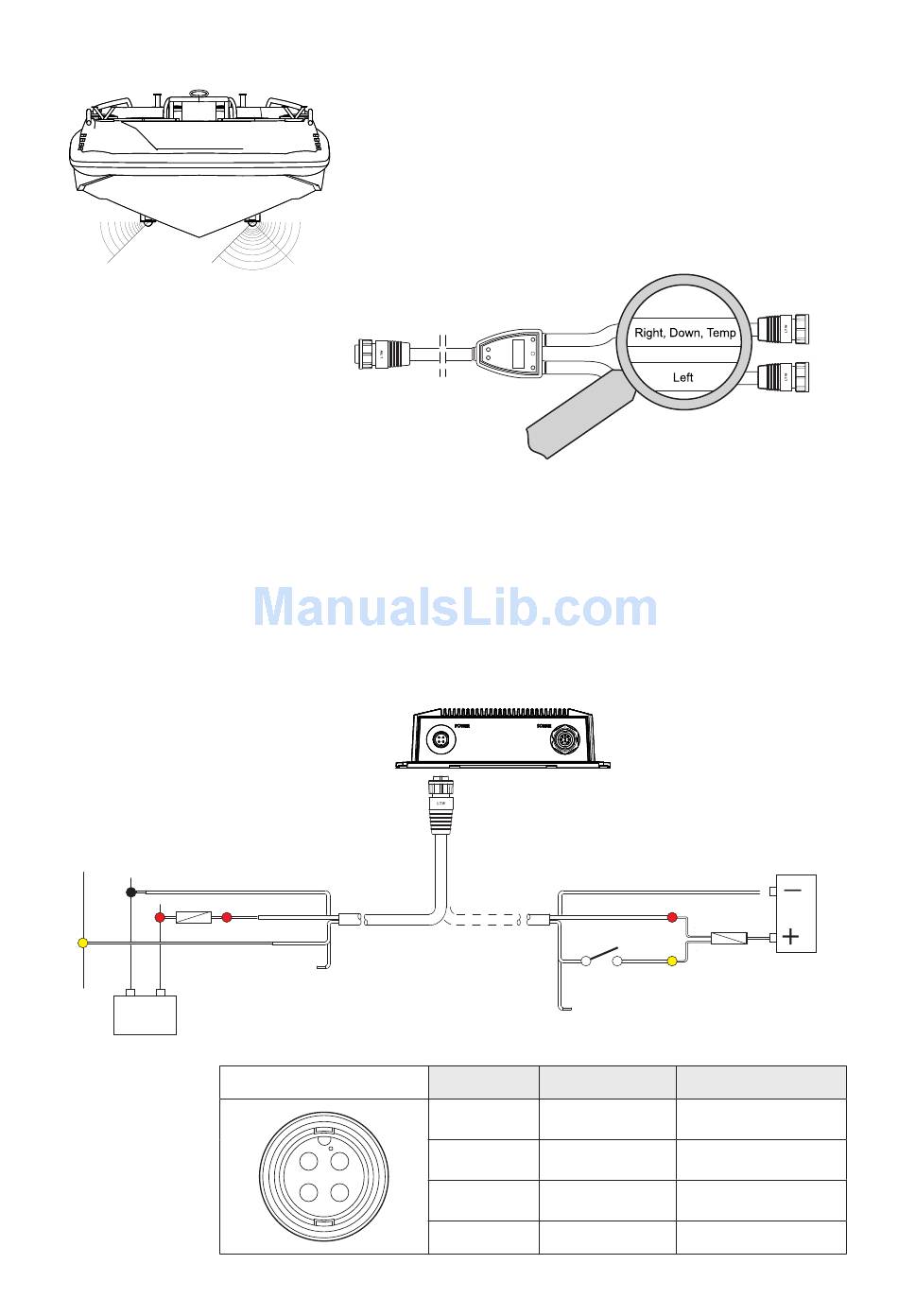

On boats with large dead rise angle two
StructureScan transducers can be used.
They are connected to the LSS-1 by using
the optional Y cable.
Connect the transducers according to the
labeling on the Y-cable.

Power connection

The unit will turn on when power is applied.
It is recommended to connect the LSS-1 to NSE Power
control bus (A), and set NSE to power control master.
Alternatively the unit can be powered directly from the
vessel's battery (B).
A
Red
Yellow
Blue
(no connect)
4 1
3 2
B
Black
Red
Yellow
Switch
Blue
(no connect)
Pin Color
1 Black
2 Blue
3 Red
4 Yellow
12 V DC
Signal
12 V battery -
NC
12V battery +
Ignition sense
