4. See Figure 27. The gobo animation wheel has a magnetic hub with a slot A for the key B in the
animation wheel.
5. See Figure 28. For easiest access, rotate cog C in the animation wheel positioning system to move the
animation wheel out as close as possible to the edge of the module. Using a flat-headed screwdriver D,
apply gentle pressure to the center of the animation wheel to carefully lever it off its hub and release it.
The wheel is delicate. Avoid bending it during removal and storage.
C
6. To install an animation wheel, check first that the wheel is perfectly flat. Slight warping of the wheel can
be corrected by applying gentle pressure. Then lower the wheel into the module so that its key will line
up with the slot in the hub. Place the wheel in position over the hub and apply gentle pressure from a
flat-bladed screwdriver as close as possible to the center of the wheel to press the wheel into position.
Check that the key in the wheel is engaged in the slot in the hub and that the wheel is held securely.
Rotate the wheel with a finger to check that it is seated flat against the hub and that it has not become
warped during installation. If necessary, remove, correct any warping and reinstall.
7. If no further service work is to be carried out, reinstall the module and head covers as described in
"Access to the framing module" on page 18 and "Access to the head" on page 17. Release the tilt lock
before reapplying power.
26
A

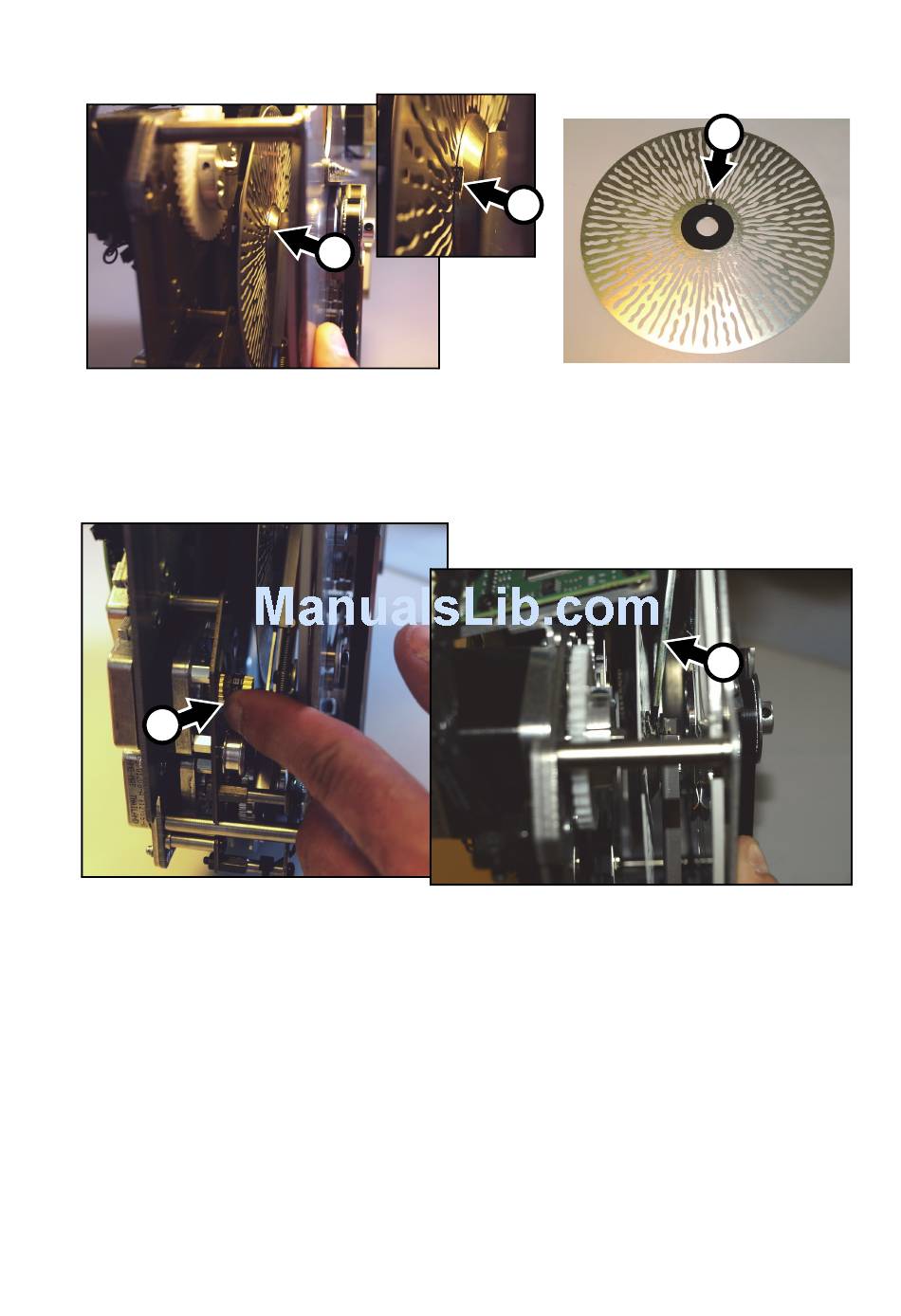

Figure 27: Animation wheel key
Figure 28: Removing the animation wheel
MAC Viper Performance Safety and Installation Guide
A
B
D
