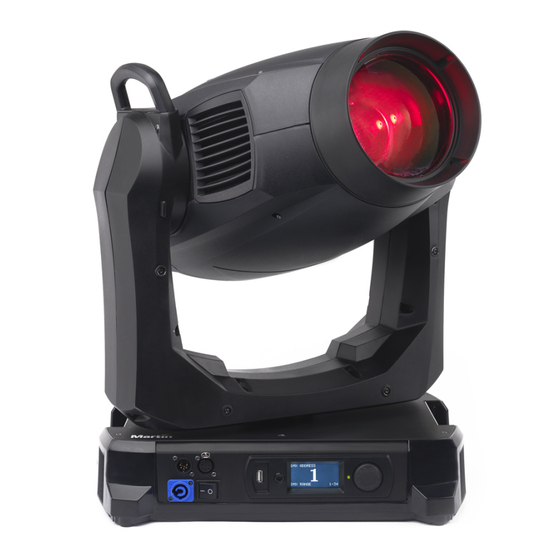

MAC Viper Profile
The MAC Viper Profile is a new breed of high-output profile
luminaire with an exceptional feature set and highly efficient
optical system that outperforms market-leading profiles in the
1200-watt range. Its 1000-watt HID source is convincingly
brighter than 1200-watt fixtures and the MAC Viper Profile also
outperforms them in terms of speed and compactness. Power
consumption is lower and output is approximately 55% more
efficient.
·
26000 lumens Excellent light quality with a very flat and uniform field
·
1:5 zoom Fast zoom with auto-linked focus
·
Fat beam front lens The 140 mm front lens exceeds the size of any other fixture in this segment for just
the right fat beam look
·
5 + 5 rotating gobos All glass gobos with optimal focal separation for superior morphing effects
·
FX wheel Patent-pending FX wheel provides an additional 4 fixed gobos and 135° animation effect
·
CMY Vibrant color mixing with a superior palette of colors including true reds, rich ambers, primary green
and deep blues
·
8-slot color wheel Fixed colors for added color choice
·
Linear CTO Daylight to tungsten CCT control and expansion of the CMY palette
·
Dimmer and shutter - Combined dimmer/shutter system with intensity effects, instant blackout/open and
smooth fades
·
Iris Fast and tight iris with adjustable dynamic effects
·
Strobe Diverse strobe effects using mechanical or electronic control or in combination
·
Soft frost A light frost leaves gobo artwork visible with a beautiful soft edge. Includes a linear focus blurring
option
·
4-facet prism Real beam separation with rotation and index control for dynamic effects and accurate tiling
Length (Head):
566 mm (22.3 in.)
Width:
472 mm (18.6 in.)
Width (Base):
335 mm (13.2 in.)
Height (head straight up):
731 mm (28.8 in.)
Height (maximum):
748 mm (29.4 in.)
Weight:
36 kg (79.4 lbs.)
Approved lamp:
Osram HTI 1000/PS Lok-it
Type:
1000 W short-arc discharge
Color temperature:
6000 K
CRI (Color rendering index):
>85
Average lifetime:
750 hours
Socket:
PGJ28 Lok-it
Ballast:
Electronic
Color mixing:
CMY, independently variable 0 - 100%
Color temperature control:
CTO, variable 6000 - 3200 K
Color wheel:
8 interchangeable dichroic filters + open, indexing, continuous rotation, random color
Aerial wheel:
5 interchangeable aerial effects + open, indexing, continuous rotation and shake
Breakup wheel:
5 interchangeable texture/breakup gobos + open, indexing, continuous rotation and shake
FX wheel:
Interchangeable static gobo and gobo animation effects
Prism:
Interchangeable 4-facet rotating prism
Iris:
0 - 100%, pulse effects
Frost:
Frost filter
Olof Palmes Allé 18
8200 Århus N
TM
Denmark
Tel. +45 87 40 00 00
1
Fax +45 87 40 00 10
