Summary of Contents for DMP Electronics eBox-3300

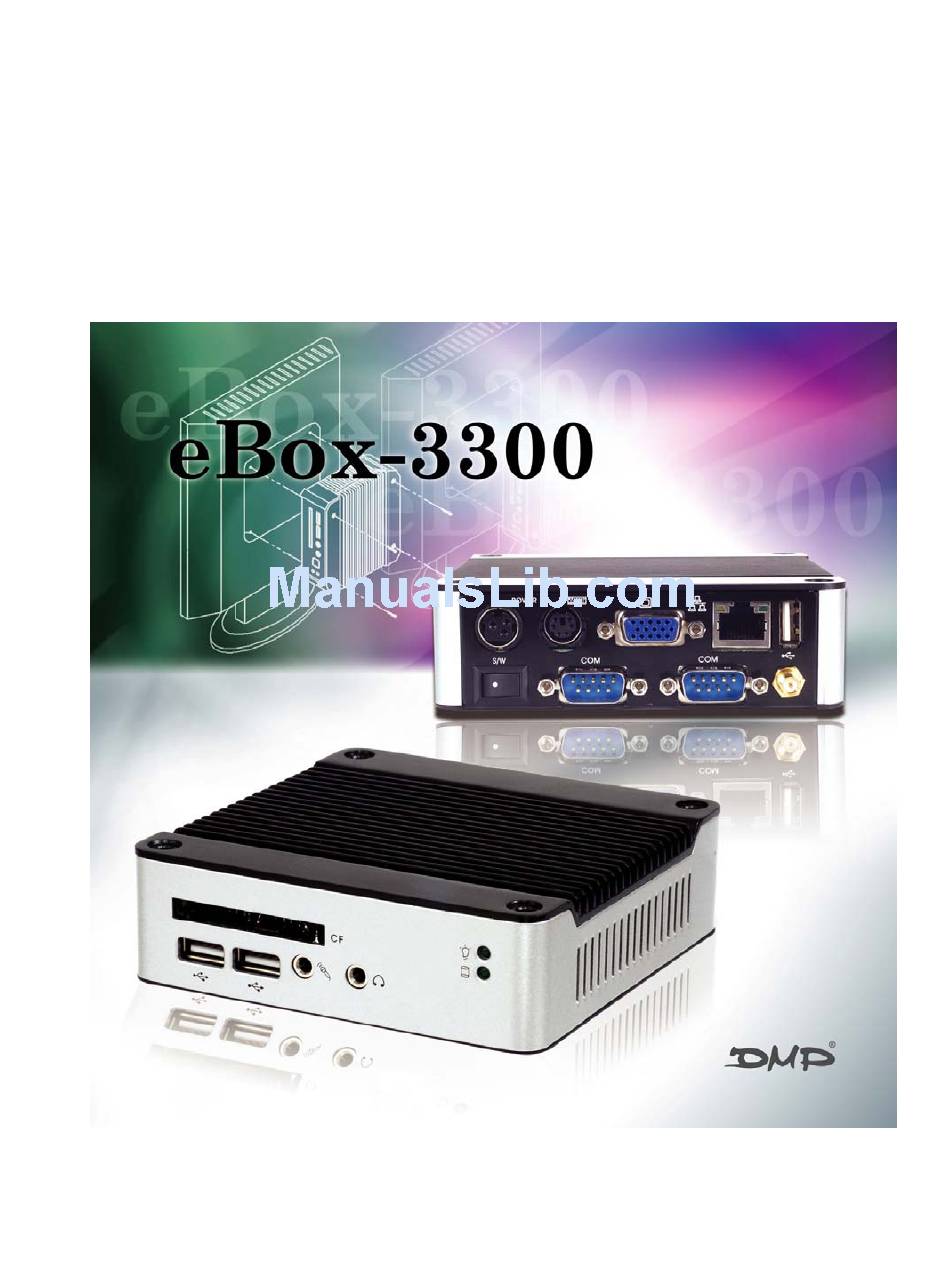

- Page 1 User’s Manual...
- Page 2 Updates and additions to software may require an additional charge. Subscription to online service providers may require a fee and credit card information. Financial services may require prior arrangements with participating financial institution. eBox-3300...
- Page 3 WNER ECORD The serial number of this product is located at the rear panel of your eBox-3300 series. Refer to the model and serial number when you contact your nearest dealer offices for services. The Model No. of this product is also indicated on the product label of your gift box as: eBox-3300, eBox-3300-H, eBox-3300-M, eBox-3300-L2, eBox-3300- LS, and eBox-3300-JSK.
- Page 4 AFETY NFORMATION WARNING Do not expose eBox-3300 to rain or moisture, in order to prevent shock and fire hazard. Never install eBox-3300 in wet locations. Do not open the cabinet to avoid electrical shock. Refer to your nearest dealer for qualified personnel servicing.
- Page 5 eBox-3300...

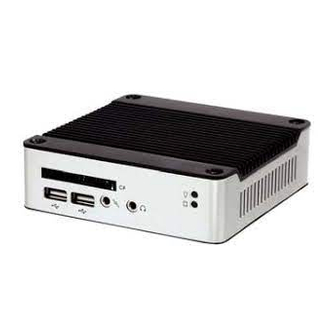

- Page 6 RODUCT ESCRIPTION With this product, herewith also known as eBox-3300, which is a simplified & an economical design of an embedded eBox-3300 for Special Purpose Personal Computing. The basic specification of this product comprises of the x86 technology design, and with onboard 256MB System memory, VGA display, USB, PS/2 Keyboard, Mouse, LAN, and Audio Interfaces.
-
Page 7: Table Of Contents
PEAKER ARPHONE ........7 ONNECTING THE EYBOARD AND OUSE ............7 ONNECTING ERIAL PORT 5 – BIOS ..................... 8 eBox-3300 ............8 ECONFIGURING 6 – T ............. 9 ECHNICAL PECIFICATION 7 – T VESA PC ............. 10 AKING ................... 10 TORING .......... - Page 8 CPU B ..........14 UMMARY ABLE FOR OARD eBOX-3300......14 RONT ONNECTORS UTLINE FOR eBOX-3300 ......15 ONNECTORS UTLINE FOR ..............16 SSIGNMENTS ........... 18 ARRANTY ERMS AND ONDITION ................18 ARRANTY ............. 18 ERVICE AND UPPORT (RMA) P ..... 18...
-
Page 9: Npacking Our Eox
NPACKING MBED You have just acquired eBox-3300, the world’s smallest and Congratulation! compact PC (See Figure 1), please check the following items: -3300 ACKING IST FOR SERIES Item Description Q’ty eBox-3300 VESA PC Max. 10-watts External Power Adaptor, Vin: 100~240VAC • 50/60Hz, 0.45A / Vout: +5.0~5.25VDC @ 2A max, with KYCON KPPX-3P end. -
Page 10: Reface
So, if you are looking for a device that is able to provide you with more mobility & space but at the same time uses less power consumption, then eBox-3300 will be surely meet your need. -
Page 11: Ebox-3300 Overview
USB port For connection to devices with USB interface (HDD, CD/DVD-ROM, Memory Stick, etc.) Back Panel Power switch DC Power Jack (3-pin) PS/2 Keyboard or Mouse (6-pin) RS-232 (optional for eBox-3300-JSK RJ-45 LAN Jack USB Port Wireless Antenna connector (optional) eBox-3300... -
Page 12: Mbedded Cpu Board
5. Mini PCI socket x1 (available for eBox- Mic In, Line Out 3300-M and 3300-JSK) 6. 2 RJ-45 LAN (only available on eBox-3300-L2) Dimension & Weight 115 x 115 x 35 mm / 505g Operating System Suitable for: Windows XP... -
Page 13: Eripherals
ERIPHERALS ONNECTING THE OWER DAPTOR Power Adaptor To use eBox-3300 immediately, please attach the supplied AC adapter as a power source. See the left diagram for visual connection. Connect the DC power jack of the power adaptor to the DC Input jack of eBox- 3300;... -
Page 14: Connecting The Usb
ERIPHERALS ONNECTING THE PEAKER ARPHONE eBox-3300 provides USB port (Two in front & one at the back). USB Ports Front cabinet The USB ports is available for connection to USB devices such as CD-ROM Microphone/Earphone The eBox-3300 supports for Microphone... -
Page 15: Connecting The Keyboard And Mouse
ONNECTING THE EYBOARD AND OUSE PS/2 Keyboard or Mouse (6-pin) The PS/2 Port is available for connecting Keyboard/Mouse (shared) ONNECTING ERIAL PORT Serial Ports The serial port is usually connected to a serial device like modem (option for eBox- 3300-JSK eBox-3300... -
Page 16: Bios
BIOS eBox-3300 ECONFIGURING Take note that AMI BIOS is used in the eBox-3300. To reconfigure the eBox- 3300, depress or hit the <Del> key to enter your BIOS setup main menu. Select from the menu, the desired setup for change. -
Page 17: Echnical Pecification
Size (W x H x D) Weight 505g Certification CE, FCC Note: * Mini-PCI Connector is available for eBox-3300-M and eBox-3300-JSK ** 2 RJ-45 Ethernet *** is only available on eBox-3300-L2 *** RS-232 is available for eBox-3300-JSK and eBox-3300-L2 eBox-3300... -
Page 18: Aking Care Your Vesa Pc
-3300 AKING ARE E This section gives you guidelines on using eBox-3300 – Safe using, Storing and Handling. TORING Do not place eBox-3300 in a location that is subject to: Heating sources, such as stove, oven, heater, radiator or air duct... -
Page 19: Using Cables For Connection
Do not use cut or damaged cables for connection. VESA PC LEANING Clean the eBox-3300 with a soft, dry cloth or a soft cloth lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzene, as these may damage the finish of eBox-3300. -
Page 20: Roubleshooting
Condensation may cause the eBox-3300 to malfunction for a while. If this happens, do not use the eBox-3300 for at least one hour. When you have checked all the above guidelines and the eBox-3300 does not work. Remove the power adaptor from the eBox-3300, unplug the power cord, and plug it in again. -
Page 21: Operating System Not Found
Press <DEL> to enter BIOS Setup main menu window. Follow the steps as written in item B. BIOS error message. For eBox-3300 : If you have just connect eBox-3300 to a CD/DVD or USB Drivers, remove these peripherals.. And restart eBox-3300 to confirm that the Windows operating system starts properly. -
Page 22: Appendix : Onboard Connectors Summary
15-pin Secondary IDE Master Dip Switch 2-pin Line-Out Audio Jack 2-pin Microphone Audio Jack 2-pin JTAG enable Jumper 2-pin Ethernet LAN RJ-45 8-pin -3300 RONT ONNECTORS UTLINE FOR CF, Micro SD Slot Min In, Line Out PWR, ACT LED eBox-3300... -
Page 23: Ear Onnectors
-3300 ONNECTORS UTLINE FOR DC Power Jack PS/2 KB/Mouse RJ-45 LAN Power Switch Serial Ports (Optional) Wireless ANT (Optional) eBox-3300... -
Page 24: Pin Assignments
J12: DC-IN (5V) – 3-pin Mini-Din Lock Pin Socket Signal Name Pin # J3: USB (90 )– 4-pin USB Type 1 Connector (Vertical Type) Pin # Signal Name USB0- USB0+ GGND GGND LAN: RJ-45 Connector Pin # Signal Name Pin # Signal Name FTXD+ FTXD- FRXIN+ FRXIN- eBox-3300... - Page 25 LEDS: POWER ON/OFF & HDD R/W LED Color State Green Power On Green HDD On Green Flashes HDD R/W J9,J11: COM - 9-pin D-Sub Connector Signal Signal Pin # Pin # Name Name DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 eBox-3300...
-
Page 26: Warranty
ERMS AND ONDITIONS 1. Warranty The warranty terms for eBox-3300 are twelve (12) months from the beginning on the date of invoice. During the warranty period, the manufacturer Will repair replace the product covered under this limited warranty. 2. Service and Support The manufacturer provides the technical support for hardware problems with your system throughout the warranty period. - Page 27 eBox-3300...
