Description of the Equipment

The complete Combics scales from Sartorius are primarily used in industry. Because there are a number of hardware
configurations to choose from, Combics models are constructed according to customer requirements.
The complete Combics scale consists of:
– A choice of weighing platforms with capacities from 3 kg to 3000 kg (in stainless steel or steel) and indicators

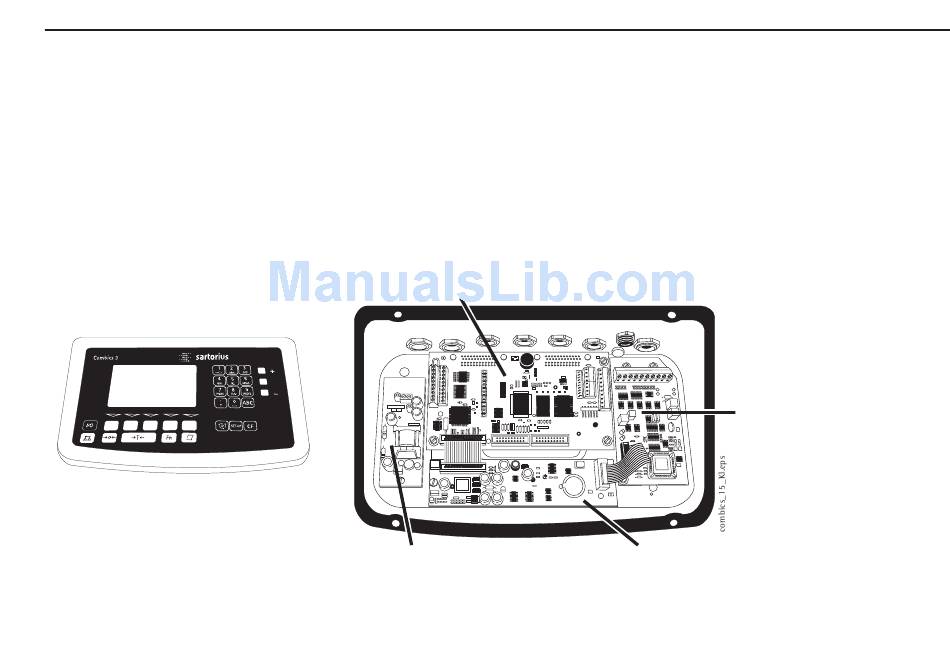

The Combics 3-indicators consist of:
– Front panel with keypad and
digital display (Combics 2 has
additional keys and LEDs)
– Combics indicators
are equipped with either cable
glands or D-Sub 25
connectors.
Note:
6
Digital PCB with application
processor, memory, RS-232 interfaces
combics3_04.eps
Power PCB
Additional electronic subassemblies are optional.
DC/DC converter
(Combics3 has a clock chip)
Analog/digital converter
