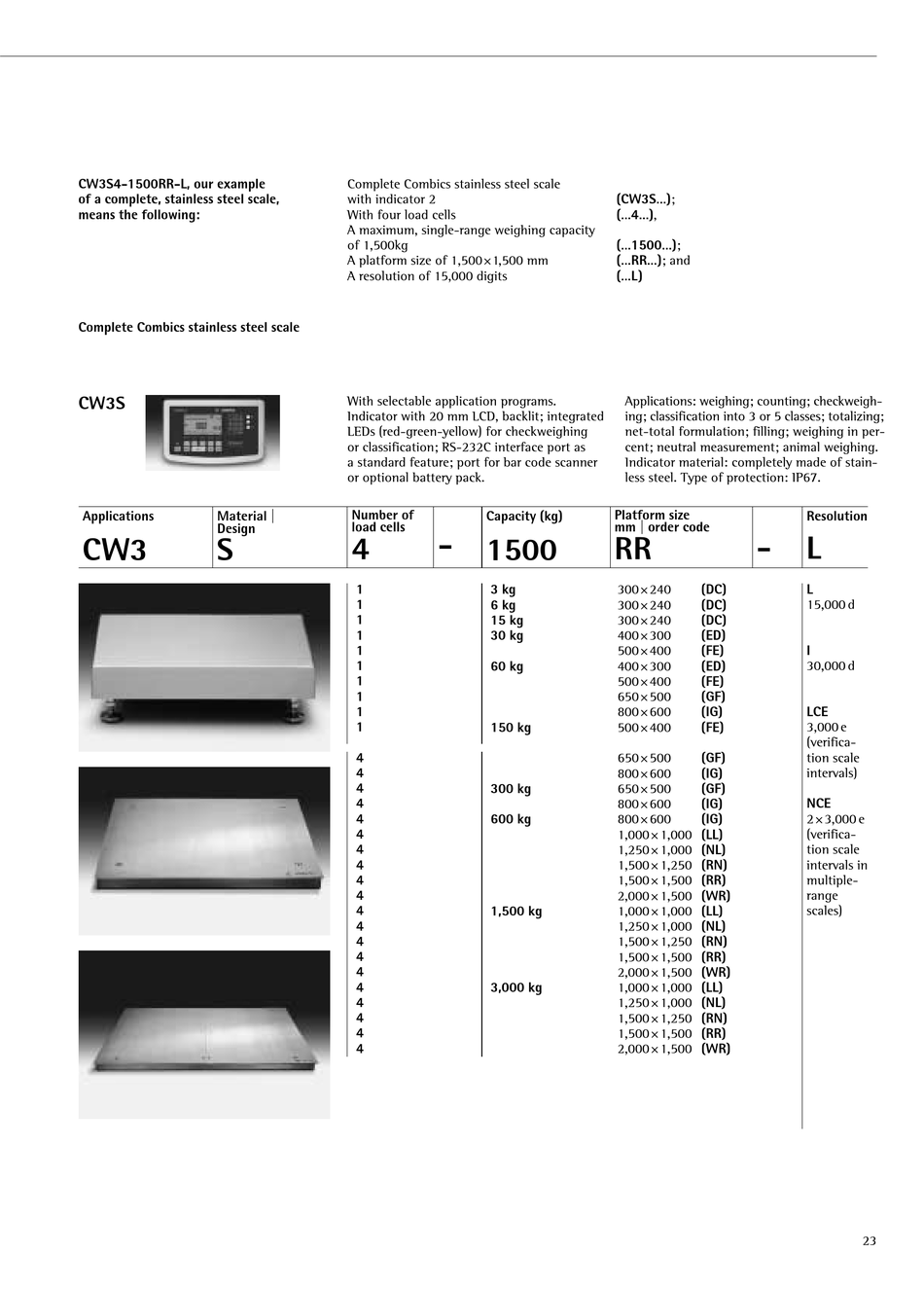

Complete Combics Stainless Steel Scale - Sartorius CW3P Service Manual

CW3S4-1500RR-L, our example
of a complete, stainless steel scale,
means the following:

Complete Combics stainless steel scale

CW3S
Applications Material |
Design
CW3 S
Complete Combics stainless steel scale
with indicator 2
With four load cells
A maximum, single-range weighing capacity
of 1,500kg
A platform size of 1,500+1,500 mm
A resolution of 15,000 digits
With selectable application programs.
Indicator with 20 mm LCD, backlit; integrated
LEDs (red-green-yellow) for checkweighing
or classification; RS-232C interface port as
a standard feature; port for bar code scanner
or optional battery pack.
Number of
Capacity (kg)
load cells
-
4
1500
1 3 kg
1 6 kg
1 15 kg
1 30 kg
1
1 60 kg
1
1
1
1
150 kg
4
4
4
300 kg
4
4 600 kg
4
4
4
4
4
4 1,500 kg
4
4
4
4
4 3,000 kg
4
4
4
4
(CW3S...);
(...4...),
(...1500...);
(...RR...); and
(...L)
Applications: weighing; counting; checkweigh-
ing; classification into 3 or 5 classes; totalizing;
net-total formulation; filling; weighing in per-
cent; neutral measurement; animal weighing.
Indicator material: completely made of stain-
less steel. Type of protection: IP67.
Platform size
mm | order code
-
RR
300+240 (DC)
300+240 (DC)
300+240 (DC)
400+300 (ED)
500+400 (FE)
400+300 (ED)
500+400 (FE)
650+500 (GF)
800+600 (IG)
500+400 (FE)
650+ 500 (GF)
800+600 (IG)
650+ 500 (GF)
800+600 (IG)
(IG)
800+600
1,000 +1,000 (LL)
1,250 +1,000 (NL)
1,500 +1,250 (RN)
1,500 +1,500 (RR)
2,000 +1,500 (WR)
1,000 +1,000 (LL)
1,250 +1,000 (NL)
1,500+1,250 (RN)
1,500 +1,500 (RR)
2,000 +1,500 (WR)
1,000 +1,000 (LL)
1,250 +1,000 (NL)
1,500 +1,250 (RN)
1,500 +1,500 (RR)
2,000 +1,500 (WR)
Resolution
L
L
15,000 d
I
30,000 d
LCE
3,000 e
(verifica-
tion scale
intervals)
NCE
2+3,000 e
(verifica-
tion scale
intervals in
multiple-
range
scales)
