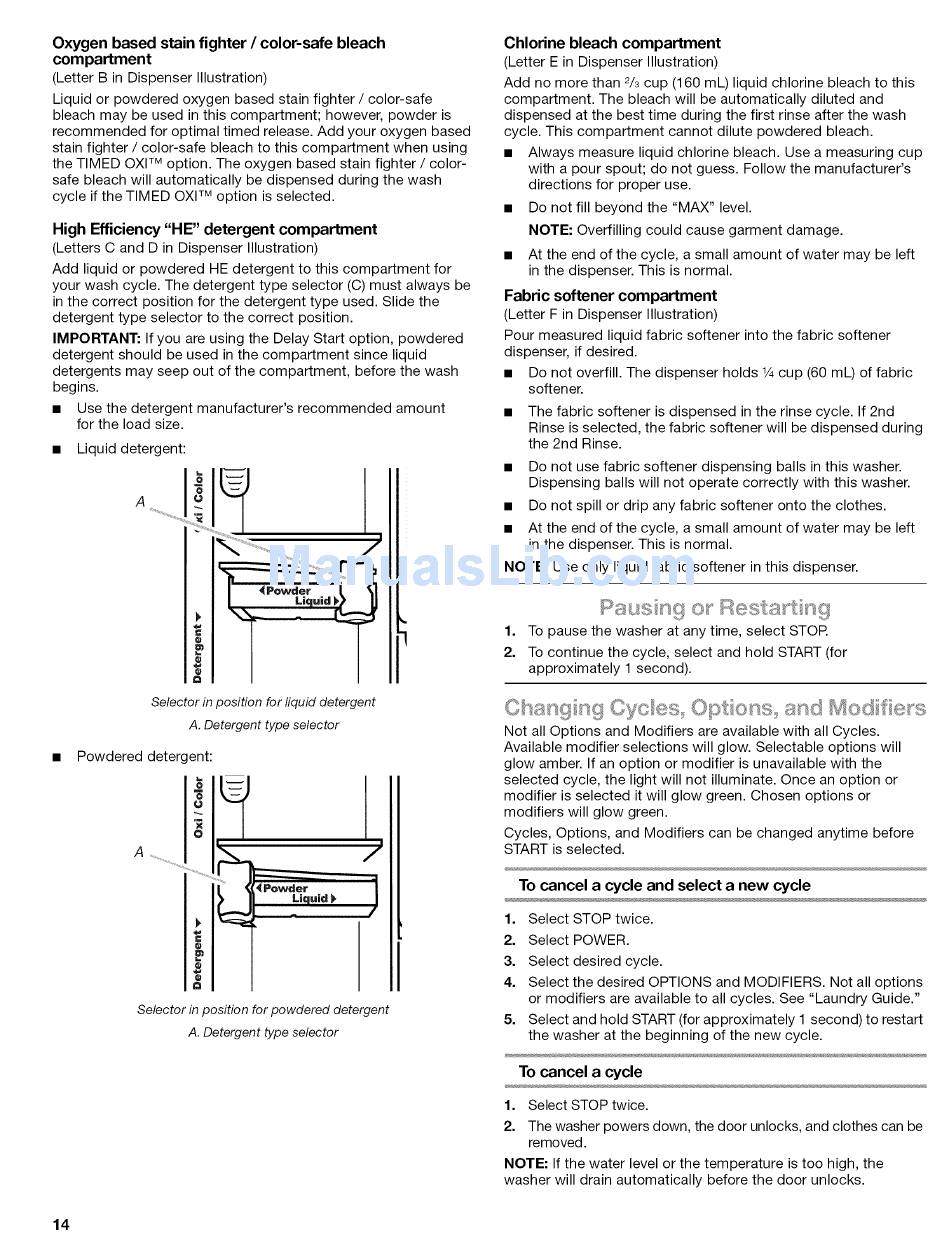

Oxygen based stain fighter / color-safe
bleach
compartment
(Letter B in Dispenser Illustration)
Liquid or powdered oxygen based stain fighter / color-safe
bleach may be used in this compartment;
however, powder is
recommended
for optimal timed release. Add your oxygen based
stain fighter / color-safe bleach to this compartment
when using
the TIMED OXl
TM
option. The oxygen based stain fighter / color-
safe bleach will automatically
be dispensed
during the wash
cycle if the TIMED OXl
TM
option is selected.
High Efficiency "HE" detergent
compartment
(Letters C and D in Dispenser Illustration)
Add liquid or powdered HE detergent to this compartment
for
your wash cycle. The detergent type selector (C) must always be
in the correct position for the detergent type used. Slide the
detergent type selector to the correct position.
IMPORTANT:
If you are using the Delay Start option, powdered
detergent should be used in the compartment
since liquid
detergents may seep out of the compartment,
before the wash
begins.
Use the detergent manufacturer's
recommended
amount
for the load size.
Liquid detergent:
A
I
Selector in position for liquid detergent
A. Detergent type selector
Powdered detergent:
A
Selector in position for powdered detergent
A. Detergent type selector
Chlorine
bleach compartment
(Letter E in Dispenser Illustration)
Add no more than 2/s cup (160 mL) liquid chlorine bleach to this
compartment.
The bleach will be automatically
diluted and
dispensed at the best time during the first rinse after the wash
cycle. This compartment
cannot dilute powdered bleach.
Always measure liquid chlorine bleach. Use a measuring cup
with a pour spout; do not guess. Follow the manufacturer's
directions for proper use.
Do not fill beyond the "MAX" level.
NOTE: Overfilling could cause garment damage.
At the end of the cycle, a small amount of water may be left
in the dispenser. This is normal.
Fabric
softener
compartment
(Letter F in Dispenser Illustration)
Pour measured liquid fabric softener into the fabric softener
dispenser, if desired.
Do not overfill. The dispenser holds 1¼cup (60 mL) of fabric
softener.
The fabric softener is dispensed in the rinse cycle. If 2nd
Rinse is selected, the fabric softener will be dispensed during
the 2nd Rinse.
Do not use fabric softener dispensing balls in this washer.
Dispensing balls will not operate correctly with this washer.
Do not spill or drip any fabric softener onto the clothes.
At the end of the cycle, a small amount of water may be left
in the dispenser. This is normal.
NOTE: Use only liquid fabric softener in this dispenser.
1=
2.
To pause the washer at any time, select STOR
To continue the cycle, select and hold START (for
approximately
1 second).
Ck snq
sq Cyces
Opt
a S Mod f e 's
Not all Options and Modifiers are available with all Cycles.
Available modifier selections will glow. Selectable options will
glow amber. If an option or modifier is unavailable with the
selected cycle, the light will not illuminate. Once an option or
modifier is selected it will glow green. Chosen options or
modifiers will glow green.
Cycles, Options, and Modifiers can be changed anytime before
START is selected.
To cancel a cycle and select a new cycle
1. Select STOP twice.
2. Select POWER.
3. Select desired cycle.
4. Select the desired OPTIONS and MODIFIERS. Not all options
or modifiers are available to all cycles. See "Laundry Guide."
5. Select and hold START (for approximately
1 second) to restart
the washer at the beginning of the new cycle.
To cancel a cycle
1. Select STOP twice.
2. The washer powers down, the door unlocks, and clothes can be
removed.
NOTE: If the water level or the temperature is too high, the
washer will drain automatically
before the door unlocks.
14
