Configuration Manual
Ascom d41 DECT Handset
2

Getting started with Configuration of the d41 Handset

It is possible to configure the d41 Handset by inserting it into a desktop charger (DC4) or
rack charger (CR3). The charger is connected via USB or ethernet to the PDM Windows
Version or the IMS2.
In the case of IP-DECT, it is possible to configure the d41 over the air.
This chapter describes how to configure handsets in three different system setups:
• with PDM Windows Version
• with IMS2 via chargers
• with IMS2 over-the air
2.1

PDM Windows Version

The Windows Version is run on a PC. The handset is configured via PDM Windows Version
as follows:
• Connect a desktop charger (DC4) or a rack charger (CR3) via USB to the computer
running PDM.
• Start PDM.
• Place the handset in this charger which shall be connected to PDM.
For instructions on how to use PDM Windows Version, see Installation and Operation
Manual, Portable Device Manager (PDM), Windows Version, TD 92325GB.

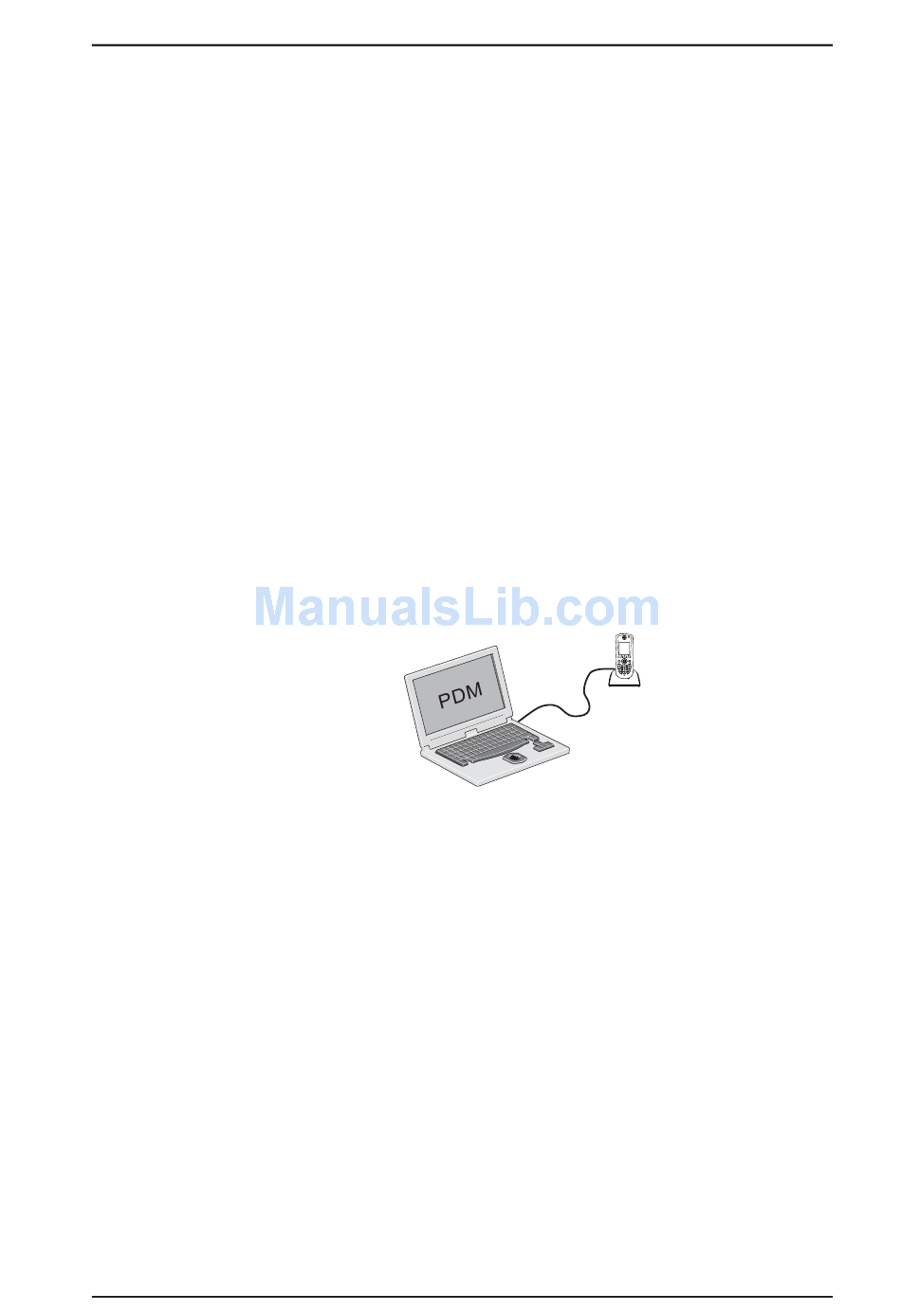

Figure 1. Configuration of handsets via PDM Windows Version
2.2

IMS2

The IMS2 is run on an ELISE2 module.
For instructions on how to use the IMS2, see Installation and Operation Manual, IMS2,
TD 92586GB.
2010-01-28/ Ver. D
Figure 1.
TD 92641GB
3
