Summary of Contents for ASCOM TD 92582GB
-
Page 1: User Manual

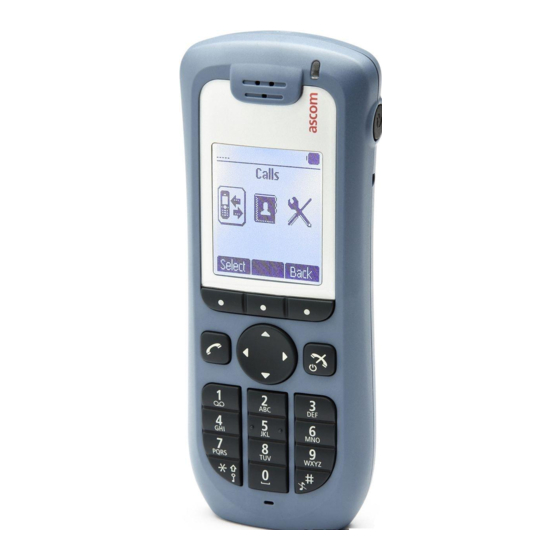

TD 92582GB User Manual Ascom d41 DECT Handset 2009-03-19/ Ver. B... -
Page 2: Table Of Contents
User Manual TD 92582GB Ascom d41 DECT Handset Contents 1 Introduction......................1 1.1 Abbreviations and Glossary ................1 1.2 Functions and Accessories .................. 1 2 Safety Instructions ....................3 2.1 Precautions ......................3 2.1.1 Frequency Range ..................4 2.1.2 Warranty Notification ................. 4 2.2 Regulatory Compliance Statements (EU/EFTA only) .......... - Page 3 User Manual TD 92582GB Ascom d41 DECT Handset 5.1.1 Turn the Audible Signal On/Off ..............19 5.2 Lock/Unlock the Keypad ................... 19 5.3 Lock/Unlock the Handset ................. 19 6 Calling ........................20 6.1 Open the Call List .................... 20 6.2 Incoming Call ....................20 6.2.1 Answer a Call ..................
- Page 4 User Manual TD 92582GB Ascom d41 DECT Handset 9.1.4 Call Services ..................... 28 9.2 Contacts ......................29 9.2.1 Call Contact ..................... 29 9.2.2 Edit Contact ..................... 30 9.2.3 Delete Contact ..................30 9.2.4 Central Phonebook .................. 30 9.3 Settings ......................31 9.3.1 Sound and Alert Settings .................
-
Page 5: Introduction
3 before using the handset. For software download and parameter set up, read the Installation and Operational Manual Portable Device Manager (PDM), Windows version, TD 92325GB, and the Configuration Manual, Ascom d41 DECT Handset, TD 92641GB. Abbreviations and Glossary PDM:... - Page 6 User Manual TD 92582GB Ascom d41 DECT Handset Accessories Desktop charger Basic Desktop charger Advanced Charging rack Leather case Belt Clip hinge-type swivel-type Security cord Headset with microphone on boom Headset with microphone on cable 2009-03-19/ Ver. B...
-
Page 7: Safety Instructions
User Manual TD 92582GB Ascom d41 DECT Handset Safety Instructions Read this chapter before using the d41 handset. For safe and efficient operation of the handset, observe the guidelines given in this manual and all necessary safety precautions when using the handset. Follow the operating instructions and adhere to all warnings and safety precautions located on the product, the Quick Reference Guide and this User Manual. -
Page 8: Frequency Range
User Manual TD 92582GB Ascom d41 DECT Handset 2.1.1 Frequency Range The handset is a radio transmitter and receiver. When it is on, it receives and sends out radio frequency (RF) energy. The handset operates on different frequency ranges depending on market and employs commonly used modulation techniques:... -
Page 9: Environmental Requirements
0.037 W/Kg This device must not be co-located or operating in conjunction with any other antenna or transmitter. Use of non-Ascom approved accessories may violate the FCC RF exposure guidelines and should be avoided. Information to User This device complies with Part 15 of the FCC Rules. Operation is subject to the following... - Page 10 User Manual TD 92582GB Ascom d41 DECT Handset • Protect your handset from aggressive liquids and vapours. • If the handset has been exposed for water or condense, remove the battery immediately and let it dry completely before re-inserting the battery.
-
Page 11: Descriptions
User Manual TD 92582GB Ascom d41 DECT Handset Descriptions Figure 1. Description of the Handset d41 Earpiece speaker Soft keys The 3 Soft keys is used with GUI, that is, the functions of each Soft key is indicated by text in the display just above the keys. -
Page 12: The D41 Dect Handset
User Manual TD 92582GB Ascom d41 DECT Handset The d41 DECT Handset IMPORTANT: The handset may retain small magnetic objects around the mouthcap or earcap region. Case The plastic cover parts are made of durable PC/ABS material. Antenna The antenna is integrated inside the handset. -
Page 13: Rack Charger
User Manual TD 92582GB Ascom d41 DECT Handset The charger is delivered with a plug-in power supply and is connected into an ordinary wall socket. For more information, see Installation and Operation Manual, DC4 Desktop Charger, TD92481GB. Note: Only use the charger within the temperature range of +5° C – +40° C. - Page 14 User Manual TD 92582GB Ascom d41 DECT Handset Icons “Signal strength” icon is visible in the upper left corner. The staples shown in display depends on the signal strength. “Full battery” icon is displayed in upper right corner. "Low battery” icon is shown when the battery only has 5% of its capacity left.
- Page 15 User Manual TD 92582GB Ascom d41 DECT Handset Menu icons The ”Contacts” menu contains all names/numbers in the local phonebook. In addition, a company phonebook* with up to 500 entries can be downloaded to the phone via the PDM. It is also possible to access a central phonebook* from the "Contact"...
-
Page 16: Keys And Buttons
User Manual TD 92582GB Ascom d41 DECT Handset Keys and Buttons 3.4.1 Off-hook Key This key is used for connecting calls. One short press in standby mode opens the call list. 3.4.2 On-hook, and On/Off Key This key is used for disconnecting calls and returning to main screen. -
Page 17: Alphanumeric Keys
User Manual TD 92582GB Ascom d41 DECT Handset 3.4.8 Alphanumeric Keys a b c à â æ ç 2 . , ? ! - ‘ ” 1 d e f è é ê ë 3 j k l 5 m n o ñ ô ö œ 6 g h i î... -
Page 18: Accessories
This is done in the PDM, see Configuration Manual, Ascom d41 DECT Handset, TD 92641GB. If an own profile is configured in the PDM, it will be selectable in the handset menu. -
Page 19: Menu Tree
User Manual TD 92582GB Ascom d41 DECT Handset Menu Tree Calls > > —> • Time of call 7891 01:30 • Call • Call list —> Edit number > • 7827 03:35 —> • More > • Save number 7682 05:26 •... -
Page 20: Contacts
User Manual TD 92582GB Ascom d41 DECT Handset Contacts • Call contact • Search ——> • From contact list > ——> • Name • Add contact ——> > • New • Work number > • From Call list > • Mobile number >... -
Page 21: Settings
User Manual TD 92582GB Ascom d41 DECT Handset Settings • Sound & Alerts —> • Volume > • Ring signals > • Vibrator alert > • Key sound > • Headset —> • Mic on boom • Mic on cable —>... -
Page 22: In Call
User Manual TD 92582GB Ascom d41 DECT Handset In Call The In Call menu can be reached during an ongoing call by pressing the "More" soft key. > • Contacts • Microphone on/off > > • Call —> • New call •... -
Page 23: Basic Operation
Note: It is possible to answer/close an incoming call while the keypad is locked. If configured in the PDM, it is also possible to call an emergency call while the keypad is locked. See Configuration Manual, Ascom d41 DECT Handset, TD 92641GB. Lock/Unlock the Handset Press "Menu". -
Page 24: Calling
User Manual TD 92582GB Ascom d41 DECT Handset Calling Open the Call List Press "Menu". Select "Calls" Select "Call list". Select a number. Press or "Call" to dial. The number can be edited before the call is dialled. Press "More" and select "Edit number". The 25 last received, dialled, or missed calls are stored in a call list. -
Page 25: Dial A Number From The Local Phonebook
User Manual TD 92582GB Ascom d41 DECT Handset Select a number. Press or "Call" to dial. The number can be edited before the call is started. Press "More" and select "Edit number". 6.3.3 Dial a Number from the Local Phonebook Press the "Menu"... -
Page 26: During A Call
During a Call Note: Some of these functions are system dependent. The parameters are set up in the Portable Device Manager (PDM), see Configuration Manual, Ascom d41 DECT Handset, TD 92641GB, and Installation and Operational Manual, Portable Device Manager (PDM), Windows version, TD 92325GB. -
Page 27: End A Call During Conversation
User Manual TD 92582GB Ascom d41 DECT Handset 6.4.6 End a Call during Conversation A new call is started during conversation, the first call is on hold. Press the "More" soft key during the call. Select "End Call" Press "Select". This will end the current call and the previous call is resumed. -
Page 28: Call Waiting
User Manual TD 92582GB Ascom d41 DECT Handset 6.4.11 Call Waiting During a call when the line is busy, do as follows: Press the "More" soft key. Select "Call waiting" Press "Select". The other part will get a "Call waiting" signal. -
Page 29: Messaging
User Manual TD 92582GB Ascom d41 DECT Handset Messaging Mini Messaging Note: This feature is applicable for d41 Advanced only. The handset d41 Advanced can receive text messages with a maximum of 12 characters. When a text message is received, the LED starts flashing and the message alert signal sounds. -
Page 30: Contacts
User Manual TD 92582GB Ascom d41 DECT Handset Contacts The handset has a local phonebook with 250 entries, where names and numbers freely can be added, deleted, and edited by the user. The phonebook lists all names in alphabetical order, where three numbers can be added for each contact, that is, work number, mobile number, and other number. -
Page 31: Menu Operation
User Manual TD 92582GB Ascom d41 DECT Handset Menu Operation 13:00 Contacts Calls Settings Select Back Figure 6. The Main Menu. Calls Enter the menu by pressing the “Menu” soft key. Select in the menu. Press "Select". 9.1.1 Call List The 25 last received, dialled or missed calls are stored in a call list. -
Page 32: Missed Calls
Call Services Note: These functions are system dependent. The parameters are set up in the Portable Device Manager (PDM), see Configuration Manual, Ascom d41 DECT Handset, TD 92641GB, and Installation and Operational Manual, Portable Device Manager (PDM), Windows version, TD 92325GB. -
Page 33: Contacts
User Manual TD 92582GB Ascom d41 DECT Handset Divert Internal/External Calls Select "Internal/External". Select "Activate". Enter number to divert to. Press the "OK". To stop diversion select "Deactivate" and press "OK". Divert Calls if No Reply Select "No reply". Select "Activate" and press the "OK". -
Page 34: Edit Contact
User Manual TD 92582GB Ascom d41 DECT Handset Press "Add". Enter the numbers. It is possible to add tone "T" or paus "P" in phone numbers by pressing the Space key 5 times or 7 times, respectively. Press "OK". Press "Save" and then "Back". -
Page 35: Settings
User Manual TD 92582GB Ascom d41 DECT Handset When the search result is displayed, it is possible to view contact information, and add the number to new contact by pressing the "More" soft key. It is also possible to dial the number by pressing , or the "Call"... -
Page 36: Select Headset Profile
User Manual TD 92582GB Ascom d41 DECT Handset Turn the Vibrator on/off Select “Vibrator alert”. Select “On”, “On if silent” (i.e. the vibrator is on when the handset is muted), or “Off”. Press "Select". Press "Back" to save the setting. -
Page 37: Phone Lock Settings
(0000) can be changed to any 4-8 digit personalized code. Note: If configured in the PDM/IMS2, it is possible to call an emergency call while the handset is locked. See Configuration Manual, Ascom d41 DECT Handset, TD 92641GB. Select “Locks”. - Page 38 User Manual TD 92582GB Ascom d41 DECT Handset Deactivate the Phone Lock Select “Locks”. Select “Auto phone lock”. Select “Off”. Enter PIN code Press "OK". Change PIN Code Select "Change PIN code". Enter the old PIN code. Press "OK". Enter new PIN code twice.
-
Page 39: Answering
User Manual TD 92582GB Ascom d41 DECT Handset 9.3.6 Answering The default setting for the handset is to use the Off-hook key when answering a call. The answering behaviour can be configured to answer the call automatically, i.e. without pressing a key, and/or in loudspeaking mode. It is also possible to set the answering behaviour to any key. -
Page 40: In Charger
User Manual TD 92582GB Ascom d41 DECT Handset 9.3.9 In Charger Redirect Calls when Placed in Charger When "Redirect" is enabled and the handset is placed in a charger, the calling part receives a busy tone (default setting). The function is automatically cancelled when the handset is removed from the charger. - Page 41 User Manual TD 92582GB Ascom d41 DECT Handset Unsubscribe System Select "Unsubscribe". Select the system to unsubscribe in the list. Press "Select". Press "Yes" to unsubscribe the system. Otherwise, press "No". Rename System It is possible to change the name of the system in the handset.
-
Page 42: Advanced Functions
This can be useful during administration of handsets for new users. See also Configuration Manual, Ascom d41 DECT Handset, TD 92641GB. 2009-03-19/ Ver. B... -
Page 43: System Handling
Examples of additional features that can be downloaded/configured via PDM/IMS2: • Company phonebook • Downloadable languages Refer to the Configuration Manual, Ascom d41 DECT Handset, TD 92641GB for more information. To view the handset’s software version, enter *#34# in standby mode. -
Page 44: Troubleshooting
User Manual TD 92582GB Ascom d41 DECT Handset Troubleshooting This section contains information on how to solve common operational problems, and warnings you may receive. Go through the following lists if you encounter any problems. If this checklist does not solve the problem, contact your system administrator. -
Page 45: Operation Notice
User Manual TD 92582GB Ascom d41 DECT Handset Operation Notice 13.1 Accessibility and Voice Quality The base network is not always available. If you do not get in contact with your system, contact your system administrator. For best voice quality, avoid positioning near computer, radio or similar equipment. -
Page 46: Maintenance
User Manual TD 92582GB Ascom d41 DECT Handset Maintenance 14.1 Charge the Battery Place the handset in the desktop charger or in the rack charger. The battery is being charged when the LED on the handset is steady orange. When the battery is fully charged the LED will be green. -
Page 47: Attach The Hinge-Type Clip
User Manual TD 92582GB Ascom d41 DECT Handset 14.3 Attach the Hinge-type Clip Attach the hinge-type belt clip as described in the illustration below. Figure 8. Attach the hinge-type clip into position. 14.4 Attach the Swivel-type Clip Attach the swivel-type belt clip as described in the illustration below. -
Page 48: Document History
User Manual TD 92582GB Ascom d41 DECT Handset Document History For details in the latest version, see change bars in the document. Version Date Description 2009-02-02 First released version 2009-03-19 WSM changed to IMS2 2009-03-19/ Ver. B...
