Single door access control unit
Hide thumbs Also See for AC-015:
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction Manual
MODE
1
2
4
5
7
8
0
AC-015
Single Door Access Control
Unit
DOOR
3
6
9
#
06/04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC-015 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rosslare AC-015

Summary of Contents for Rosslare AC-015

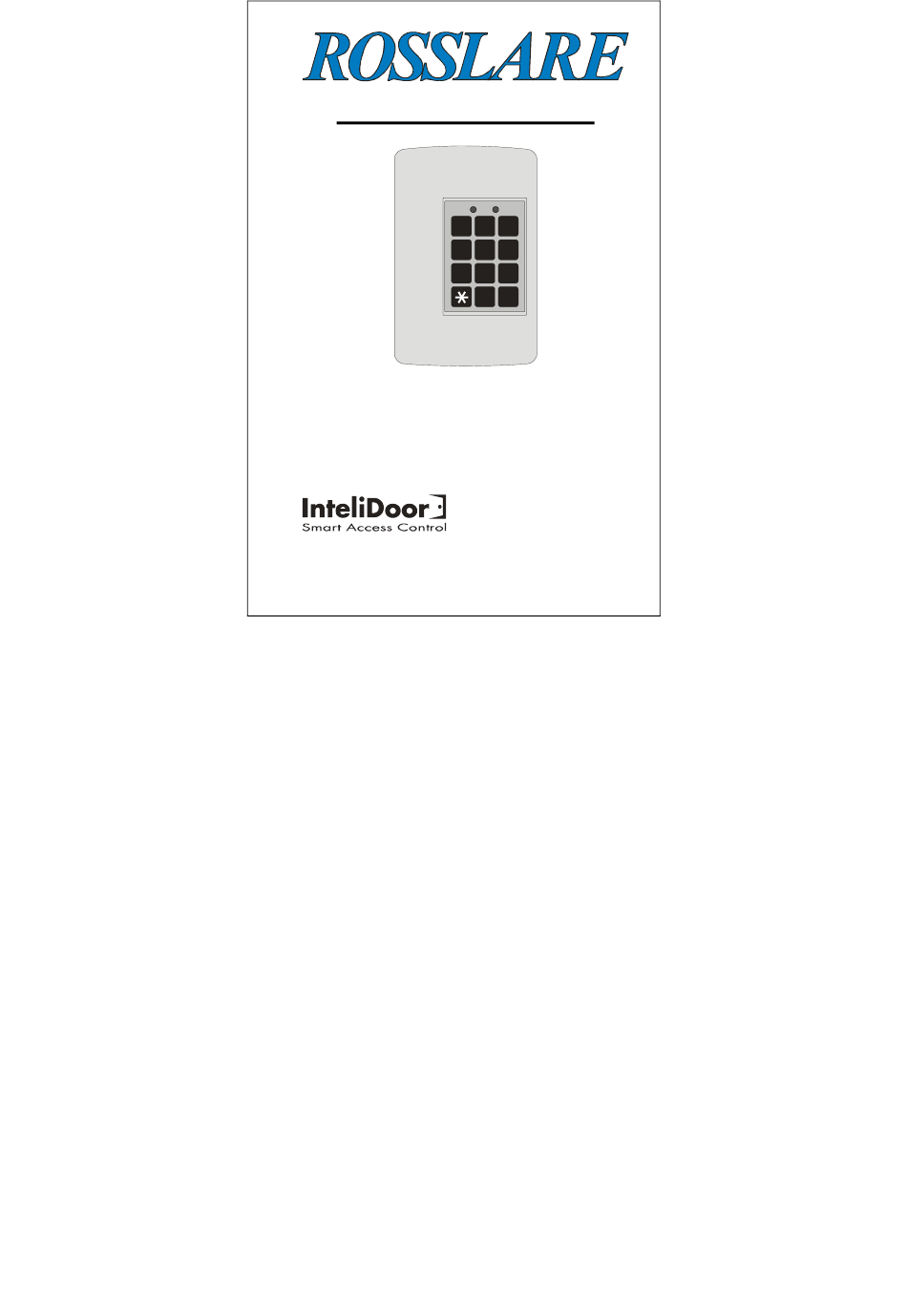

  • Page 1 Instruction Manual MODE DOOR AC-015 Single Door Access Control Unit 06/04...
  • Page 2 ALL OF THE TERMS CONTAINED IN THIS LICENCE AGREEMENT. This is a legal agreement between you (either the individual or the end-user or an entity) and Rosslare. By opening this software package, you are agreeing to be bound by the terms and conditions of this Agreement.
  • Page 3 Agreement, rights to use the Software shall automatically terminate and the Software must be returned to Rosslare or all copies of the Software destroyed. Limited Product Warranty. Rosslare warrants that any hardware products...
  • Page 4 SUCH DAMAGES. IN NO CASE SHALL ROSSLARE’S LIABILITY EXCEED THE ACTUAL MONEY PAID FOR THE PRODUCTS AT ISSUE. Because some jurisdictions do not allow the implementation of limited warranties or liability for incidental, consequential, special, or indirect damages, the above limitation may not always apply.

  • Page 5: Table Of Contents

    Typical Lock and Option Wiring........16 Reader/Keypad Wiring ............ 17 Connecting a Controller to a PC........17 Features and Concepts ............. 18 User Levels ................ 19 1) Normal User ............. 19 2) Secure User............... 19 3) Master User .............. 20 Page 5 AC-015 06/04...
  • Page 6 Request to Exit (REX) Button.......... 26 Fail Secure Operation:........... 26 Fail Safe Operation:............26 Programming Instructions..........27 Programming Menu Quick Reference Guide ....28 Entering Programming Mode.......... 29 Exiting Programming Mode ..........30 Changing Open Code............31 Page 6 AC-015 06/04...
  • Page 7 Enrolling Primary and Secondary Codes:...... 41 Deleting User Codes............45 Return to Factory Default Settings and Facility Code ... 47 Replacing a Lost Programming Code ......50 Replacing a Lost Normal / Secure Code......51 Accessories ................ 52 Technical Support............. 58 Page 7 AC-015 06/04...

  • Page 8: Introduction

    Reader/Keypad only provides data to the controller, not authorization to release the controlled door. The AC-015 accepts up to 500 Users via the use of Proximity Cards (provided separately) or PIN codes (Keypad based codes) into the system. Each User is issued a unique Proximity Card or PIN code.
  • Page 9 For more information on Readers and Keypads please refer to Accessories – page 52. The AC-015 has an option to be connected with a dedicated Software program easier management of Users database or for online monitoring of door access. The system is linked to a PC via RS-232 serial link.

  • Page 10: Key Features

    Built-in Lock Strike suppressor diode • Built-in Reader and Lock Strike Power Supply • Internal Siren, Bell, & Chime annunciator • Programmable Siren time • Comes with security screw and security tool • Mounting template supplied for easier installation Page 10 AC-015 06/04...

  • Page 11: Technical Specifications

    5A Relay Output: Lock Strike Power 12V DC constant Supply: voltage 1.2 A current limit N.O. or N.C. option Tamper Relay 1A Relay N.C. Dry Output Contact Reader Power Voltage: 12V DC Supply: Max Current: 300mA Page 11 AC-015 06/04...

  • Page 12: Environmental Characteristics

    -25°F to 145°F Temperature: (-31°C to 63°C) Operating 0 to 95% (Non- Humidity: Condensing) Mechanical Characteristics Dimensions: 5.3” (134mm) L x 3.4” (85mm) W x 1.2” (30mm) D (Fits US Gang Box) Weight: 0.5 lbs (220g) Page 12 AC-015 06/04...

  • Page 13: Installation

    Wiring diagrams are also provided for attaching the controller to the REX button, and External 26-Bit Wiegand Compatible Readers/Keypads. Also covered in this section is how to wire the AC-015 to a PC. Topics in this section: Mounting the Controller Power Wiring Typical Lock and Option Wiring...

  • Page 14: Mounting The Controller

    Skip this step when attaching the AC-015 to a US Gang Box. Drill a hole for cables as indicated on the wiring template.
  • Page 15 Return and secure the front case using the security screw and security tool provided in the Installation Kit. Door LED Mode LED M ODE DOOR 3 x 4 Matrix Keypad Bell Button Case Screw You now have mechanically installed the controller. Page 15 AC-015 06/04...

  • Page 16: Power Wiring

    Power Wiring POWER SUPPLY FROM TRANSFORMER 16V AC (1.5A, 25VA) MODE DOOR 12V DC LEAD ACID BATTERY UP TO 7 AH RECOMMENDED Typical Lock and Option Wiring DOOR MODE N.C. N.O. Common N.C. Page 16 AC-015 06/04...

  • Page 17: Reader/Keypad Wiring

    Reader/Keypad Wiring MODE DOOR +12V +12V READER 12V DC, Max. 300mA READER 12V DC, Max. 300mA Connecting a Controller to a PC MODE DOOR To PC Serial Port (COM Port) Page 17 AC-015 06/04...

  • Page 18: Features And Concepts

    In this section you will learn about all the features that are programmable. They are the basic features of the AC-015 and can be programmed directly from the controller’s programming keypad. You will learn about the controller’s various User levels, modes of...

  • Page 19: User Levels

    The Secure User can gain access when the AC-015 is in any of the three access modes. In Normal and Bypass Modes the Secure User needs to present their Primary Code only. In Secured...

  • Page 20: Master User

    Mode of operation by simply presenting its code once. The Master User is conveniant but less secure than Secured User. It is mainly intended for Security personals who needs quick access to many areas. Page 20 AC-015 06/04...

  • Page 21: Modes Of Operation

    Modes of Operation The AC-015 has three modes of operation: Normal Mode • MODE LED is green Mode Door GREEN This is the default mode. In Normal Mode the door is locked until a valid code from any User is presented to the controller.

  • Page 22: Secure Mode

    Secondary Codes to gain entry. After entering their Primary Code the DOOR LED will flash green for 10 seconds, during which the Secondary Code must be entered. A Master User only needs to present his code once to gain entry. Page 22 AC-015 06/04...

  • Page 23: Changing The Modes Of Operation

    Enter your 4-digit Normal/Secure Code (3838 is the initial Normal/Secure Code). • Mode Door The MODE LED will GREEN flash Green 3) Press the “#” key • The MODE LED will Mode Door GREEN turn green Page 23 AC-015 06/04...

  • Page 24: Changing From Normal Mode To Bypass Mode

    2) Enter your 4-digit Normal/ Bypass Code • Mode Door The MODE LED will GREEN flash Green Press the “#” key • The MODE LED will Mode Door GREEN turn Green • You are now in Normal Mode Page 24 AC-015 06/04...

  • Page 25: Tamper Conditions

    A tamper event may occur due to several reasons: • AC-015 cover is removed or broken. • A Reader or Keypad wire is disconnected from the AC-015 reader input terminal.

  • Page 26: Request To Exit (Rex) Button

    "Lock Strike Release Time". In this case the "Lock Strike Relay" only begins its count down once the REX button has been released. Door opening due to REX button will not generate chime sound. Page 26 AC-015 06/04...

  • Page 27: Programming Instructions

    AC-015’s features. Most of these features can be programmed via the AC-015’s programming keypad. The following pages describe how to program the AC-015 using the programming keypad. Topics in this section: Programming Menu Quick Reference Guide...

  • Page 28: Programming Menu Quick Reference Guide

    Changing Programming Code 1234 Changing Normal/Secure Code 3838 Changing Normal/Bypass Code Changing Door Release Time 4 Sec. Choosing Fail Secure/Fail Safe Fail Operation Secure Enrolling User Codes Deleting User Codes Returning to Default Factory Setting Changing Facility Code Page 28 AC-015 06/04...

  • Page 29: Entering Programming Mode

    Entering Programming Mode To begin programming the controller’s settings, the AC-015 must first place into Programming Mode. You may only enter Programming mode from Normal Mode. Programming is performed using the controller’s Keypad and Readers/Keypads when necessary. Press the “#” key for 2 seconds •...

  • Page 30: Exiting Programming Mode

    Wrong entries may reset the controller back to Normal Mode. While in Programming Mode if no key is pressed for 30 seconds the AC-015 will generate a long beep and return to Normal Mode. A short press on the “#” key may also return the controller to Normal Mode, accompanied by a long beep.

  • Page 31: Changing Open Code

    The MODE LED will turn Red ? ? ? ? 4) Enter the new 4-digit code you wish to set as Open Code. • You will hear 3 beeps • The system will return to NORMAL mode Notes: Page 31 AC-015 06/04...
  • Page 32 If default Open Code exists(2580), it will be erased on programming User Codes (programming menu 7). • Open Code is intended for initial installation testings and should be erased from the system (unless already erased automaticly on User Codes entry). Page 32 AC-015 06/04...

  • Page 33: Changing The Programming Code

    The MODE LED will turn Green ? ? ? ? 4) Enter the new 4-digit code you wish to set as the new Programming Code • You will hear 3 beeps • The system will return to Normal mode Page 33 AC-015 06/04...
  • Page 34 Notes: • Programming Code cannot be erased. Programming code 0000 is not valid and will not erase the programming code. Page 34 AC-015 06/04...

  • Page 35: Changing The Normal / Secure Code

    Red ? ? ? ? Enter the new 4-digit code you wish to set as the new Normal/ Secure change code. • You will hear 3 beeps • The system will return to Normal mode Page 35 AC-015 06/04...
  • Page 36 Notes: • The default Secure Mode Code is 3838. • Code 0000 will erase Secure Mode Code. Page 36 AC-015 06/04...

  • Page 37: Changing The Normal / Bypass Code And Door Chime Settings

    • The MODE LED will flash Orange Notes: • The Normal / Bypass Code also controls the Chime function for the AC-015. You may set the code to 4 available options. • No default Bypass code exists. Page 37 AC-015...
  • Page 38 Enter a 4-digit code ending with any digit except 0. The Bypass mode and the Chime function are enabled for both Normal mode and Bypass mode. You will hear 3 beeps The system will return to Normal mode Page 38 AC-015 06/04...

  • Page 39: Changing The Door Release Time

    • The MODE LED will flash Green 4) Construct the 4-digit code using the instructions below: First Digit - Signifies whether the unit is being used for fail secure (factory default setting) or fail safe operation. Page 39 AC-015 06/04...
  • Page 40 Entering 0512 means fail secure with a 5-minute siren sound time and a 12 second door release. • You will hear 3 beeps. • The system will return to Normal mode. Notes: • Default door open time is 4 seconds. Page 40 AC-015 06/04...

  • Page 41: Enrolling Primary & Secondary Codes

    Open Code. • Users who holds Secondary Code, i.e Secured Users and Master Users can gain entry in any mode of operation from ant Reader/Keypad. Enrolling Primary and Secondary Codes: Press the “#” key for 2 seconds Page 41 AC-015 06/04...
  • Page 42 Enter the 3-digit slot code you wish to assign User (for example, represents slot “3”). a.If the selected slot empty Mode Door • The DOOR LED will GREEN ORANGE remain Orange • The MODE LED will Page 42 AC-015 06/04...
  • Page 43 User now may have Primary Code only or both Primary and Secondary Codes. Now the controller returns to step (4), ready for the next 3 digit slot number that you want to assign with codes. Page 43 AC-015 06/04...
  • Page 44 When finished enrolling codes for the Users, press the “#” key for two seconds. • You will hear three beeps • The AC-015 will return to Normal mode Notes: • If a User at selected slot number already has both Primary and Secondary Codes, a long...

  • Page 45: Deleting User Codes

    ORANGE turn Red • The DOOR LED will turn Orange ? ? ? 4) Enter the 3-digit slot code you wish to delete from the system • The MODE LED will Mode Door flash Red ORANGE Page 45 AC-015 06/04...
  • Page 46 Ensure that your record of Users and their assigned slot numbers are stored in a secure location. Then, if you wish to delete a lost or forgotten codes from the system, you can identify the slot number from your records and delete it. Page 46 AC-015 06/04...

  • Page 47: Return To Factory Default Settings And Facility Code

    The DOOR LED will Mode Door flash Red • The MODE LED will remain Off For Return to Factory Programming: Press 0 again • The DOOR LED will Mode Door continue flashing Red • The MODE LED will Page 47 AC-015 06/04...
  • Page 48 For Facility Code Programming: Press 1. • The DOOR LED will Mode Door continue flashing Red GREEN • The MODE LED will flash Green ? ? ? Enter the 3-digit Facility Code (must be between Page 48 AC-015 06/04...
  • Page 49 Facility Code to disappear while still occupying the code slot number. • If Facility Code is not 000, programming any Proximity Card with another Facility Code is prohibited, however, PIN codes are not affected. Page 49 AC-015 06/04...

  • Page 50: Replacing A Lost Programming Code

    Programming Mode so that you may create a new Programming Code. The AC-015 must be in Normal Mode otherwise this will not work. Make sure that the MODE LED is Green before proceeding. Disconnect power from the AC-015...

  • Page 51: Replacing A Lost Normal / Secure Code

    Secure Mode, complete the following procedure to re-enter Normal Mode so that you may program a new Normal / Secure Code. The AC-015 must be in Secure Mode otherwise this will not work. Make sure that the MODE LED is Red before proceeding.

  • Page 52: Accessories

    Wiegand 26 Integrated Door Controllers AY-X09 Series PIN Readers AY-C09 / AY-D09 For indoor use Slim Stylish Design (Mullion) Includes LED Indicator Audible Buzzer Indicator Built in Tamper (w/ Rosslare Controllers) Includes Bell Button (w/ Rosslare Controllers) Page 52 AC-015 06/04...
  • Page 53 Reading Distance: 8 to 10cm RF Modulation: ASK at 125 kHz For indoor use Slim Stylish Design (USA Gang Box) Bi-Color Light Indicator Audible Buzzer Indicator Built in Tamper (w/ Rosslare Controllers) Includes Bell Button (w/ Rosslare Controllers) Page 53 AC-015 06/04...
  • Page 54 AY-C11 / AY-D11 Reading Distance: 8 to 10cm RF Modulation: ASK at 125 kHz For indoor use Slim Stylish Design (USA Gang Box) Bi-Color Light Indicator Audible Buzzer Indicator (w/ Rosslare Controllers) Built in Tamper (w/ Rosslare Controllers) Page 54 AC-015 06/04...
  • Page 55 Reading Distance: 7 to 12cm RF Modulation: ASK at 125 kHz For outdoor use Slim Stylish Design (UK or USA Gang Box, Mullion) Bi-Color Light Indicator Includes LED Control Input Audible Buzzer Indicator Built in Tamper Output Page 55 AC-015 06/04...
  • Page 56 Reading Distance: 8 to 10cm RF Modulation: ASK at 125 kHz For indoor use Slim Stylish Design (USA Gang Box) Bi-Color Light Indicator Audible Buzzer Indicator Built in Tamper (w/ Rosslare Controllers) Includes Bell Button (w/ Rossalare Controllers) Page 56 AC-015 06/04...
