Duplex Reference Edge Removal - Lexmark C540n Service Manual

5025-2xx, 4xx

Duplex reference edge removal

See
"Duplex reference edge" on page 7-5
Note: If the duplex reference edge is made out of plastic, then replace it.
If the duplex reference edge is made out of metal, then do not replace it.
Open the front door.
1.

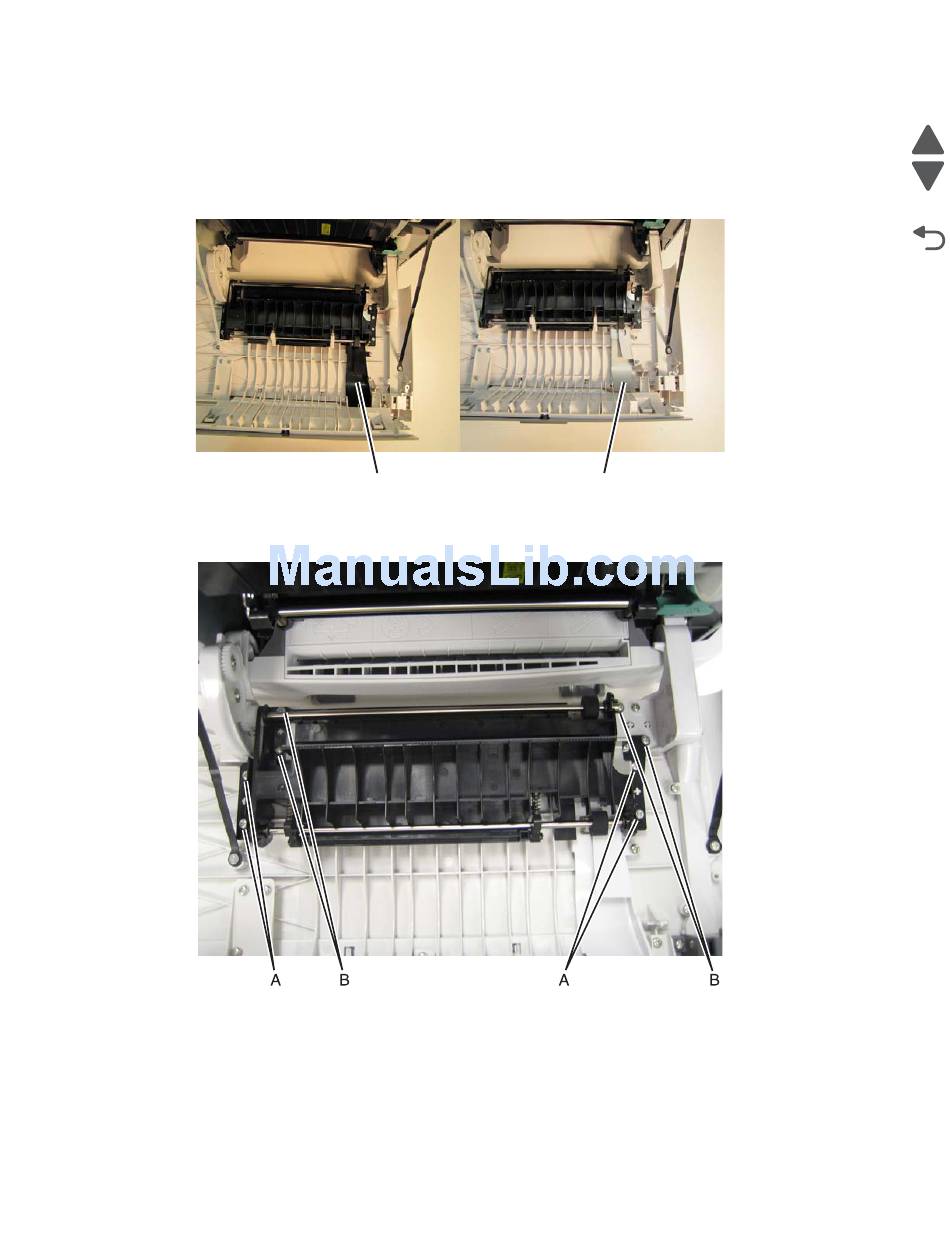

Remove the four short screws (A) in front, and the four longer screws (B) in the back of the duplex aligner.
2.
Service Manual
4-22
for the part number.
Plastic Metal
