Left Cover Assembly Removal - Lexmark C540n Service Manual

5025-2xx, 4xx

Left cover assembly removal

See
"Left cover assembly" on page 7-3
Remove the media tray.
1.
Position the printer with the left side hanging over the edge of the table.
2.

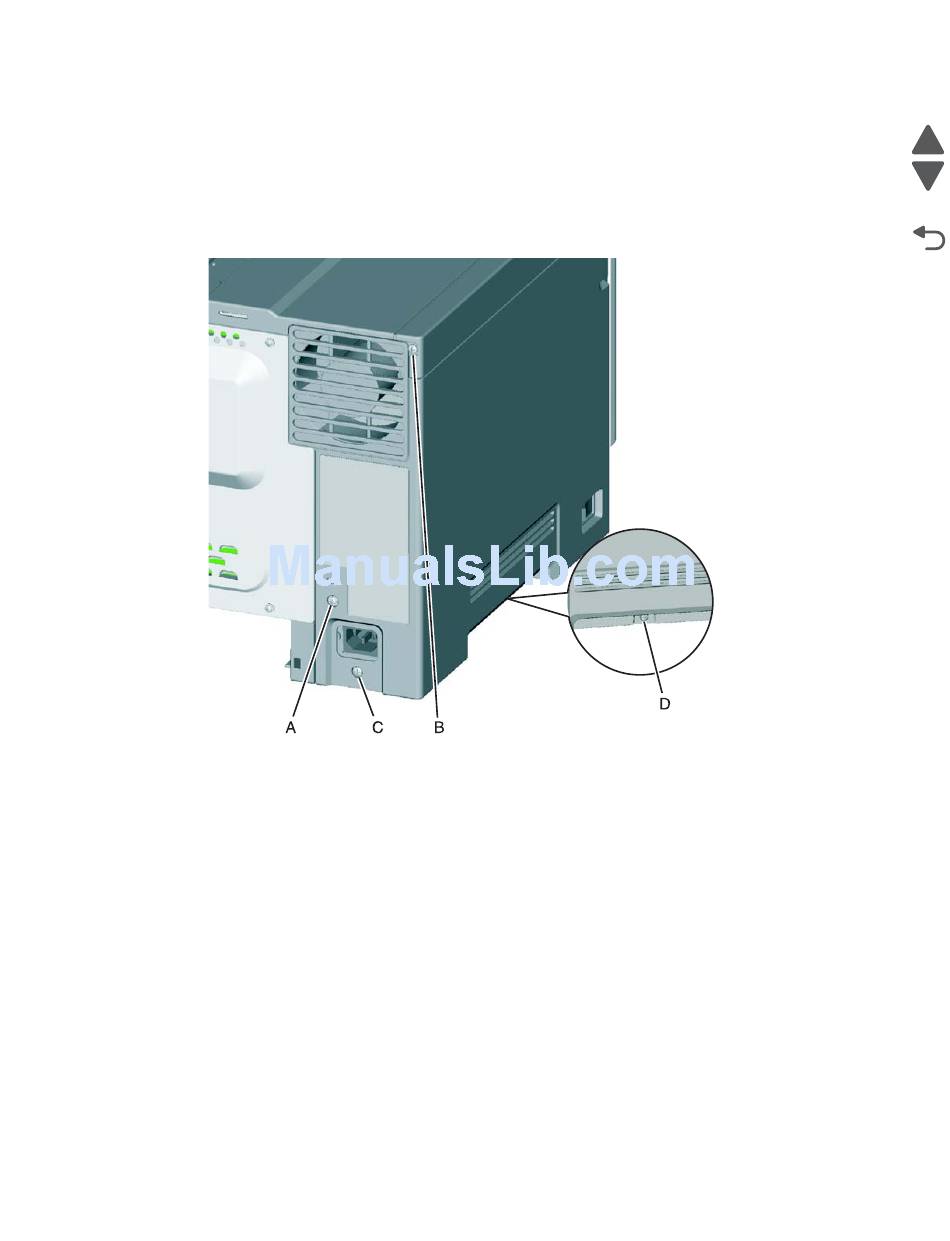

On the rear, remove the metal screw (A), the short plastic screw (B), and the longer plastic screw (C).
3.
Remove the screw (D) on the bottom of the cover.
4.
