PLATINUM inverter H
Start Up
Note
52 Installation and operating manual: PLATINUM inverter H
Version 01/2012
Mat. No. 753 840-AA

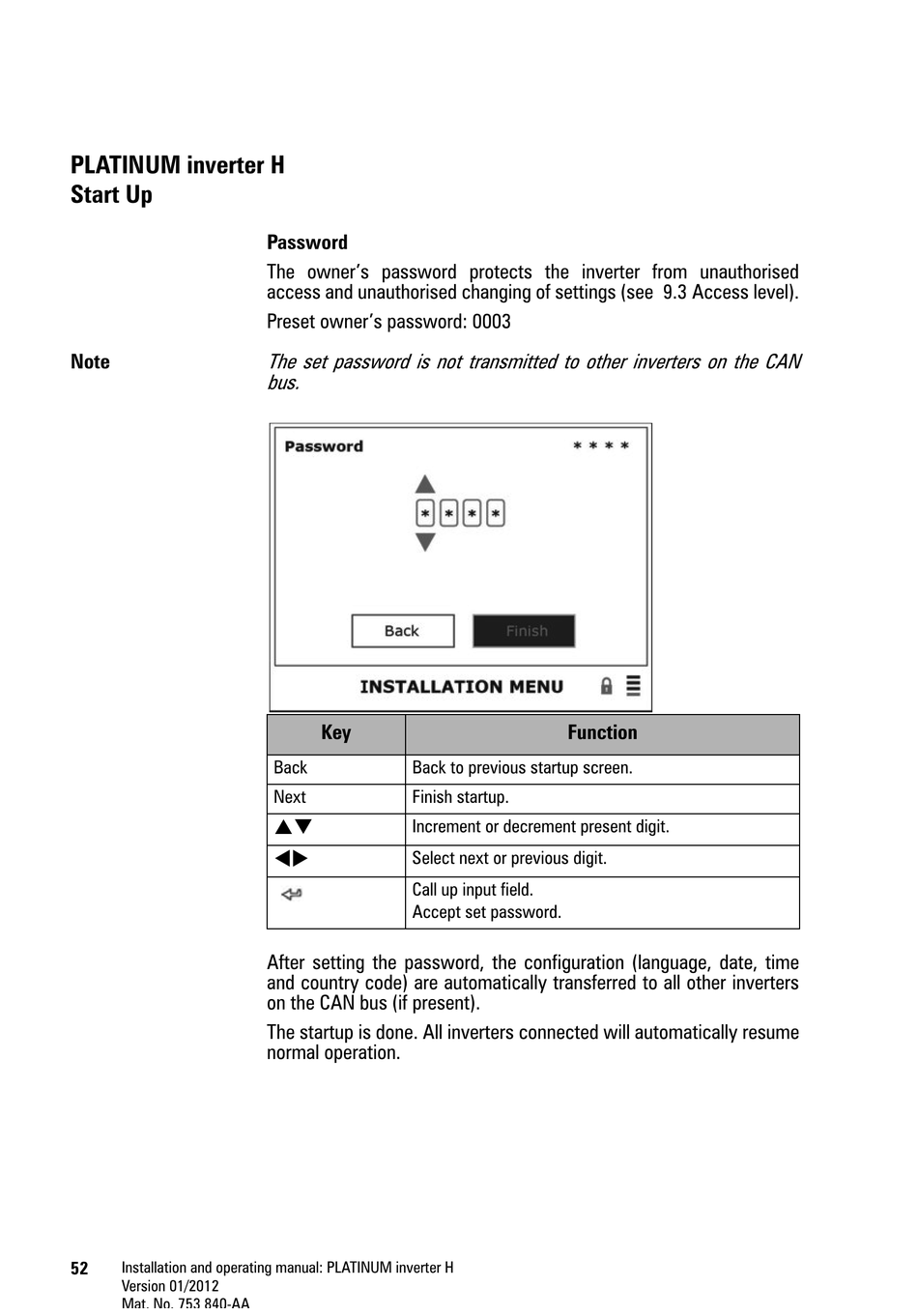

Password
The owner's password protects the inverter from unauthorised
access and unauthorised changing of settings (see 9.3 Access level).
Preset owner's password: 0003
The set password is not transmitted to other inverters on the CAN
bus.
Key
Back Back to previous startup screen.
Next Finish startup.
ST
Increment or decrement present digit.
WX
Select next or previous digit.
Call up input field.
Accept set password.
After setting the password, the configuration (language, date, time
and country code) are automatically transferred to all other inverters
on the CAN bus (if present).
The startup is done. All inverters connected will automatically resume
normal operation.
Function
