Platinum 13000 TL Installation And User Manual

Hide thumbs Also See for 13000 TL:
Table of Contents

Advertisement

Quick Links

Installation and user guide
Inverter
13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL
EN
As at 10/2013, Material no. 749 442-AC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 13000 TL and is the answer not in the manual?

Questions and answers

Related Manuals for Platinum 13000 TL

Summary of Contents for Platinum 13000 TL

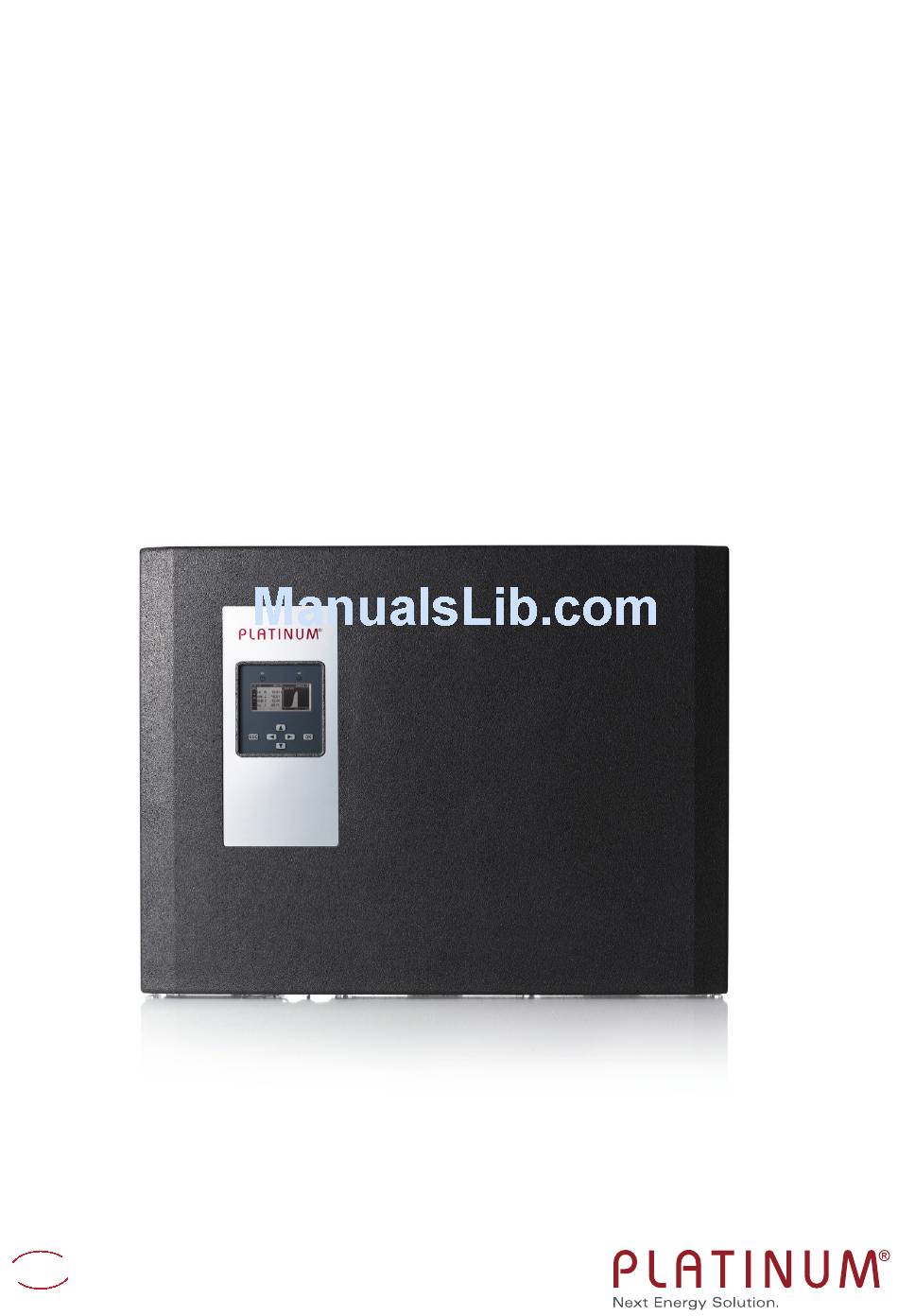

  • Page 1 Installation and user guide Inverter 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL As at 10/2013, Material no. 749 442-AC...
  • Page 2 Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...

  • Page 3: Table Of Contents

    Display Operation display Isolation from the generator field Menu Operate and navigate in the menu Menu tree SeTTINGS menu INfOrMATION menu Service menu Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...
  • Page 4 Maintenance and cleaning 7 .1 Maintenance 7 .2 Cleaning Errors and troubleshooting error display event list Technical data Taking out of operation Disposal Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...

  • Page 5: Introduction

    ▪ Detailed list of events for detecting/eliminating errors ▪ Overview of country and grid codes ▪ Declaration of conformity and certificates ▪ Manufacturer’s warranty Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...

  • Page 6: Symbols Used

    – CAUTION Potential danger Damage to property 1.3.3 Notes Notes give tips on how to work easily and safely or contain further information. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...

  • Page 7: Symbols On Product And Packaging

    Introduction 1.4 Symbols on product and packaging The following sticker is attached to the inverter: Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...

  • Page 8: Safety

    – National and international regulations and provisions ▪ ensure that all protection devices are working correctly. ▪ Observe the operating conditions - refer to “Technical data” on page 54. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...

  • Page 9: Installation

    Only use DIN 580 M10 ring bolts. The DIN 580 M10 ring bolts are not included in the scope of delivery. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...

  • Page 10: Unpacking

    The supplied brief guide can be found under the protector or under the protective fl ap in a pocket on the housing, see 16. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...
  • Page 11 2. Take off the protective foil. 3. Use the lifting gear to take the inverter off the pallet and transport it to the installation site. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...

  • Page 12: Assembly

    PLATINUM GmbH recommends that the inverter should not be installed in living quarters. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...

  • Page 13: Mounting The Inverter

    2. Grab the wall bracket (5) at the bottom and lift it up off the inverter. Mounting the inverter ≥258 ≥208 ≥204 ≥150 ≥150 Dimensions in mm Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...
  • Page 14 5. ensure that the inverter is fitted correctly on the wall bracket. 6. Secure the inverter by tightening the safety screws on the side (4). Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...
  • Page 15 Cables can be routed through the PowerBlock carrier TL Large as follows: ▪ from the front ▪ from underneath ▪ from the rear Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...

  • Page 16: Connection

    Dismantling the protector (wall-mounted device, free-standing device in the Power- Block carrier) t Grab the protector (7) with both hands by its underside and pull it off the inverter. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...
  • Page 17 If an external residual current protection device is required, PLATINUM GmbH recommends using a residual current protection device (rCD) of type A. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...
  • Page 18 2. Strip 18 mm of insulation from the AC voltage connection lines and add wire-end sleeves. Connect 1. Take off the cover (9) from the AC voltage connection by undoing 4 screws. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...
  • Page 19 – remove the screwdriver. Terminal Assignment Black Phase 1 Black Phase 2 Black Phase 3 L1 L2 Blue Neutral conductor Yellow Protective conductor Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...
  • Page 20 MPP trackers with 3 terminal areas for the DC voltage. The DC power levels may vary between connection areas, but should be distributed as evenly as possible. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...
  • Page 21 Up to 50 PLATINUM® inverters can be connected with monitoring devices to form a network with an overall length of up to 1,000 m. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...
  • Page 22 ▪ Outgoing cables: right-hand terminals A, B ▪ Shielding: Terminal 8 t ensure that signal lines A and B are not connected incorrectly. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...
  • Page 23 1. Detach the terminating connector (14) from the protector or from the display. 2. Connect the terminating connector to socket 1 of the first and last inverter. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...
  • Page 24 (SeLV) with a maximum voltage of 24 V. The alarm contact can be configured in the menu SeTTINGS –> ALArM fUNCTION; see 39. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...
  • Page 25 (7) on the upper holder and gently press it onto the housing. 2. Slide the lower part of the protector into the lower holder. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...
  • Page 26 13 mm) through the holes provided at the bottom of the protective flap and in the PowerBlock. 2. Secure the steel rope with a padlock. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...

  • Page 27: Placing Into Operation

    If data cannot be entered, the inverter displays the start screen. ▪ During initial operation, all inverters connected to the PLATINUM®network are blocked. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...

  • Page 28: Initial Operation Menu

    * The country code can only be changed for a period of 4 hours after initial operation and feed-in starts. This menu will not be displayed later. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...
  • Page 29 ▪ If the numbers set automatically are to be retained, confirm with NO and continue to the next menu option. The automatic numbers for all inverters in the network are transferred. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...
  • Page 30 The country code can only be changed for a period of 4 hours after initial operation and feed-in starts. This menu will not be displayed later. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...
  • Page 31 * These menus can only be changed for a period of 4 hours after initial configuration. These menus will not be displayed later. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...

  • Page 32: Operation

    ▪ Inverter not in feed-in mode LeD off Both LEDs flash at same time The inverter is running a network scan or making parameter settings. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...

  • Page 33: Operation Display

    ▪ Yesterday ▪ Current week ▪ Previous week ▪ Current month ▪ Previous month ▪ Current year ▪ Previous year ▪ Since initial operation Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...
  • Page 34 This display shows the actual (current) values for the voltage, current and power on the DC side and on the AC side for each inverter module. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...

  • Page 35: Isolation From The Generator Field

    (AC) before switching off the DC disconnect to minimise wear to the contacts. On devices with no DC disconnect t Disconnect the DC side from the solar generator using the external isolation device. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...

  • Page 36: Menu

    ▪ return to the higher-level menu without making any changes ▪ Adopt setting and return to the higher-level menu ▪ Open selected submenu Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...

  • Page 37: Menu Tree

    System Plant size Meter 2 Information Operating data System data Inverter type Inverter version The menu options are described in tables below. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...

  • Page 38: Settings Menu

    ▪ Set the alarm volume for the built-in buzzer on this inverter. 0 to 3 Possible values: 0 to 3 factory setting: 0 (alarm off) Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...
  • Page 39 Meter 2 counts the energy fed in since the last reset. ▪ Do not reset meter 2. Back ▪ reset meter 2. reset Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...

  • Page 40: Information Menu

    * eNS = Device for monitoring the network with allocated control elements When making contact with the PLATINUM® service department, have the serial number and event code to hand. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...

  • Page 41: Service Menu

    See section 6.5.6 Power reduction * See section 6.5.7 * These menus can only be changed for a period of 4 hours after initial configuration. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...
  • Page 42 ▪ with submenus 1007 .0 and 1007 .1 Parameter 1007 , ▪ with submenus 1007 .0 and 1007 .0.0 ▪ with the current value for 1007 .0.0 Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...

  • Page 43: Grid Support

    Q(U) hysteresis Q(U) closed-loop control according to the curve saved in the inverter. The curve can be parametrised via the PLATINUM® service tool. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...
  • Page 44 If the feed-in power of an inverter is reduced due to unbalanced load, no status message is output on the inverter. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...
  • Page 45 This menu can only be changed for a period of 4 hours after initial configuration. Power reduction Maximum enter the maximum power for this inverter according to the power specifications of the utility company. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...

  • Page 46: Maintenance And Cleaning

    Wait at least 40 minutes until the capacitors are discharged. f Make sure that no voltage is applied to the DC cables. 7.1 Maintenance The inverter is maintenance-free. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...

  • Page 47: Cleaning

    ▪ Vacuum cleaner ▪ Soft brush ▪ Pressured air In a dusty environment: ▪ regularly check the fan and cooling element and clean as required. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...

  • Page 48: Errors And Troubleshooting

    2. To exit the error display, press the  button. The event list is displayed. 3. exit the event list by pressing the ESC button. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...
  • Page 49 1. To exit the error display, press the  button. The event list is displayed. 2. exit the event list by pressing the ESC button. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...

  • Page 50: Event List

    Isolation error between ▪ Check isolation of PV cables PV+ and earth / PV– and ▪ AC installation (check N and Pe) earth Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...
  • Page 51 ▪ Arrange for all contacts and safety devices to phase (voltage peak) be checked, from the service connection to the inverter ▪ Arrange for the network quality to be checked Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...
  • Page 52 ▪ Inform service of error code if required ▪ Inform service of error code if required 2630 Diagnosis support in service situation 2990 Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...
  • Page 53 ▪ Inform service of error code if required 5000 Diagnosis support in service situation 5990 The inverter stores the warning in the event list Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...

  • Page 54: Technical Data

    Max. short circuit current (max. duration 5 ms) <100 A Max. switch-on current <20 A Efficiency 13000 TL Max. efficiency 97 .7% euro efficiency 97 .4% Type name 13000 TLxD Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...
  • Page 55 22001 TL 97 .7% 98.0% 98.0% 98.0% 97 .4% 97 .5% 97 .5% 97 .5% 16000 TLxD 19000 TLxD 22000 TLxD 22001 TLxD Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...

  • Page 56: Ambient Conditions

    Protection class (with the IP65 in accordance with DIN eN 60529 exclusion of the digital interface) Level of contamination II, external and internal use possible Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...
  • Page 57 ▪ 16000 TL, 19000 TL, 22000 TL, 22001 TL The technical data is valid for a maximum height of 2,000 m above sea level. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...

  • Page 58: Taking Out Of Operation

    The procedure for taking inverters out of operation is the reverse of that for installation and assembly. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...

  • Page 59: Disposal

    ▪ PLATINUM® inverters can be fully returned to PLATINUM GmbH at the end of their service life. ▪ PLATINUM® inverters can be disposed of via municipal waste management for electrical devices. Installation and user guide for inverter PLATINUM® 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL...
  • Page 60 PLATINUM GmbH PLATINUM® Service Pfannerstraße 75 Tel.: +49 7522 9738-400 88239 Wangen im Allgäu, Germany fax: +49 7522 9738-410 Tel.: +49 7522 9738-0 service@platinum-nes.com fax: +49 7522 9738-100 info@platinum-nes.com www.platinum-nes.com...
