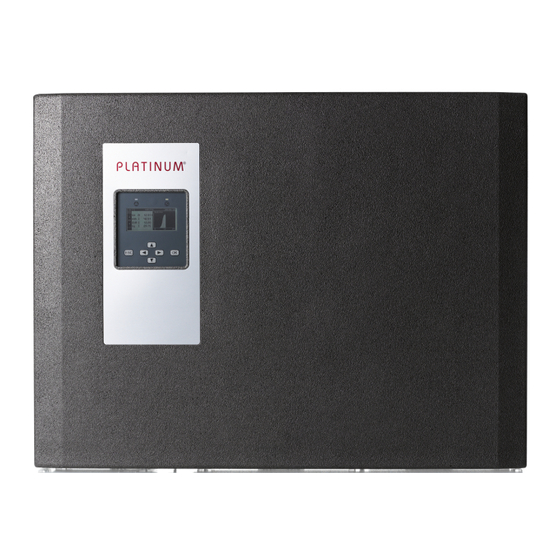

I n s t a l l a t i o n a n d O p e r a t i n g Ma n u a l
I n v e r t e r
1 3 0 0 0 T L , 1 6 0 0 0 T L , 1 9 0 0 0 T L , 2 2 0 0 1 T L , 2 2 0 0 0 T L
E N
S t a n d 0 4 / 2 0 1 1 , Ma t . N o . 7 4 9 4 4 2 - A A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 13000 TL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Platinum 13000 TL

Summary of Contents for Platinum 13000 TL

  • Page 1 I n s t a l l a t i o n a n d O p e r a t i n g Ma n u a l I n v e r t e r 1 3 0 0 0 T L , 1 6 0 0 0 T L , 1 9 0 0 0 T L , 2 2 0 0 1 T L , 2 2 0 0 0 T L S t a n d 0 4 / 2 0 1 1 , Ma t .
  • Page 2 PLATINUM Inverter TL Thank you for buying a PLATINUM inverter 13000 TL, 16000 TL, 19000 TL, 22000 TL, 22001 TL. In this instruction, we have compiled all information that is important for installation and operation. If you still have any trouble, please call our service hotline.

  • Page 3: Menu Structure

    65 The service menu is exclusively relevant for service purposes; it is not accessible directly from the menu. For access to service menu see 8.1 Service Menu. Installation and operating manual: PLATINUM Inverter TL Version 04/2011 Mat. No. 749 442-AA...

  • Page 5: Table Of Contents

    9.2 Cleaning ............82 Installation and operating manual: PLATINUM Inverter TL Version 04/2011 Mat.
  • Page 6 15 Manufacturers' Warranty of Diehl AKO Stiftung & Co. KG ......94 Installation and operating manual: PLATINUM Inverter TL Version 04/2011 Mat.

  • Page 7: Symbols

    Î List level 1 List level 2 Layout of numbered lists: 1. List level 1 2. List level 1 2.1 List level 2 2.2 List level 2 Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...

  • Page 8: Symbols On The Product

    PLATINUM Inverter TL Symbols Symbols on the product Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...

  • Page 9: Safety And Dangers

    Â Observe warranty conditions. If these warranty conditions and the information contained in this Note installation and operating manual are not observed, all warranty claims will expire. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...

  • Page 10: Function

    PLATINUM Inverter TL Function Function Variations The PLATINUM line includes the following variants with different power ranges (see 13 Technical Data): Î PLATINUM 13000 TL Î PLATINUM 16000 TL Î PLATINUM 19000 TL Î PLATINUM 22000 TL Î PLATINUM 22001 TL Possible types: Î...

  • Page 11: Assembly

    Î Protector Î Brief instruction Free-standing device, outside: Î PLATINUM inverter with protector preassembled in Power Block protective housing with protective cover and protective grate Î Brief instruction A detailed installation and operating manual is available in the Note download area of our website www.diehl.com/photovoltaics.

  • Page 12: Transport

    (2) Recessed grip  Screw DIN 580 M10 eyebolts into threaded holes 1 on inverter.  Fasten lifting gear on eyebolts. Eyebolts are not included in delivery. Note Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...

  • Page 13: Unpacking

    Â Lift inverter out of bottom part of packaging 3. Use wooden protection elements 2 for carrying. Â Take inverter to installation site. On installation site: Â Unscrew wooden protection elements 2 from inverter. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 14 Â Take inverter to installation site on transport pallet 1. Â Put transport pallet with inverter on even ground. Â Remove plastic protective packaging. Â Put inverter on intended installation site. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...

  • Page 15: Mounting The Inverter

    Assembly Mounting the inverter Danger to life due to electric shock! Â Have the inverter opened exclusively by the PLATINUM service or service partners authorized by DIEHL Controls. Danger Danger to life due to incorrect connection of inverter! Â Have inverters installed by qualified specialists exclusively.
  • Page 16 Fig. 4 Removing protector (1) Protector For versions with protector, prior to installation of inverter: Â Hold protector 1 on bottom side and pull away from inverter. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 17 Observe a minimum distance of 50 cm between inverter and ceiling. Â Drill the mounting holes and insert the screw anchors. Â Bolt down mounting fixture 1. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 18 Mounting bolts 4 are seated in the slotted pieces. Â Verify that minimum distances are kept (see Fig. 6). Â Verify that the inverter is hanging in the mounting fixture correctly. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 19 (1) Power Block protective housing TL Large  Put inverter in intended position.  Secure inverter against toppling over and shifting with screws in base of Power Block protective housing TL Large 1. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...

  • Page 20: Connection Of The Inverter

     Use exclusively DC cable connectors and DC receptacles of the same type and manufacturer. Caution  Make sure that cable connector in latched in socket correctly. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 21 For free-standing devices, the possibilities for cable routing through Power Block protective housing TL Large are as follows: Î from front Î from below Î from back Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 22 (2) Holder for installation and operating manual (3) Fan (4) Switch knob DC disconnector (optional) (5) Cover of AC voltage terminal (6) Bushing for AC voltage cable (7) Type plate Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 23 AC power varies along with DC power. Â Observe maximum admissible unbalanced load of AC side. Caution PLATINUM Inverter TL feed on all three phases of the mains Note connection. Fig. 9 Cover of AC voltage terminal (1) Mounting screws for cover...
  • Page 24 Note Clamp suitable for single-wire (rigid) lines with line diameter of 2.5 to 10 mm or multi-wire (flexible) lines with line diameter of 2.5 to 6 mm Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 25 Â Fixate AC cables with screw connection of bushing for AC voltage connection cable. Â Close cover of AC voltage connection area. Â Fasten cover with screws. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 26 (2) DC terminal - (3) DC terminal + (4) Fan PLATINUM Inverter TL are equipped with three MPP trackers working Note separately, with three connection areas for direct voltage. Â Distribute strings of PV generator among the three areas so that...
  • Page 27 (3) Nwtwork connector for PLATINUM network (EIA 485) (4) Connection diagram for terminating resistor (5) PC interface to EIA232 (exclusively for service purposes) It is possible to connect up to 50 PLATINUM inverters. Note Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat.
  • Page 28 300 mW (7) Supply voltage for ext. consumer 0 V (8) Shielding EIA 485 (RS485) (9) Line A for PLATINUM network (EIA 485) (10)Line B for PLATINUM network (EIA 485) (11)Line A for PLATINUM network (EIA 485) (12)Line B for PLATINUM network (EIA 485) Terminal strip is protected through cover.
  • Page 29 RJ45 plugs or a cable on terminal connector (terminals A and B) (see Fig. 12). Â For lines without RJ45 plugs, connect lines A and B in RJ45 plugs on connectors A and B. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 30 Note fixated with a sticker labelled Netzwerk Terminierungsstecker / Network Termination Plug. On first and last inverter in PLATINUM network:  Plug termination plug into slot for network connection 1. Alarm contact  Connect any external indicator device to the potential-free contact.
  • Page 31 (3) lower fixture  Put upper part of protector 2 on upper fixture 1 and slightly push down housing.  Slide bottom part of protector in lower fixture 3. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 32 Â Lift protective cover as far as it will go. Â Push protective cover to the right. Â Close protective cover. It is possible to lock the protective cover as a protection from impermissible access. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 33 Â Thread cable rope or similar (max. diameter 13 mm) through designated holes 1 in bottom of cover and in Power Block protective housing. Â Secure cable rope or similar with lock. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...

  • Page 34: Start Up

    All inverters that are not operated during the configuration will show the blocking screen. If parameters of the inverter have been adapted to special Note requirements of the energy supplier, this is indicated on the start screen. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...

  • Page 35: Initial Startup Of Inverter

    Â Switch on the main power supply (fuse). For inverters with DC disconnector: Â Set switch knob to 1. The inverter is supplied with power. Configuration through the following dialogs. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 36 When the network scan is completed, the display shows the number of detected bus participants. In case of a single inverter, the display shows 01. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 37 With three inverters installed, the left-hand one is allocated the no. 1, Example the middle one no. 2 and the right-hand one no. 3. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 38 The inverter adopts the next available number. After OK was selected: Â Allocate numbers to inverters in the required sequence. The inverter adopts the next available number. The display shows the screen below. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 39 After the period has expired, the setting cannot be changed anymore. Function Select country for installation. Accept selection. To select country code: Â Select country for installation. Â Press OK key. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 40 If an inverter is replaced, it is exclusively possible to change the Note country code of the replacement inverter. Date Function Increment or decrement present digit. Select next or previous digit. Accept date setting. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 41 After setting the time, the configuration (language, date and time) are automatically transferred to all other inverters in the network (if available). After the data transmission, the inverter will show the menu Time settings (see 7.6 Settings). Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...

  • Page 42: Phase Balancer

    (see 8.1 Service Menu). Exchanging inverters If one or more PLATINUM inverters in a PV system are replaced by another device, it is possible to transfer the device numbers of the replaced inverters.
  • Page 43 Accept selected device number. On every replaced inverter: Â Select desired device number. Â Press OK key. The inverter automatically transmits the device numbers to all other inverters. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 44 Inverter shows device number of the replaced device in the lower left corner. After device replacement:  Set date and time. Reassigning numbers  Reassigning numbers see 6.1 Initial startup of inverter. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...

  • Page 45: Operation

    PLATINUM Inverter TL Operation Operation DC disconnector PLATINUM inverters 13000 TL, 16000 TL, 19000 TL, 22000 TL, Note 22001 TL are equipped with optional separate DC separators at each of the three DC inputs. The standard IEC-62109 requires the possibility of separating from the PV generator without any tools.

  • Page 46: Display And Operation

    (2) LED red (3) Scroll arrows horizontal (4) Title (5) LED green (6) Date (7) OK key (8) Navigation keys (9) ESC key (10)Device number (11)Scroll arrows vertical (12)Day Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 47 Date display in formats DD.MM.YY, MM.DD.YY oder YY.MM.DD. Adjustable in menu Time settings. Keys The functions of the keys are indicated in the tables under the illustrations. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...

  • Page 48: Standard Screen

    DC power of the inverter Main Menu Function Navigate in the menu. Call up the selected menu. To return to main menu from all menus: Â Press ESC repeatedly. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...

  • Page 49: Operation Display

    Number in the top left corner of the graphic: Î maximum value of scale Î dependent on inverter power Horizontal axis in graphic: Î time scale (e. g. hours of a day) Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 50 Show current phase 1, phase 2 or phase 3: Î List of current electrical values for DC and AC side. Î Separate AC currents for all three phases. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 51 Call up screen Current Phase 1. Call up screen Current Phase 3. Back to Main Menu. Function Call up screen Current Phase 2. Call up screen Operation Display. Back to Main Menu. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 52 Î Since startup The values displayed by the inverter may differ from the readings of Note calibrated electricity meters. (1) Physical values (2) Graphic of physical value Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 53 Table: For the display period TODAY, the current power value is displayed. For all other periods, the maximum value is displayed. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...

  • Page 54: Settings

    In the menu Time settings, the following settings are possible: Î Date Î Time Î Date format Î Daylight saving time Function Navigate in the menu. Back to menu Settings. Call up the selected menu. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 55 To accept time setting: Â Select SELECT. Â Press OK key. The inverter automatically shares the new time setting with all network participants. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 56 Return to menu Time setting. MANUALLY Î Manual setting of daylight saving time required. AUTOMATIC Î Inverter sets daylight saving time automatically, depending on set country and calendar. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 57 Inverter uses set time unchanged. Language Function Navigate in the menu. Back to menu Settings. Accept selected language. The inverter automatically shares the new language setting with all network participants. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 58 Î Alarm contact deactivated. INTERVAL Î The alarm contact (NO contact) opens and closes periodically if a safety-relevant or blocking error occurs. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 59 Î Close alarm contact temporarily while selecting a menu item. Function Increase or reduce contrast or brightness. Navigate between input fields. Back to menu Settings. Apply setting. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 60 Navigate between input fields. Back to menu Settings. Apply setting. If the inverters are connected to the PLATINUM network, the input of Note the value for the rebate is only necessary in one inverter. After the input is finished, the value is automatically transferred to all other inverters.
  • Page 61 Function BACK Back to menu Settings. RESET Set energy meter to 0. Select BACK or RESET. Confirm selection. Back to menu Settings. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...

  • Page 62: Information

    Shows feed data of the inverter since the startup. Î Resetting is not possible. METER 2 Î Shows feed data of the inverter since the latest reset of meter 2. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 63 Shows the name of the PV system. NO. OF PARTICIPANTS Î Indicates number of network participants (e. g. inverter and monitoring devices such as PLATINUM PV-Monitor, PLATINUM ViewMaster and PLATINUM Webmaster). NO. OF INVERTERS Î Shows the number of inverters in the network.
  • Page 64 TYPE Î Indicates inverter type. Î Indicates inverter serial number. When contacting the PLATINUM service, have the serial number Note ready. After changing the inverter network parameters, the display indicates USER-DEFINED NETWORK MONITORING.. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat.
  • Page 65 Navigate between more information screens. Back to the Main Menu. Back to the Main Menu. FIRMWARE Î Shows the inverter software version. EIA485 Î Shows the data bus software version. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 66 Call up screen Operating data. Navigate between more information screens. Back to the Main Menu. Back to the Main Menu. HARDWARE Î Shows shardware version of the components. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...

  • Page 67: Error Display

    If available: Warning  Set DC disconnector to 0.  Notify PLATINUM service. To delete the error display:  Press any key. The inverter shows the event list. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 68 Operation Blocking errors Danger to life due to electric shock! Â Have the inverter opened exclusively by the PLATINUM service or service partners authorized by DIEHL Controls. Danger In case of a blocking errror: Î the inverter is permanently off.
  • Page 69 Until the error is resolved: Î The inverter displays the screen Non-blocking error. Î The red LED is flashing. Â Delete error display with key ESC. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...

  • Page 70: Service

    Â Go to menu Settings and select menu item Time setting and press buttons W and X for about 3 s. Function Navigate in the menu. Return to standard display. Call up the selected menu. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 71 In some supply areas, the values for supply voltage and frequency may differ temporarily or permanently from the factory settings. It is possible to adapt the PLATINUM inverter to these values. Contact the PLATINUM service for more information. The screens Parameter show the set parameters, the country code and the applicable directive.
  • Page 72 (unbalanced load) and the reaction time according to the specifications of the network operator. Note Diehl Controls recommends setting the PhaseBalancer to OFF (factory setting) and exclusively entering modifications when desired by the energy provider. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 73 (e.g. in case of an admissible unbalanced load of 0 W). ERROR REDUCE Î If an inverter fails, the two other inverters limit the AC output to the set unbalanced load. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 74 Increment or decrement present digit. Select next or previous digit. Back to the Main Menu. Apply setting. Range of values: Î 0 s to 3,600 s Factory setting: Î 300 s Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 75 While saving the data, the red and green LEDs flash. If the feeder line of an inverter is reduced due to an unbalanced load, Note then no status message is sent to the inverter. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 76 Grid support Function Navigate in the menu. Back to the Service menu. Confirm setting. REMOTE Î External device (PLATINUM WebMaster) sets cosinus phi or reactive power. COSINUS PHI Î Set cosinus phi according to the energy provider’s specifications. REACTIVE POWER Î...
  • Page 77 In the beginning or end of a value: Select next or previous line. Back to the Service menu. Confirm settings. Range of nominal power values: Î 0 – 50 % of nominal power Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 78 Start Up Function Back to the Service menu. Back to the Service menu. Shows startup date. The menu is only a display. Values cannot be changed. Note Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 79 PLATINUM Inverter TL Service Meter Function Back to the Service menu. Back to the Service menu. The menu is only a display. Values cannot be changed. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 80 To change the inverter numbering after startup: Â Select Reconfiguration in the Service Menu. Â Change inverter numbers see 6.1 Initial startup of inverter, subsection Allocating inverter numbers. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...

  • Page 81: Maintenance

    (DC/AC) for at least 5 minutes after switching off. Â Ensure that the DC cables are de-energized. In case of a PLATINUM inverter without DC disconnector: Â Disconnect in the following order: 1. Remove cable from terminal strip on AC side.

  • Page 82: Cleaning

    Â Clean ventilation openings with: vacuum cleaner soft brush compressed air In a dusty environment: Â Check fan and cooling elements regularly and clean them if necessary. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...

  • Page 83: Placing Out Of Operation

    Ensure that the DC cables are de-energized. It is possible that DC cables carry dangerously high voltages even if the DC disconnector is switched off. In case of a PLATINUM inverter without DC disconnector: Â Disconnect in the following order: 1.
  • Page 84 In case of a return consignment: Â Pack the inverter in the packaging of the replacement. If a single inverter is returned: Â Demand additional packaging from Diehl-Controls or reuse it. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 85 Â Put bottom part of packaging on transport pallet 4. Â Put inverter in bottom part of packaging 3. Â Put upper part of packaging 1 on inverter. Â Secure the box with packing straps. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 86 Packing up the free-standing device Fig. 22 Packing up the free-standing device (1) Transport pallet  Put transport pallet 1 on even ground.  Put inverter on transport pallet 1. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...

  • Page 87: Disposal

    Â Dispose of packaging and consumed parts according to the rules and regulations applicable in the country where the device was installed. Â Do not dispose of the PLATINUM inverter in the household waste. DIEHL Controls takes back PLATINUM inverters completely. Note It is possible to dispose of PLATINUM inverter through communal disposal of electrical appliances.
  • Page 88 2080 System incident on feed phase If error occurs frequently: (voltage peak) Have all bondings and fuses between the consumer’s terminal and the inverter checked. Have the mains quality checked. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 89 Provide the service with the error code if required. 2630 Diagnosis support during Provide the service with the error code if required. service 2890 2710 Max. AC exceeded Check AC side for short circuit. 2730 Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 90 Inverter stores warning in event memory Causes 5000 Diagnosis support during Provide the service with the error code if required. service 5990 Inverter stores warning in event memory Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...

  • Page 91: Technical Data

    EIA 485, 2x RJ45 Western Modular add. plug connector with terminal screws Service interface EIA 232, SubD 9-pole socket Potential-free contact 1 change-over contact, maximum 24 V /2A, plug connector with terminal screws Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 92 Transformerless, DIVE, RAC-MPP, ENS according to VDE 0126-1-1 Type name 13000 TLD 16000 TLD 19000 TLD 22000 TLD 22001 TLD Technical data apply to maximum height above MSL of 2,000 m. Note Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...

  • Page 93: Eu Declaration Of Conformity

    PLATINUM Inverter TL EU Declaration of Conformity EU Declaration of Conformity Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...

  • Page 94: Manufacturers' Warranty Of Diehl Ako Stiftung & Co. Kg

    Stiftung & Co. KG Limited manufacturer's guarantee of Diehl AKO Stiftung & Co. KG for PLATINUM string inverter S, TL for the third to the tenth year after installation/start of operation valid for PLATINUM inverters from the delivery date February 01, 2011 (Address: D-88239 Wangen im Allgäu, Pfannerstraße 75, Federal...
  • Page 95 PLATINUM series affected. In addition, a guarantee incident shall be ruled out to the extent that an exclusion situation in the sense of the following section 8 exists, occurs or has occurred.
  • Page 96 Diehl AKO (including the installation and opera- Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 97 Diehl AKO (inclu- ding the installation and operating instructions for the string inverters for photovoltaic systems of the PLATINUM series in question) Î removal, damage or destruction of the sealing or the name plate attached by Diehl AKO Î...
  • Page 98 Federal Repu- blic of Germany. Otherwise, the places of jurisdiction according to the Code of Civil Proceedings shall remain in effect. Installation and operating manual: PLATINUM Inverter TL Version: 04/2011 Mat. No. 749 441-AA...
  • Page 100 Diehl AKO Stiftung & Co. KG PLATINUM Service Pfannerstraße 75 Tel: +49 7522 73-777 88239 Wangen im Allgäu, Deutschland Fax: +49 7522 73-737 Tel: +49 7522 73-700 service.platinum@diehl-controls.com Fax: +49 7522 73-710 platinum@diehl-controls.com www.diehl.com/photovoltaics...

This manual is also suitable for:
