If the device PIN is correct and the WPS handshake is successfully done, AP's Wi-Fi Protected Setup page will be
shown as below.
Other pages such as Wireless Basic Settings page and Wireless Security Setup page will also be updated appropriately as
described in previous sections. In this case, AP is in un-configured state before the station initiates the WPS handshake.
According to the WPS spec, AP will create a wireless profile with WPA2-mixed mode and a random-generated key upon
successfully doing the WPS handshake. However, AP will use the original wireless profile and give it to the station if AP is
already in configured state. That means all settings of AP will not change. Hence, all WPS related pages keep the same.

Push Button method

Wireless Gateway supports a virtual button "Start PBC" on the Wi-Fi Protected Setup page for Push Button method. If
users push a virtual button "Start PBC", AP will initiate a WPS session and wait for any station to join. At this moment,
AP will detect whether there is more than one station that starts the PBC method. When multiple PBC sessions oc-
cur, users should try PIN method.
After users push AP's virtual button "Start PBC", they must go to station side to push its button within two minutes.
If the WPS is successfully done, AP will give its wireless profile to that station. The station could use this profile to
associate with AP.

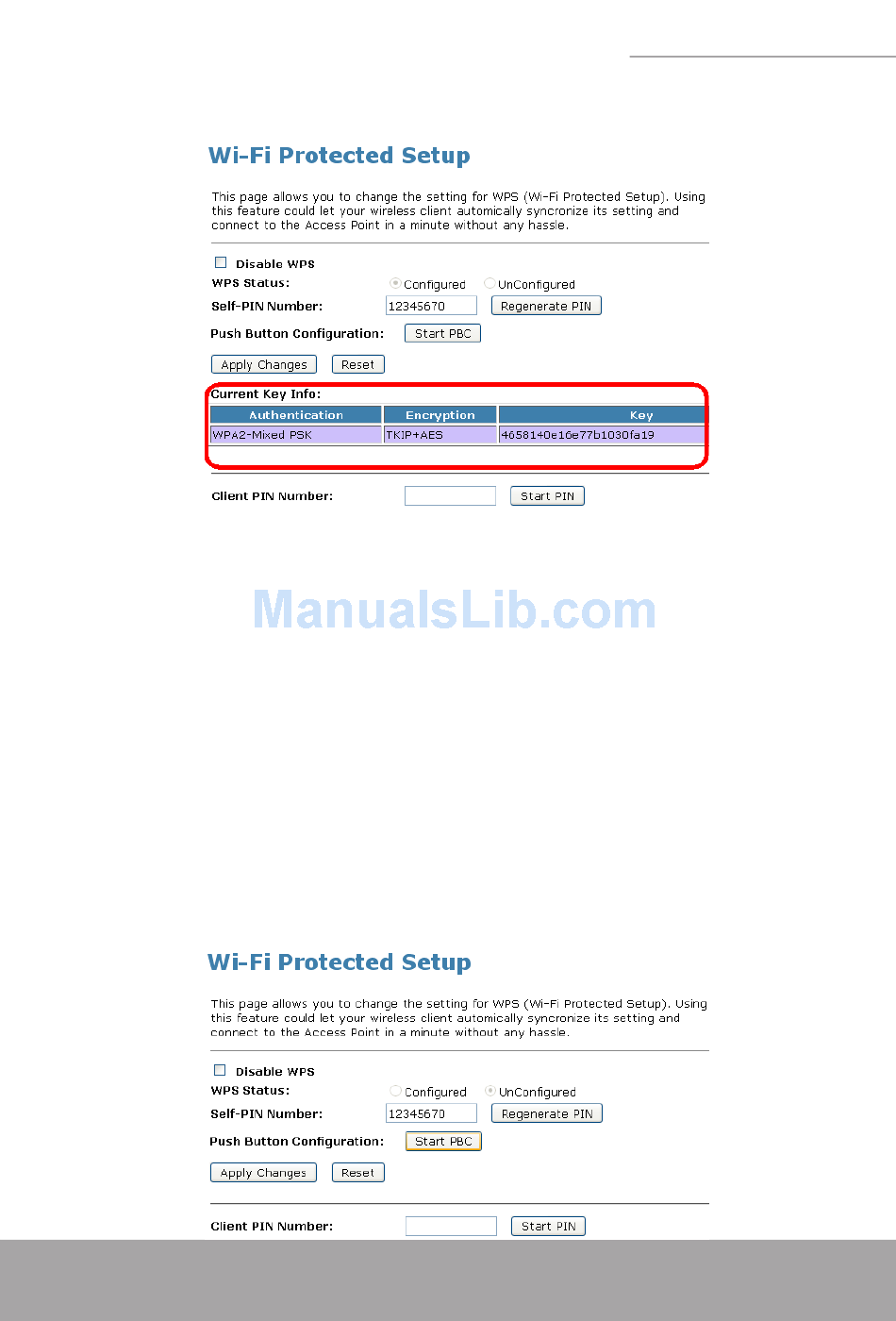

From the left-hand Wireless -> WPS menu. The following page is displayed:
Make sure AP is in un-configured state.
Click Start PBC.
