Modecom MC-421 User Manual page 48

WLAN Router

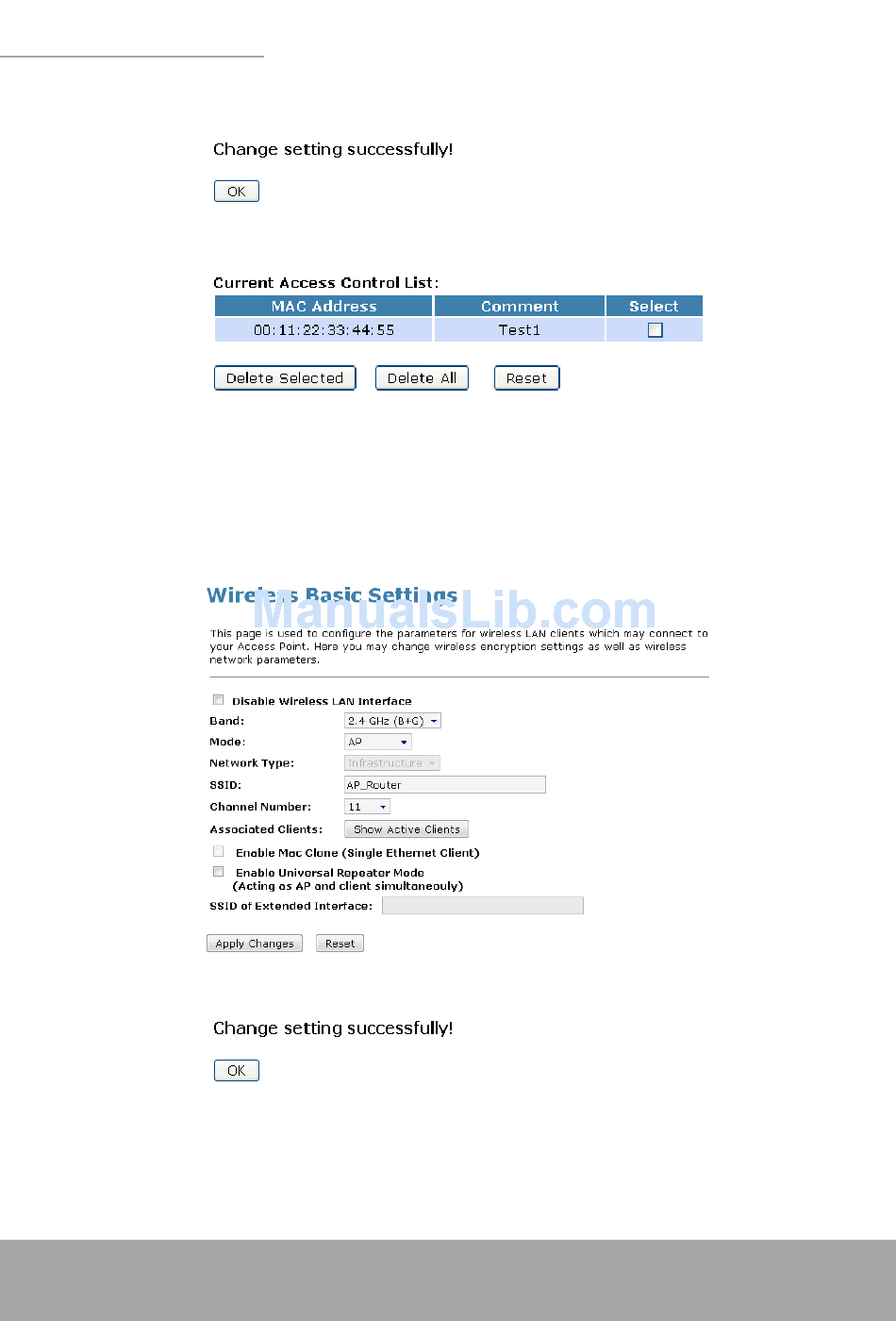

Change setting successfully! Click on OK button to confirm and return.
The MAC Address that you created has been added in the Current Access Control List.
Configure AP (Access Point) + WDS (Wireless Distribution System)
From the left-hand Wireless menu, click on Basic Settings.
From the Mode drop-down list, select AP+WDS.
Enter SSID for example AP_Router.
From the Channel Number drop-down list, select a Channel.
Click Apply Changes button.
Change setting successfully! Click on OK button to confirm and return.
From the left-hand Wireless menu, click on WDS settings.
Check on the option Enable WDS.
Enter the MAC Address.
Enter the Comment.
www.modecom.eu
48
