WLAN Router

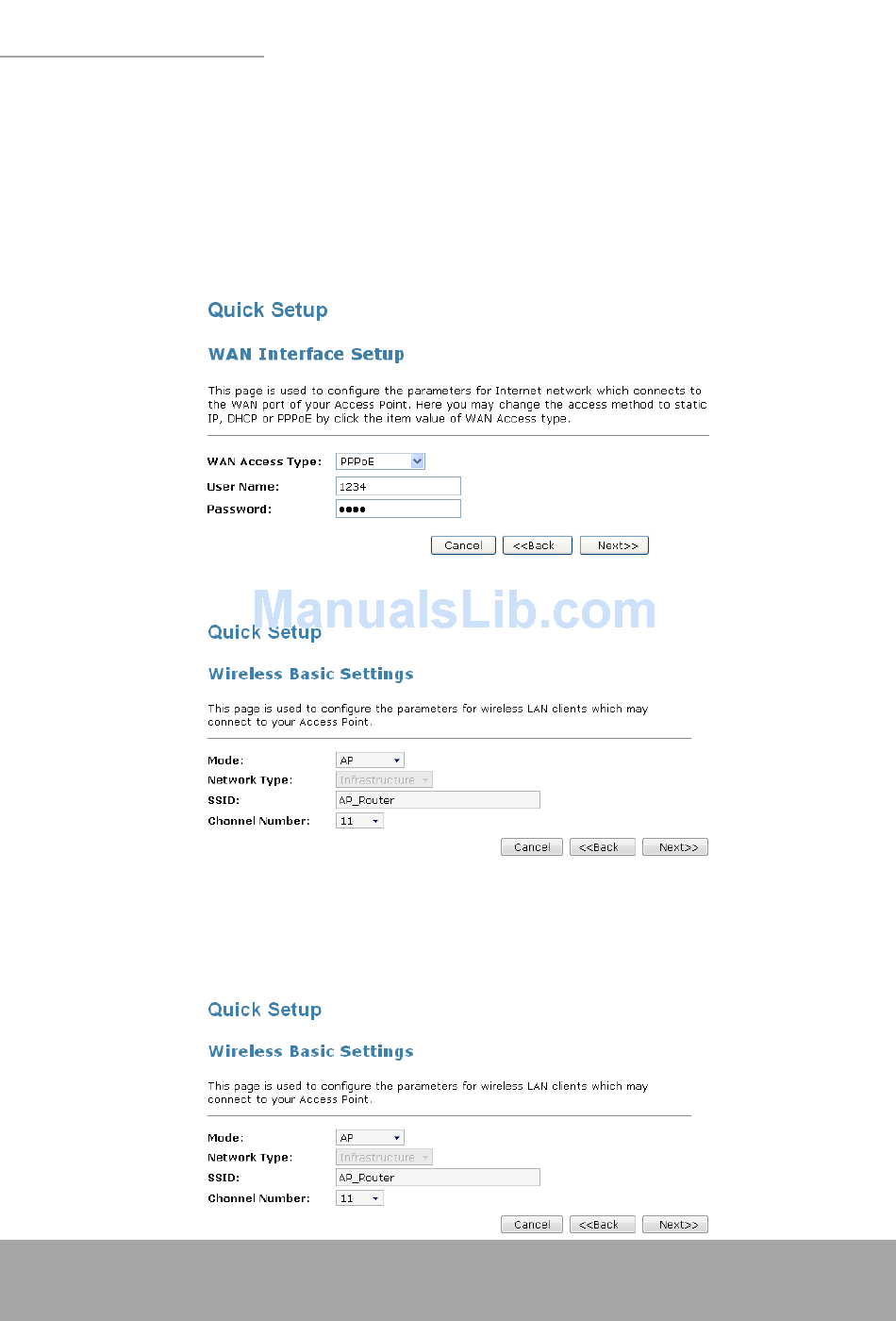

PPPoE

In this mode, the device is supposed to connect to internet via ADSL/Cable Modem. The NAT is enabled and PCs
in four LAN ports share the same IP to ISP through WAN port. The connection type can be setup in WAN page by
using static IP.
From the WAN Access Type drop-down list, select PPPoE setting determined by your Network Administrator or ISP.
Enter User Name for example 1234.
Enter Password for example 1234.
Click Next>>.

Wireless Basic Setup

This page is used to configure the parameters for wireless LAN clients which may connect to your Access Point.

AP (Access Point)

Access Point is used to configure the parameters for wireless LAN clients who may connect to your Access Point.
From the Mode drop-down list, select AP setting.
Enter SSID for example AP_Router.
From the Channel Number drop-down list, select a Channel.
Click Next>>.
