Infrastructure-Client mode

In Infrastructure-Client mode, Wireless Gateway only supports enrollee's role. If users click "Start PIN", click "Start
PBC", or press the physical button on Wireless Gateway, it will start to seek WPS AP. Once users apply the same me-
thod on registrar side, Wireless Gateway will receive the wireless profile upon successfully doing the registration
protocol. Then Wireless Gateway will associate with an AP.

Instructions of AP's and Client's operations

At this state, AP is transparent to users. If users want to configure a station or any device that is capable of being an
enrollee, they have to enter device's PIN into an external registrar and choose an appropriate wireless profile. After
the PIN is entered, the external registrar will inform AP this event. AP then conveys the encrypted wireless profile
between the device and the external registrar. Finally, the device will use the wireless profile and associate with AP.
However, the device may connect to other APs if the wireless profile does not belong to the proxy AP. Users must
carefully choose the wireless profile or create a wireless profile on an external registrar.

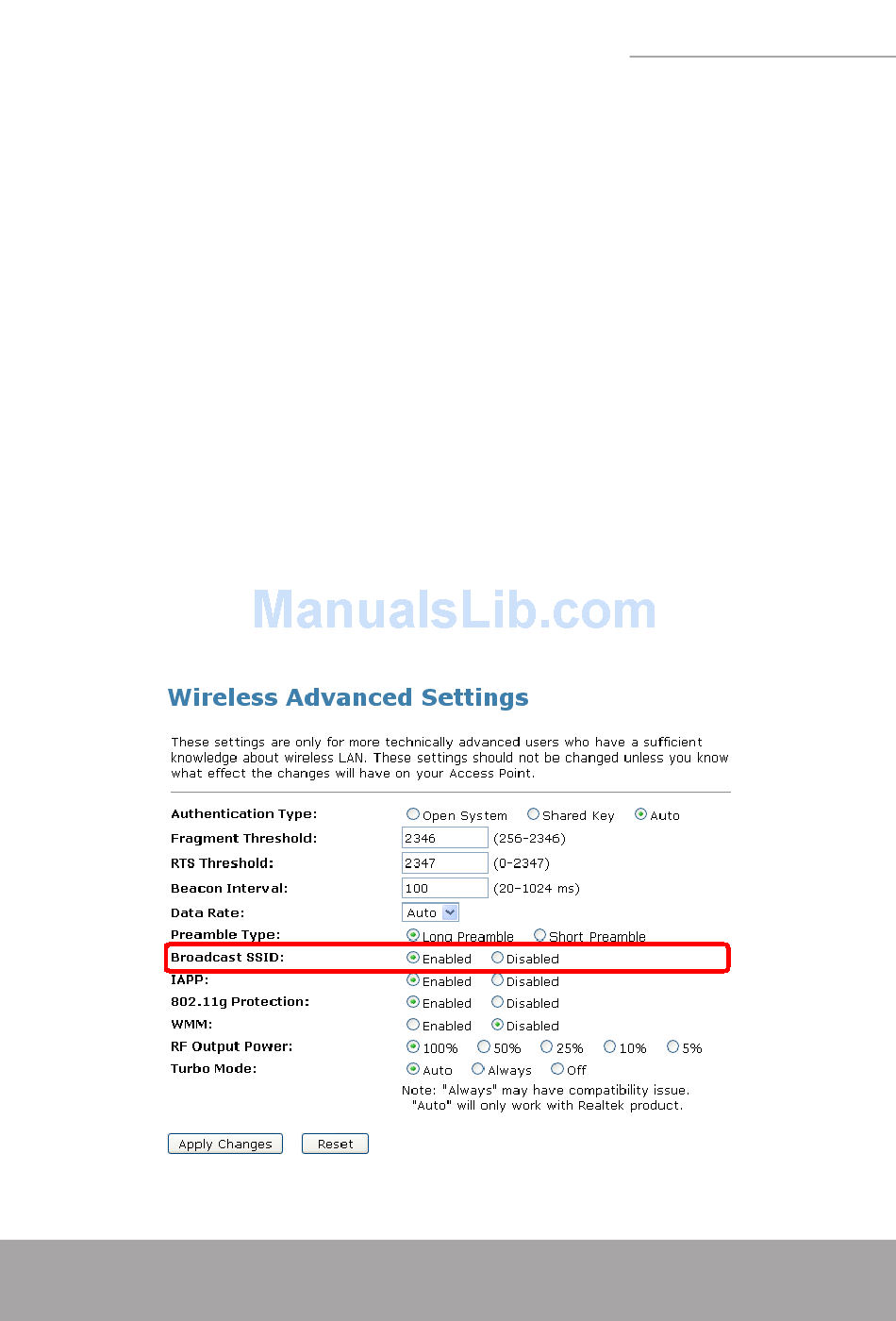

Wireless Advanced Settings page

Users need to make sure the "Broadcast SSID" file is set to "Enabled". Otherwise, it might prevent WPS from working
properly.
