Connecting your device

This chapter provides basic instructions for connecting the Wireless Gateway to a computer or LAN and to the
Internet.
In addition to configuring the device, you need to configure the Internet properties of your computer(s). For more
details, see the following sections:
Configuring Ethernet PCs
This chapter assumes that you have already established a DSL/Cable service with your Internet service provider
(ISP). These instructions provide a basic configuration that should be compatible with your home or small office ne-
twork setup. Refer to the subsequent chapters for additional configuration instructions.
Connecting the Hardware
This section describes how to connect the device to the wall phone port, the power outlet and your computer(s)
or network.
Before you begin, turn the power off for all devices. These include your computer(s), your LAN hub/switch (if
applicable), and the Wireless Gateway.
WARNING
The diagram below illustrates the hardware connections. The layout of the ports on your device may vary from the
layout shown. Refer to the steps that follow for specific instructions.
Function
Press this button for 5 seconds to Disable or Enable Wireless LAN.
Press this button for 3 seconds to Enable WPS function.
WLAN Router

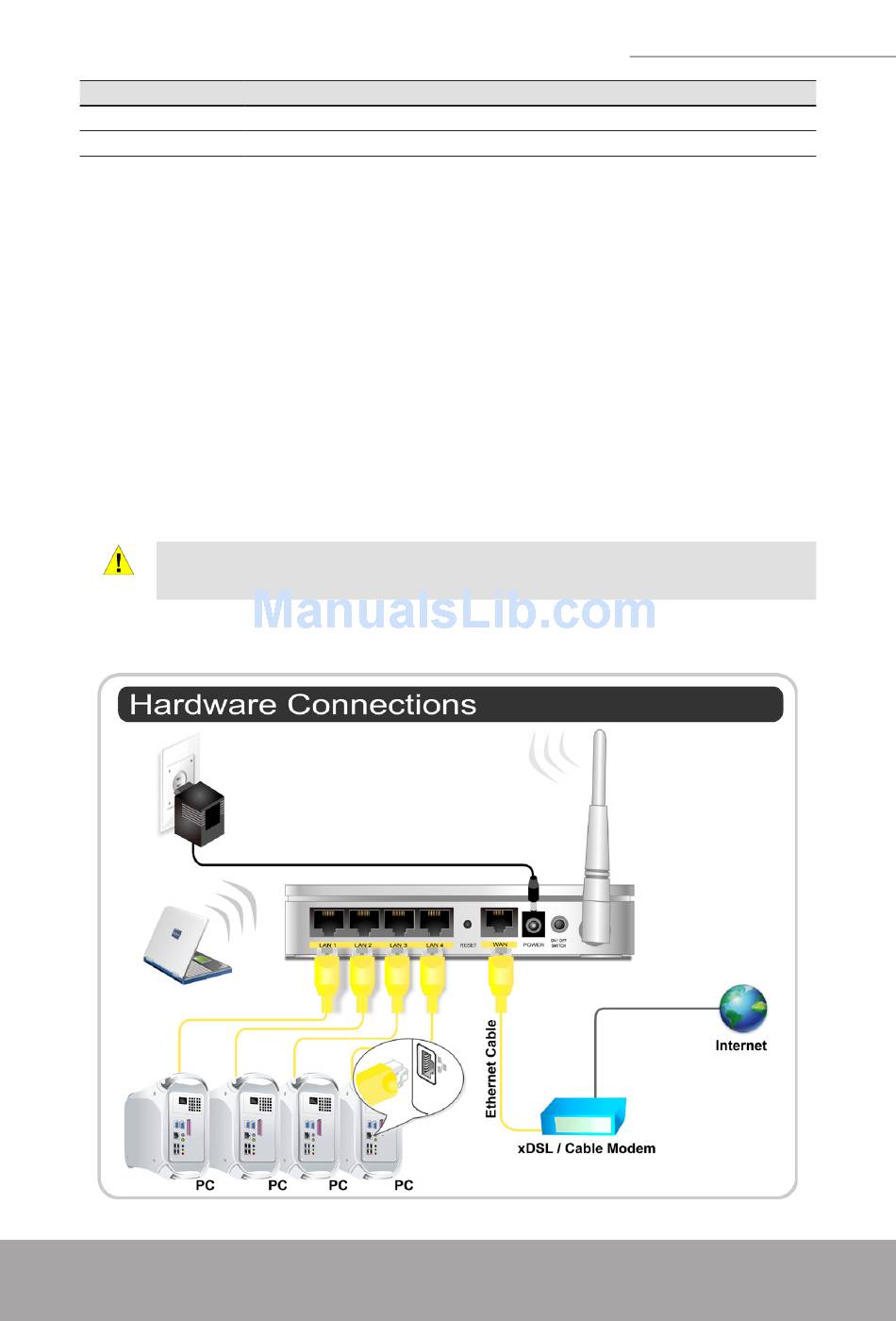

Overview of Hardware Connections
