7. To establish matrix view, follow the steps below.
A.

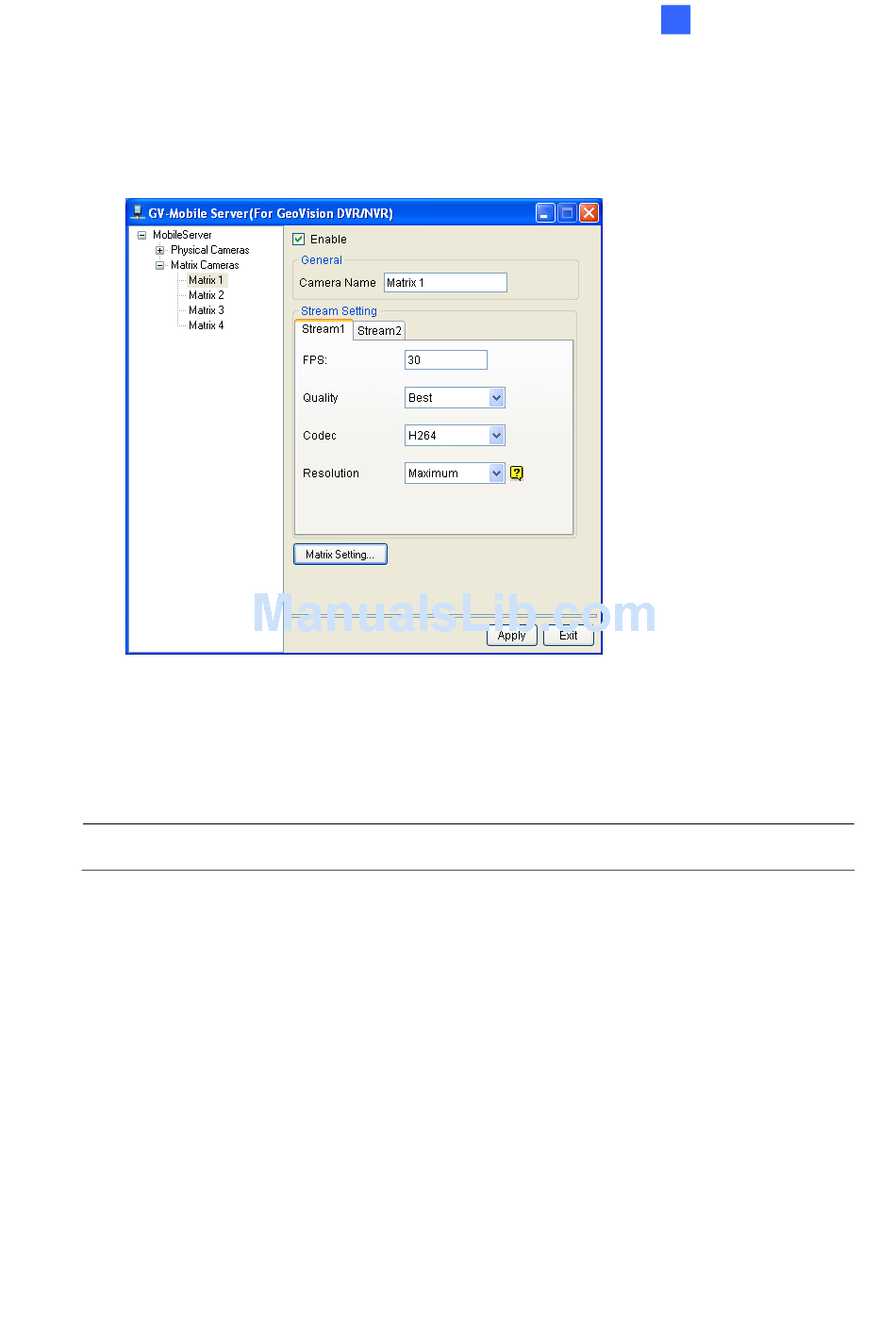

On the GV-Mobile Server window, select a Matrix number from the device tree. This
window appears.
B.
Type the frame rate in the FPS field and select a Quality and Resolution using the
drop-down lists. The maximum resolution supported for streaming is 1.3 M.
C.
Select H.264 for Codec.
Note: The GV-IP Decoder Box supports Stream 1 and H.264 codec only.
Figure 2-23
Getting Started
2
25
