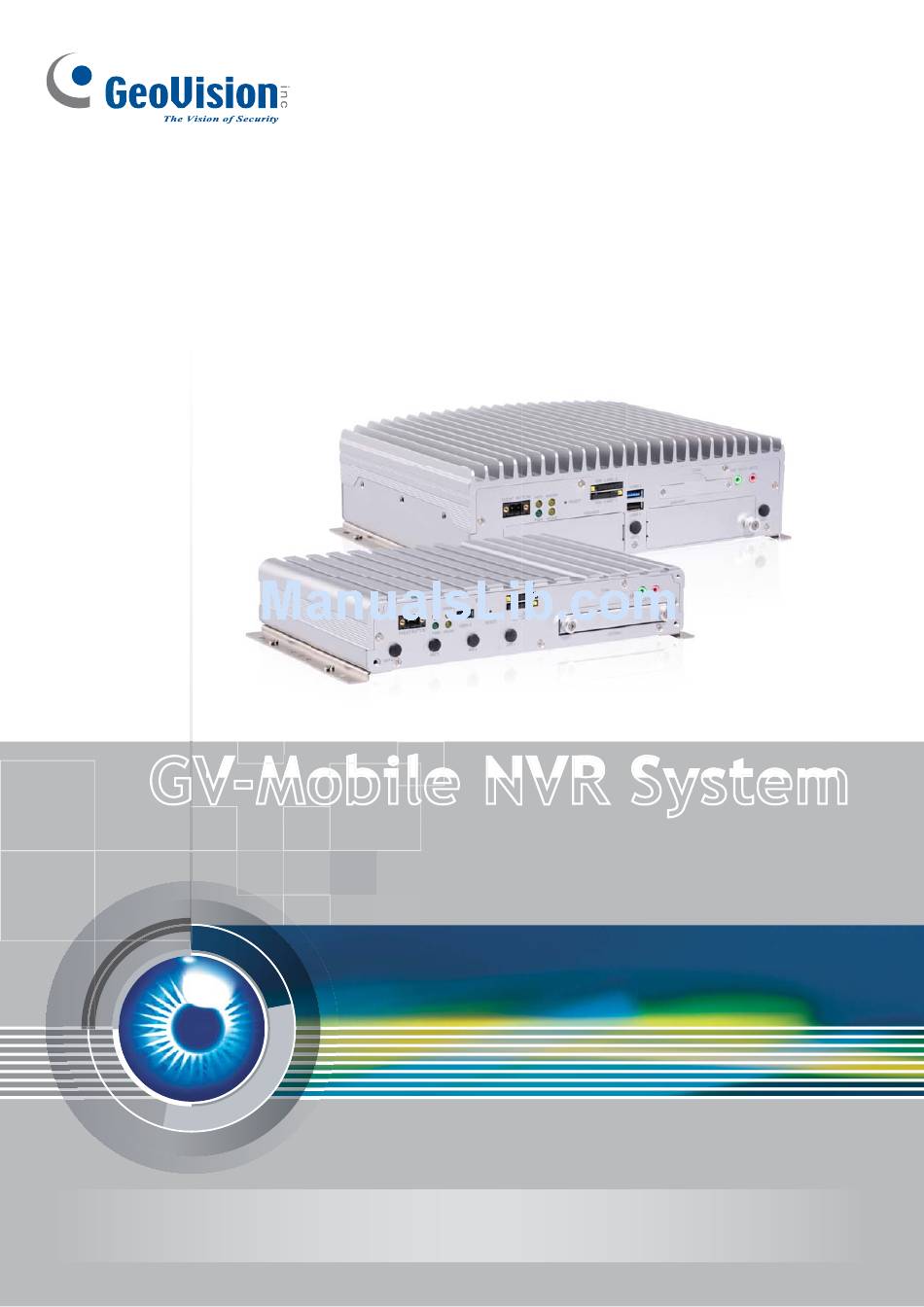

Quick Start Guide
Quick Start Guide
GV-Mobile NVR System
Thank you for purchasing GV-Mobile NVR System. This guide is designed to assist the new user in getting immediate results
from the GV-Mobile NVR System. For advanced information on how to use the GV-Mobile NVR System, please refer to
GV-Mobile NVR System User's Manual (GV-Desktop < Program button < User Manual).
The Vision of Security
2014/09
English
MBNVR-QG-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV-MNVR1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for GeoVision GV-MNVR1000

  • Page 1 Quick Start Guide Quick Start Guide GV-Mobile NVR System The Vision of Security Thank you for purchasing GV-Mobile NVR System. This guide is designed to assist the new user in getting immediate results from the GV-Mobile NVR System. For advanced information on how to use the GV-Mobile NVR System, please refer to GV-Mobile NVR System User's Manual (GV-Desktop <...
  • Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.
  • Page 3: Table Of Contents

    ..................8 2. Getting Started Interface Connection....................8 Turning on and off the Power ...................10 Installing the Storage Drive ..................13 2.3.1 GV-MNVR1000 System.................13 2.3.2 GV-MNVR2100 System.................14 Formatting the Storage Drive ...................15 Configure the IP Address ..................18 2.6 Exiting to Windows ....................21 ............
  • Page 4: Introduction

    1.1 Packing List 1. GV-Mobile NVR System 2. 3-pin Terminal Block (for ACC Connection and DC In) 3. HDD screw x 4 (for GV-MNVR1000 System) 4. HDD screw x 8 (for GV-MNVR2100 System) 5. GPS Antenna 6. GV-NVR Dongle for third-party IP Camera Connection (Optional)
  • Page 5: Software License

    1.2 Software License Free License 24 / 32 channels from GV-IP Devices Maximum License 24 / 32 channels from third-party IP devices Increment for Each 1 to 24 / 32 third-party IP cameras at an increment of 2 License Optional Combination Dongle Type External...
  • Page 6: Options

    1.4 Options Optional devices can expand your GV-Mobile NVR System’s capabilities and versatility. Contact your dealer for more information. GV-IO Box 4 provides 4 inputs and 4 relay outputs, and supports GV-IO Box (4 Ports) both DC and AC output voltages. A USB port is provided for PC connection.
  • Page 7: Overview

    1.5 Overview 1.5.1 Front View GV-MNVR1000 System GV-MNVR2100 System...
  • Page 8 No. Name No. Name Event Button (Not Functional) Audio Line Out Port HDD Status LED Audio Microphone In Port WWAN LED 2.5” HDD/SSD Slot USB 3.0 Port Antenna Port Reset Button WLAN LED SIM Card Slot Power Status LED CFast Card Slot USB 2.0 Port Note: The WLAN WiFi and WWAN 3G / 4G module is optional.
  • Page 9: Rear View

    1.5.2 Rear View GV-MNVR1000 System No. Name No. Name Audio Microphone In Port DC Power Output (Not Functional) Gigabit Ethernet Port x 2 DC 10 V - 35 V Power Input VGA Output GPS Antenna Port USB 2.0 Port x 2...
  • Page 10 GV-MNVR2100 System No. Name No. Name Gigabit Ethernet Port x 2 DC 10 V - 35 V Power Input Audio Microphone In Port Antenna Port x 3 USB 3.0 Port MCU DIO Port (Not Functional) DisplayPort Output COM Port x 3 VGA Output USB 2.0 Port GPIO Terminal Block (Not Functional) 14...
  • Page 11: Getting Started

    2. Getting Started 2.1 Interface Connection This section describes the equipments required to operate the GV-Mobile NVR System. Here we use the GV-MNVR2100 System for example. Rear Side HDD/SSD x 2 Front Side 1. There are two options for connecting the power. Connect the GV-Mobile NVR System to the vehicle’s power battery and ACC wire using the supplied 3-pin terminal block.
  • Page 12 Optionally purchase a power adapter from GeoVision. See 2.2 Turning on and off the Power. 2. Use the VGA cable or the DisplayPort cable to connect the unit to the monitor. Note: The GV-Mobile NVR System supports dual-monitor display. You can connect two monitors by using the VGA connector and DisplayPort.
  • Page 13: Turning On And Off The Power

    2.2 Turning on and off the Power The GV-Mobile NVR System is designed to connect to the vehicle’s ACC wire. However, you can optionally purchase a power adapter (AC 100 ~ 240 V) from GeoVision for power connection. 2.2.1 Connecting to the ACC Wire To turn on the GV-Mobile NVR System, connect the vehicle’s ACC and power wires to the...
  • Page 14 Using Rocker Switch to Simulate ACC Ignition For quick control of turning on or off the GV-Mobile NVR System, you can install a rocker switch to the 3-pin terminal block with the optional power adapter. For the connection and operation, follow the steps below. Rocker Switch 1.
  • Page 15 4. Press the rocker switch to turn on the GV-Mobile NVR System without operating on the Windows desktop. Once the rocker switch is on, the GV-Mobile NVR System will be powered on about 3 seconds later. 5. To turn off the GV-Mobile NVR System, press the rocker switch again. Note: After the power is on, the GV-Mobile NVR System will run a series of self-tests, and a series of messages may be displayed as the various hardware and software subsystems are activated.
  • Page 16: Installing The Storage Drive

    The GV-Mobile NVR System uses SATA hard drive / SSD for video data storage. Before recording, be sure to install the storage drive. .3.1 GV-MNVR1000 System 1. Loosen the thumb screws on the HDD/SSD slot and pull out the drive drawer.
  • Page 17: Gv-Mnvr2100 System

    2.3.2 GV-MNVR2100 System 1. Loosen the thumb screws on the HDD/SSD slots and remove the covers. 2. Press the release latch and pull out the drive drawer using the drawer handle that pops out. Release Latch 3. Insert the storage drive into the drive drawer with the SATA data and power connector facing towards the end.
  • Page 18: Formatting The Storage Drive

    2.4 Formatting the Storage Drive After installing HDD / SSD to your system, you will need to format the storage dr ive before recording. 1. On the GV-Desktop, click the Programs button, and select Disk Management. 2. Type the ID and password in the dialog box. The default ID and password are “0000”. 3.
  • Page 19 5. The default partition size is the same as the maxim um disk space. Make changes if necessary and click Next to continue. 6. Assign a drive path that is not in use by other devices and click Next to continue.
  • Page 20 7. Type a name in the Volume label box, ex. HDD1, and click Next to continue. When the formatting is complete, click Finish to close the wizard.
  • Page 21: Configure The Ip Address

    Configure the IP Address GV-Mobile NVR System supports remote monitoring, control and configuration over a network connection. The following default IP addresses will automatically be assigned.  Connection 1: 192.168.0.200  Connection 2: 192.168.0.201  Default Subnet Mask: 255.255.252.0 The local area connections listed correspond to the Ethernet ports as shown below: Local Area Connection 1 Default IP: 192.168.0.200...
  • Page 22 3. Under Network and Internet, click View network status and tasks. 4. Under Connections, select the Local Area Connection you want to configure. 5. Select Internet Protocol Version 4 (TCP/IPv4), and select Properties.
  • Page 23 6. Select Use the following IP address and type the new IP information in the fields. Or select Obtain an IP address automatically to enable dynamic IP address. 7. Click OK to finish the setting.
  • Page 24: Exiting To Windows

    2.6 Exiting to Windows The unit is protected by GV-Desktop that is limited to run the selected programs. If you need to exit to Windows desktop, follow the steps below. 1. On the GV-Desktop, click the Settings button, and type the valid ID and password. The default ID and Password are “0000”.
  • Page 25: Accessing Gv-Mobile Nvr System

    Accessing GV-Mob ile NVR System .1 Main Screen 1. Logout / Exit / Minimize 8. Start/stop screen rotation 2. Select screen divisions 9. Access remote applications Select a camera for full screen mode 10. Camera Name 4. Start/stop recording 11. Date / Time / Storage Space 5.
  • Page 26: Adding A Storage Drive To The Recording Path

    3.1 1 Adding a Storage Drive to the Recording Path Before recording, you need to add the formatted storage drive to the recording path. 1. On the GV-Desktop, c lick the Programs button and select Hot Swap HDD Tool. 2. If a storage drive is already inserted, right-click it in the MediaMan Tools window, select Add for recording and select the storage group from the drop-down list.
  • Page 27: Adding Ip Cameras

    3.1.2 Adding IP Cameras The following instructions are the setup procedure for adding an IP camera in the system. 1. On the main screen, click the Configure button , select System Configure a nd click IP Camera Install. 2. To automatically add an IP camera on the LAN, click Scan Camera. To m anually set up an IP camera, click Add Camera and follow the steps b elow.
  • Page 28 Dual Streams: Click the button to apply the default codec and resolution of the GV-IP  camera. Query: Use the current codec and resolution setting on the GV-IP camera.  Camera list: Select a camera number.  Port: Keep or mod ify the default video streaming port 10000.
  • Page 29: Renaming The Camera

    3.1.3 Renaming the Camera 1. Click on the main screen, click System Configure and select Camera Configure. 2. In the Camera Name field, type a new name for the camera. 3. Click OK. 3.1.4 Choosing Recording Mode You can set each camera's recor ding mode individually for Motion Detection, Round-the-Clock or Day-Night.
  • Page 30: Setting Up A Recording Schedule

    3.2 Setting up a Recording Schedule You can program recording to turn on and off at a specific time each day. 1. Click on the main screen, and select Schedule Edit. . Select or enter the Start and End time of the schedule. .
  • Page 31: Playing Back Video

    3.3 Playing Back Video You can play back video recorded during a particular date and time. 1. Click on the main screen, and select Video/Audio Log. 2. Select the camera you wish to view. 3. Select a date folder from the date tree. 4.
  • Page 32: Playback Controls

    3.3.1 Playback Controls 9 10 11 Description Description Rewind to Beginning Speed up/down Frame-by-Frame Reverse Zoom in/out Rewind A to B Playback Stop Frame-by-Frame / Real Time Playback Play Playback Scroll Frame-by-Frame Forward Audio on/off Forward to End Using the Zoom ...
  • Page 33 6. Enter the Start Time and End Time for backup. 7. Select the desired camera(s) for backup. The number of video and audio files of each camera is indicated respectively, e.g. “Camera 3 39+0” means the camera 3 has 39 video files and 0 audio file.
  • Page 34: Playing Backup Files

    3.4.1 Playing Backup Files Open the backup folder, run EZViewLog500.exe, and then follow the instructions in the Play Back Video section.
  • Page 35: System Restoration

    4. System Restoration You can restore preinstalled files once they are damaged by running the recovery from the hidden partition. To restore the operating system and all preinstalled software, follow the steps below. Note: After recovery, you need to re-install all settings and passwords. But the recovery will not delete your recording files saved on the GV-Mobile NVR System since it only reformats the partition C and all of your files are still stored on other partitions.
