7. To add a third-party IP camera, follow the steps below.
A.

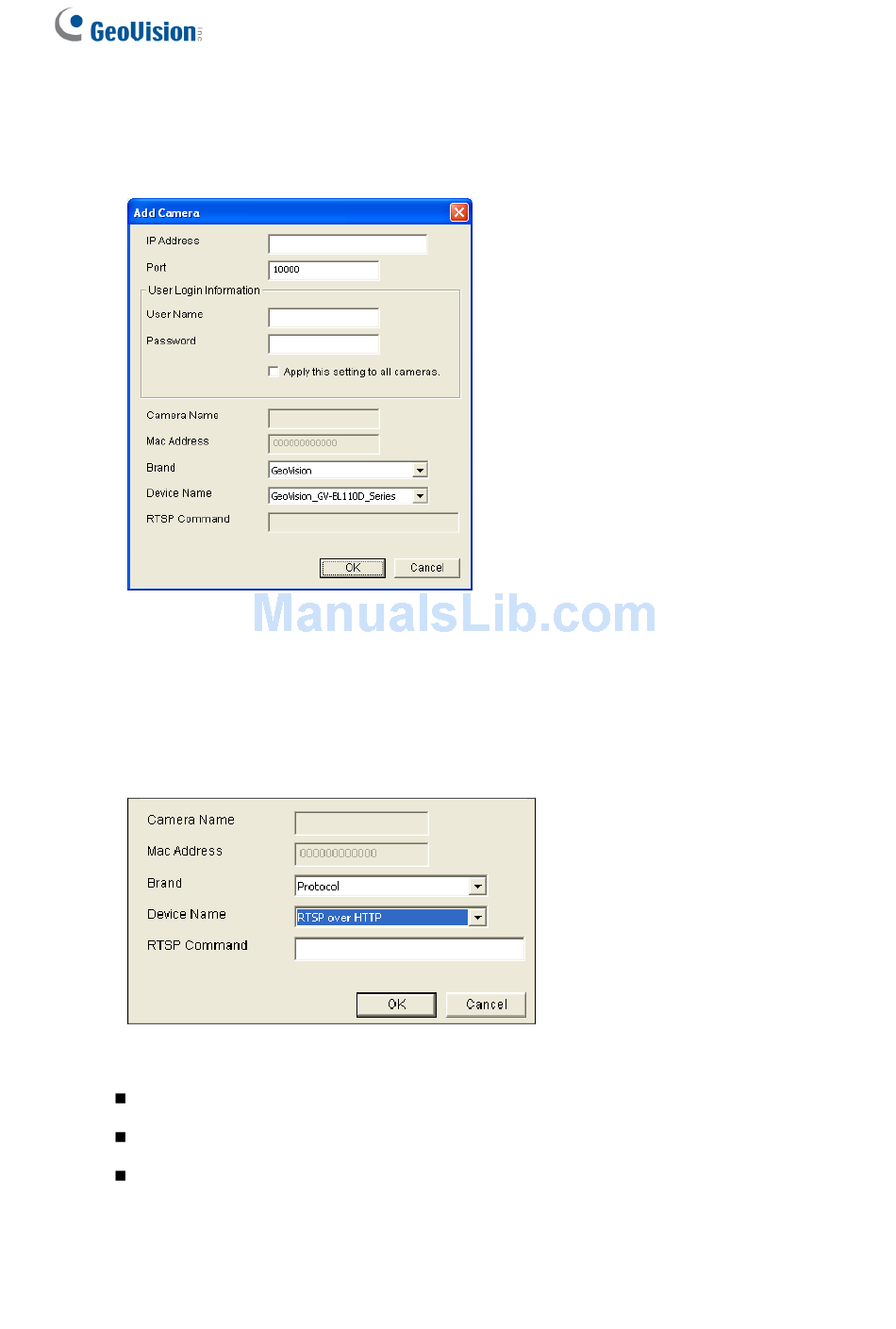

Click Tool on the Video Connection Setting window, and select Add Camera. This
dialog box appears.
B.
Type the IP address, user name and password of the device.
C.
Select Protocol for Brand and one of the following protocol for Device Name. Type
the RTSP command if required. Refer to your third-party IP camera's manual for this
information.
ONFIV: Select this protocol if your camera adheres to ONVIF.
PSIA: Select this protocol if your camera adheres to PSIA.
RTSP over HTTP: The RTSP protocol uses an HTTP port for data streaming
from the IP camera.
20
Figure 2-16
Figure 2-17
