Racelogic VBOX 4 ADAS Bluetooth Pairing Manual

Bluetooth Pairing
Information on how to perform Bluetooth pairing with VBOX 4 ADAS.

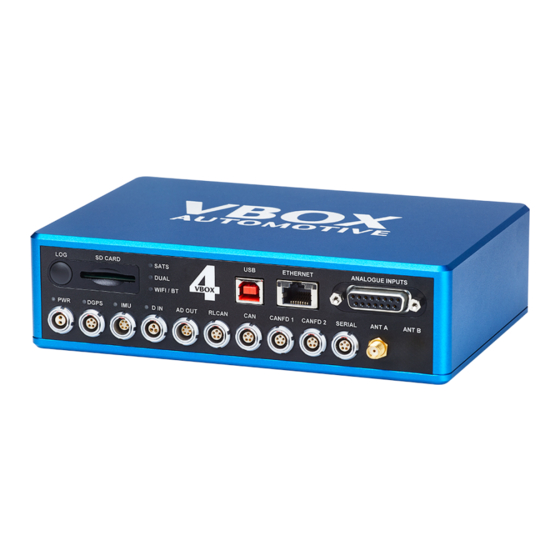

The VBOX 4 units come equipped with a Bluetooth radio that lets you configure the VBOX unit remotely, along with the
remote output of real-time VBOX serial data at the full 100 Hz data rate, to any Bluetooth-capable PC or data logger.
The VBOX unit will connect to the computer via SPP (serial port profile). You can do this as a secured or
unsecured connection.
1. Open the Bluetooth settings on your computer/tablet.
Note: If you are using Windows 11, you must make sure that the Bluetooth devices discovery setting is set
to Advanced for the VBOX unit to be discoverable.
Go to Settings -> Bluetooth & devices -> View more devices -> Device settings -> Bluetooth
devices discovery.
2. Add a device.
3. Select your VBOX 4 unit from the list of available devices.
It will be named VB4 s/n :0XXXXX, where XXXXX is the serial number on your unit.
4. If you are using a secured connection you must enter the pairing code: 1234
5. When the unit has paired to your computer/tablet, open VBOX Setup.
6. Select the relevant COM port from the Port dropdown menu.
