Torque Specifications For Installation - Danfoss TripleLynx Installation Manual

5. Technical Data

5.5. Torque Specifications for Installation

5

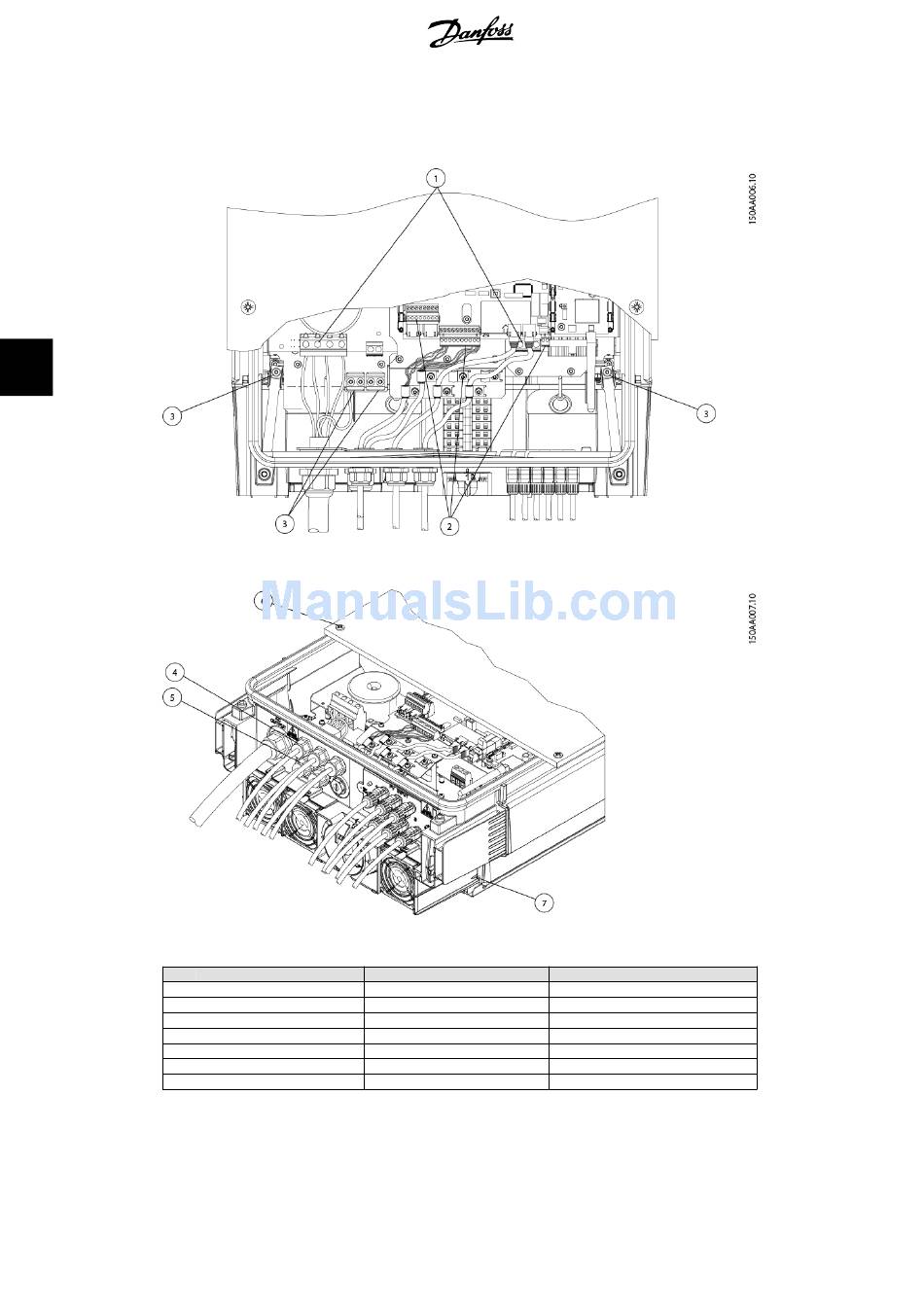

Illustration 5.5: Overview of Inverter with Torque Indications, 1-3
Illustration 5.6: Overview of Inverter with Torque Indications, 4-7
1
2
3
4
5
6
7
Table 5.6: Nm Specifications
28
Parameter Screwdriver
Terminal blocks (large) Straight slot 1.0 x 5.5 mm
Terminal blocks (small) Straight slot 1.0 x 5.5 mm
PE Straight slot 1.0 x 5.5 mm
M16 SW 19 mm
M25 SW 30 mm
Front screw TX 30
Locking screw TX 30
Tightening Torque
Min. 1.2 Nm
0.5 Nm
2.2 Nm
2-3 Nm
2-3 Nm
6-8 Nm
5 Nm
L00410309-07_02
