8238-16
System configuration
Identification

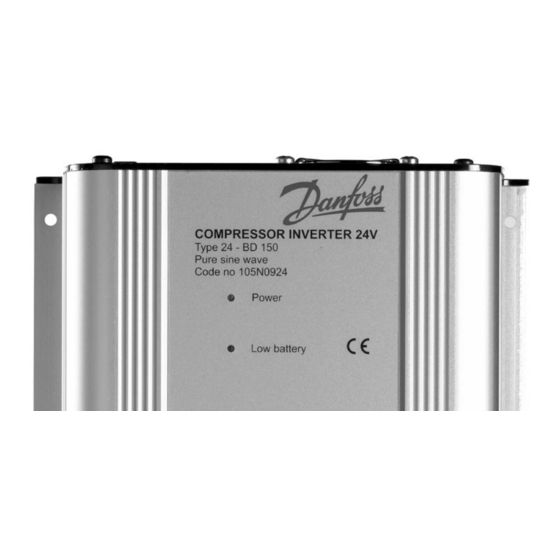

The identification of the code no is shown on the photo below.
• 12V DC units: 105N0912
• 24V DC units: 105N0924
Technical data
Electrical specifications
Input voltage 12V DC version
Input voltage 24V DC version
Output voltage
Frequency
Output wave form
Continuous output power
Standby consumption
No load power consumption 12V DC version
No load power consumption 24V DC version
Efficiency at full load
Environmental specifications
Ambient temperature during operation
Cooling
INSTRUCTIONS
Inverter for BD150F Compressors
Type 12 – BD150 code no 105N0912
Type 24 – BD150 code no 105N0924
12/24V DC - 230V AC
Battery
12 / 24V DC
BD150F
230V AC
or
300V DC
8527-2
12V DC nominal, range 10-15V DC
24V DC nominal, range 20-30V DC
230 V AC ±3%
50 Hz
Pure sine-wave
300 W
5 mW
8.5 W
12 W
> 90 %
–20°C to + 55°C
Static air cooling
CI.46.F1.02 10-2003
