3. Installation
3.2. Mounting the Inverter
3

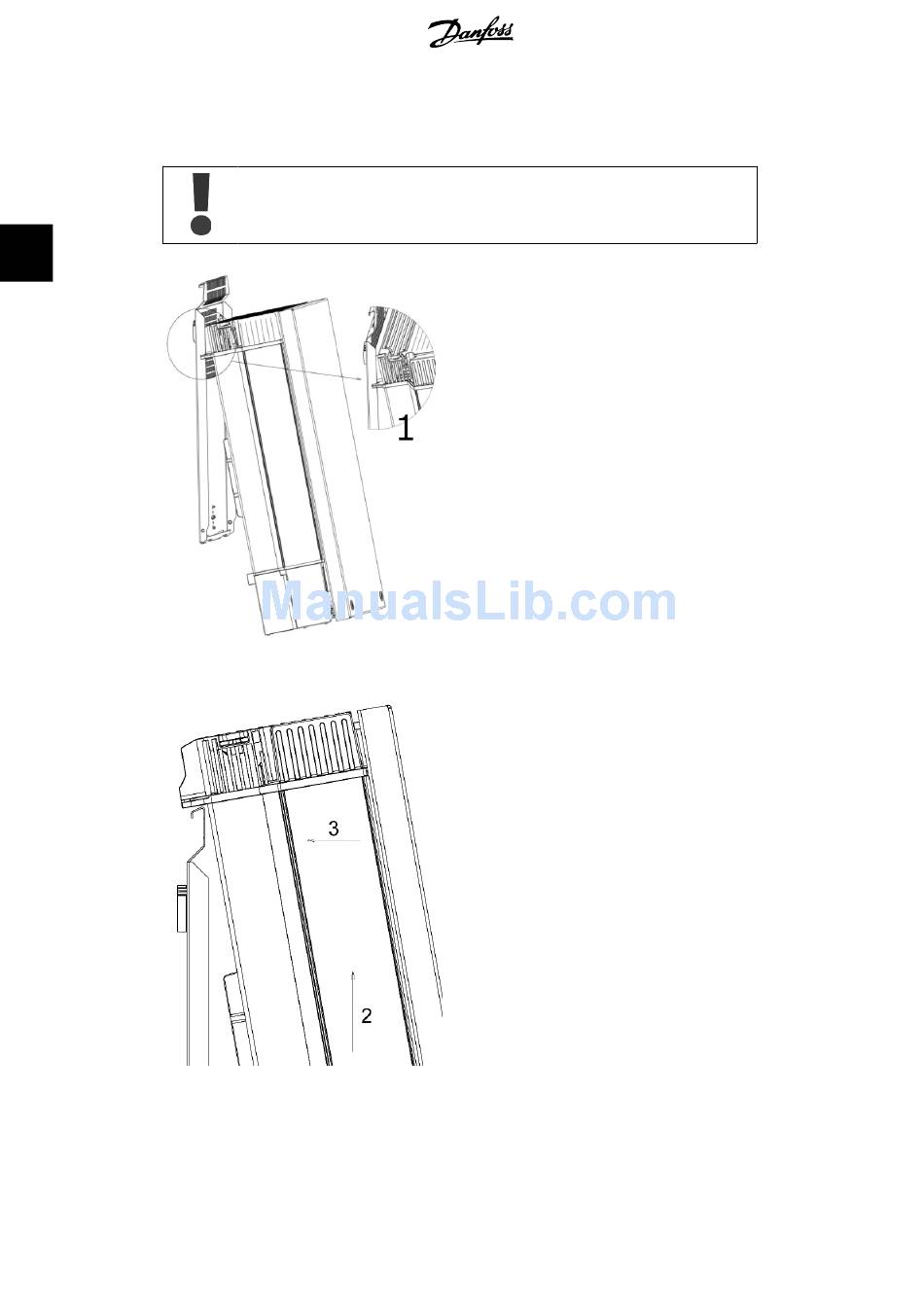

Illustration 3.3: Position the Inverter
Illustration 3.4: Secure the inverter
10
For safe handling of the inverter, two people must carry the unit, or a suitable
transport trolley must be used. Safety boots must be worn.
Tilt the inverter as shown in the illustration
and place the top of the inverter against the
mounting bracket. Use the two guides (1) at
the top plate to control the inverter horizon-
tally.
Lift the inverter upwards (2) over the top of
the mounting plate until the inverter tilts to-
wards the wall (3).
L00410309-07_02
